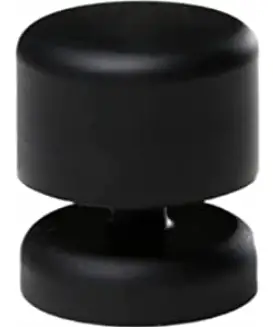

Calypso Ultrasonic Portable Solar and Mini
Notes:
- Firmware versions compatible: 2.0 and above
- All the measures are referenced to the orientation mark, in the side of the device. The mark is orientated to the bow of the boat.
- The device enters in low power mode at values <20% of the battery level
- The device enters in sleep mode at values <10% of the battery level

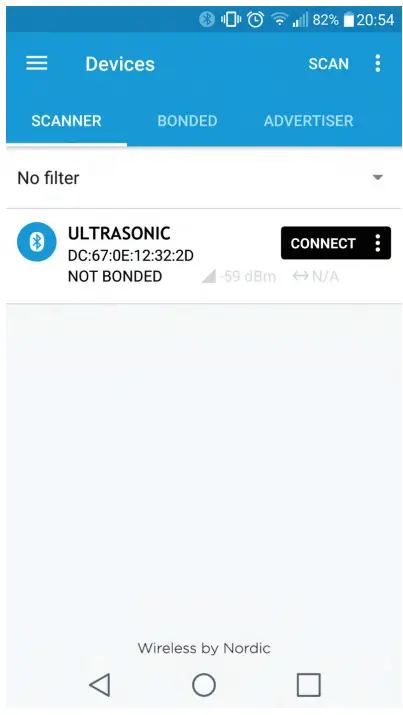

- Only Bluetooth advertising

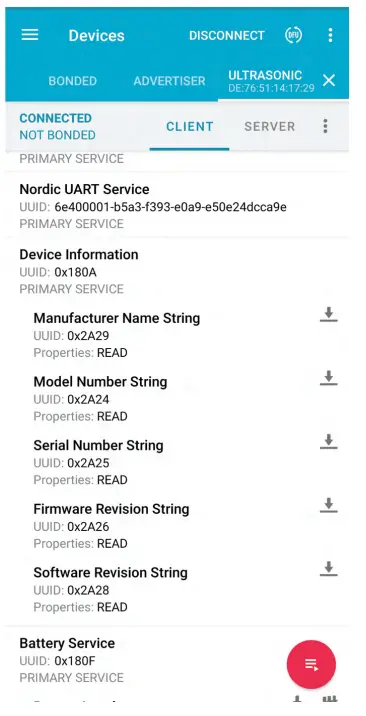

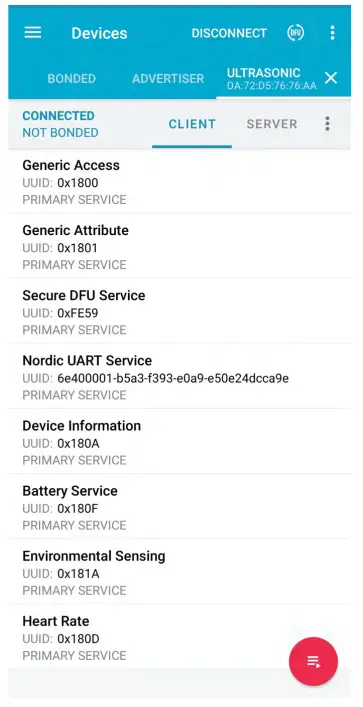

Device Information Service
- Service UUID: 0x180A
- 0x2A29 Manufacturer Name String (Calypso) 0x2A24 Model Number String (UP10) 0x2A25 Serial Number String (Not used) 0x2A27 Hardware Revision String (Not used) 0x2A26 Firmware Revision String (0.47) 0x2A28 Software Revision String (Not used)

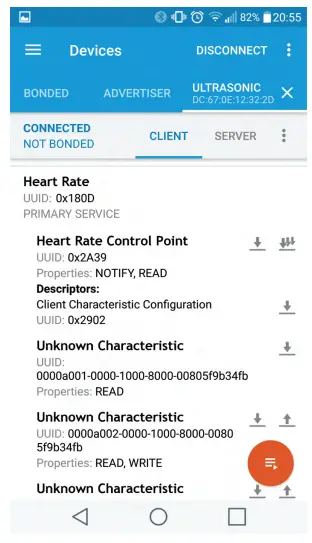

Data Service
- Service UUID: 0x180D
- Principal Characteristic: Notify
- Characteristics: UUID: 0x2A39
| Wind Speed | Wind Direction | Battery level |
| 39-02 | CE-00 | 09 |
| Hex to Decimal | Hex to Decimal | Hex to Decimal |
| 569 | 9 | |
| /100 | X10 | |
| 5.69 m/s | 206º | 90% |
| 0-40m/s (0.01m/s) | 0-360º (1º) | 0%-10% (10%) |
- Status Characteristic: Read
- UUID: 0xA001
- 0x00-> Sleep Mode, Only Advertising 0x02-> Normal Mode, All data rate and sensors available

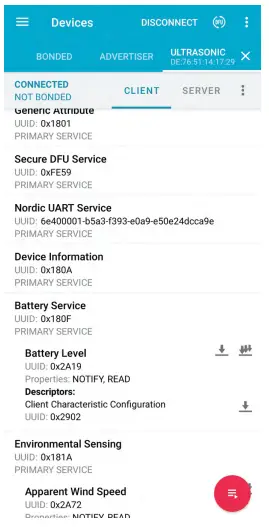

- Environmental Calculations: Notify & Read
- UUID: 0x181A
- Apparent Wind Speed
- UUID: 0x2A72
- Apparently Wind Direction
- UUID: 0x2A73

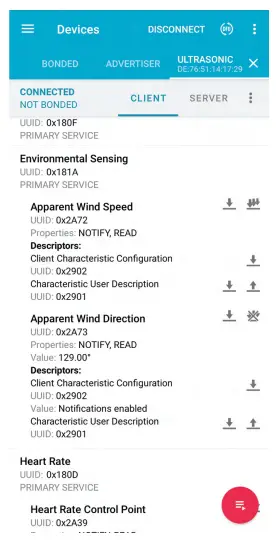

- Environmental Sensing Service
- (UUID 0x181A)
- Apparent Wind Speed (UUID 0x2A72)
- 2 bytes little-endian, unsigned short (uint16).
- Wind speed in m/s *100
- (example: 39 02 => 569 => 5.69m/s)
- Apparent Wind Direction (UUID 0x2A73) 2 bytes little-endian, unsigned short (uint16).
- The wind direction in degrees * 100
- (example: 78 50 =>20600 => 206º)
- (example: f8 75 => 30200 => 302º)
- ULTRASONIC Portable Solar & Mini
- Developer manual
