1002905 Eskina D LED Wall Lamp
Instruction Manual

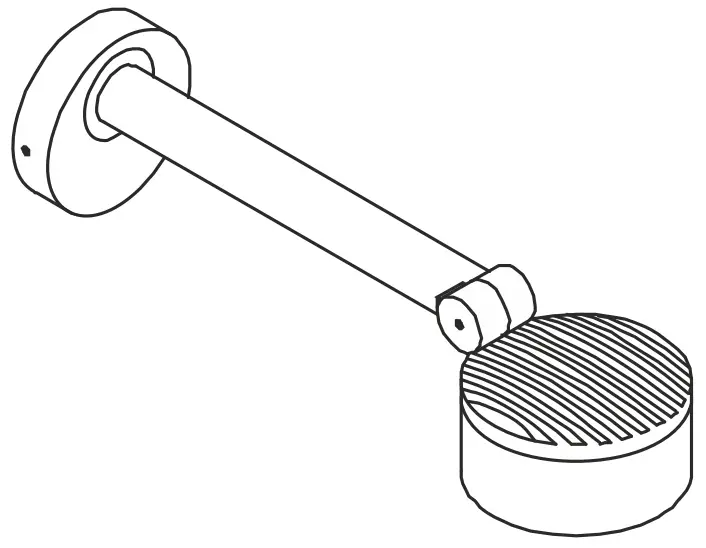

1002905 Eskina D LED Wall Lamp
INSTRUCTION MANUAL PART A Display Light
The installation requires expert knowledge and may be carried out only by an approved electrician under consideration of local and national regulations!

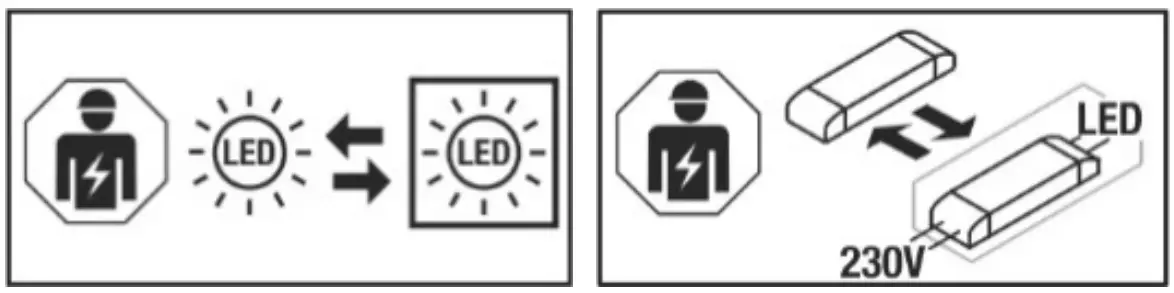

The light source is only exchangeable by a professional. The separate control unit is only exchangeable by a professional.
Technical Details are subject to change
Operating Manual PART B
Display Light
1002905
Read manual carefully and keep for further use!
Safety advices for installation and operation. Disregard may lead to danger of life, burning or fire!
Any works on the electrical connection only by electrician.
Do not alter or modify the product.
Do not fasten anything on the product.
Do not cover the product.
Operate only with intact protection glass or protection cover.
Take out of service when suspecting a defect or malfunction and contact your dealer or a qualified electrician.
Take measures that children get not harmed by the product.
Do not stare into the active light source.
Additional safety advices =
Use as directed
Safety class I (
) – Connection with protective conductor.
Operate only firmly fixed on an even surface.
Operate only on normal or not inflammable surfaces.
Do not strain mechanically or expose to strong dirt contamination.
IP65: Protection against dust (dust-tight) – Protection against jetted water from all directions.
Light Source
The light source of this luminaire may only be replaced by the manufacturer, an authorized service technician or a comparable qualified person.
This product contains a light source of the energy efficiency class E.
Reference control setting: 4000K
Care / Storage
Disconnect product from mains and let it cool down.
Clean external surfaces regularly with a slightly moistened (water) cloth.
Do not clean with pressure washer.
Openings providing aeration or drainage must be kept free.
The following influences may have unwanted effects on the product: acidic surrounding, high salt content in the air, cleaning agents, fertilizer, thawing salt, chemicals.
Store dry and clean.
Installation
Switch off mains / fixed connection cable!

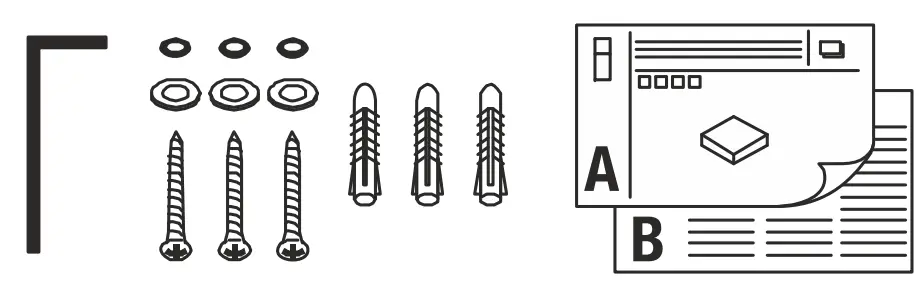

Use only described accessories.
Use only suitable fastening materials.
Only suited for wall surface mounting. Follow local regulations for outdoor installations.
Do not seal the product yourself (e.g. with silicone).
Install according to declared IP type.

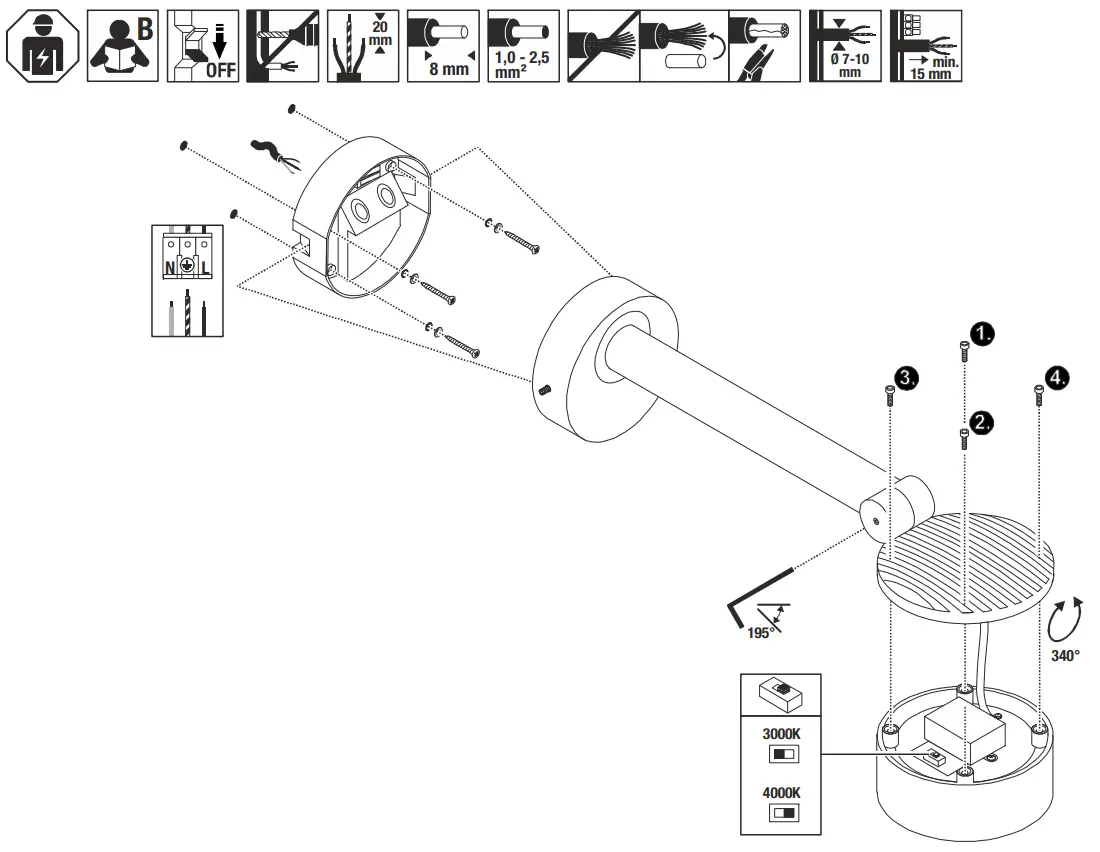

Install as shown in the figure.
Tighten screws evenly and cross-wise.
Suitable Dimmer: Trailing-edge phase dimmer (Code C). Note manufacturers instructions.
Electrical connection
Direct the fixed wiring with its complete insulation at least 15 mm into the housing.
Equip flexible wire ends with suitable wire ferrules!
Live conductor ➔Terminal L
Neutral conductor ➔ Terminal N
Protective conductor ➔ Earth terminal
Check secure fixation and proper function!
SLV UK
Unit E Chiltern Park Boscombe
Road, Bedfordshire LU5 4LT
© 30.08.2022 SLV GmbH, Daimlerstr.
21-23, 52531 Übach-Palenberg, Germany
Tel. +49 (0)2451 4833-0.
Made in China.
