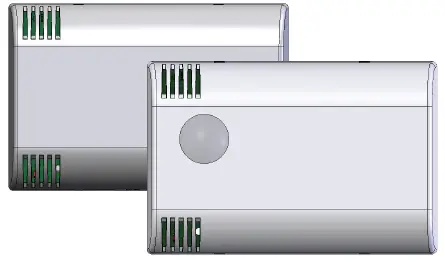

WATTECO Vaqa’O, Vaqa’O+ Indoor THR, Indoor TC

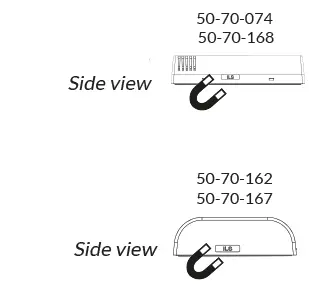

Start
Provision the device on your LoRaWAN® network with the keys available on a secure platform.

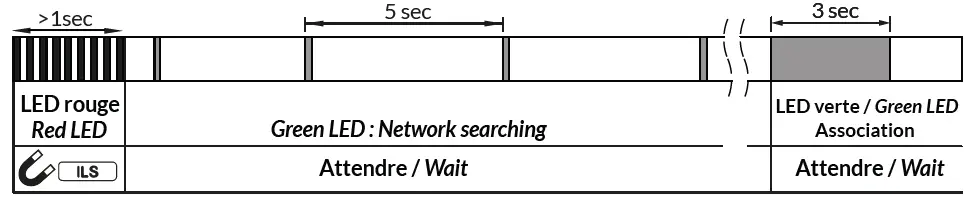

ON

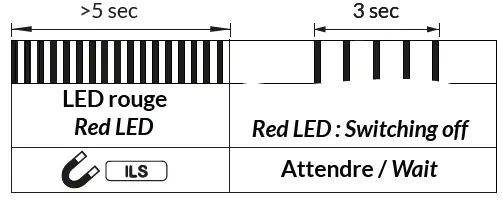

OFF
Video :
ON – OFF
https://youtu.be/SiErE0zy4Q0
Installation
Setting up

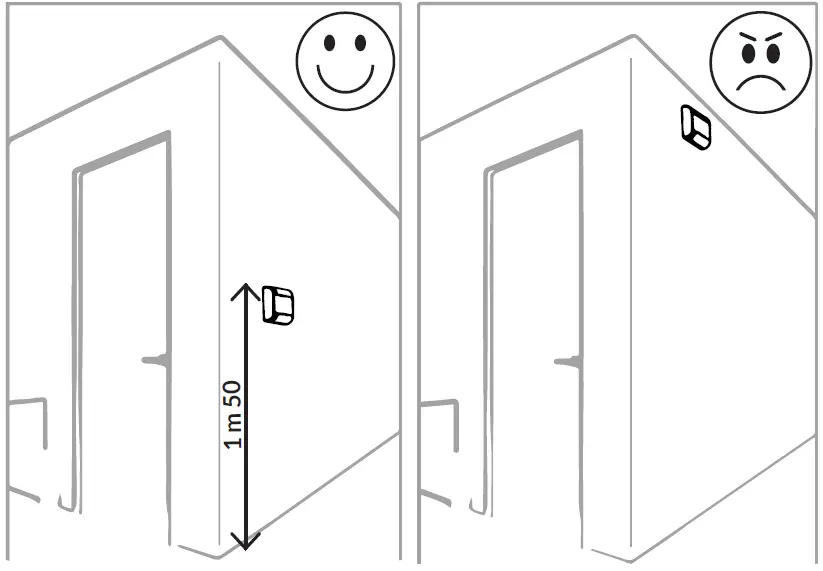

The installation should be done on a wall at a height of 1.5m from the ground. Away from windows, a heat source (sun, radiator, ventilation, intake).

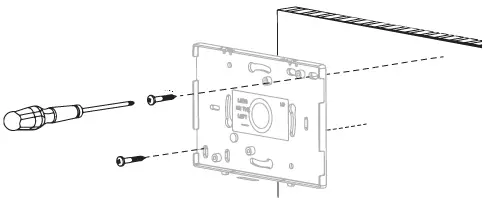

Wall mounting
The cover of the base must be removed with a flathead screwdriver.
Place the dowels and screw the base to the wall, in the direction indicated.

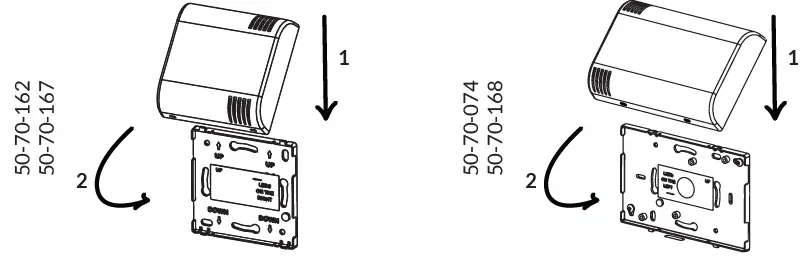

Installation of the cover
Radio propagation
For the sensor communicates correctly, the number of obstacles should be limited to avoid excessive radio attenuation.
Characteristics
| Reference | 50-70-168 | 50-70-074 | 50-70-162 | 50-70-167 |
| Class | A | A | A | A |
| Power Level | +14 dBm | +14 dBm | +14 dBm | +14 dBm |
| Humidity CO2 COV Atmospheric pressure Motion detection | x x x x | x x x x x x x | x x | x |
| Antenna | Internal | Internal | Internal | Internal |
| Casing materials | ABS UL94 V0 | ABS UL94 V0 | ABS UL94 V0 | ABS UL94 V0 |
| IP rating | IP30 | IP30 | IP30 | IP30 |
SITE SUPPORT
https://support.watteco.com/
CERTIFICATIONS
Watteco represented by JC LE BLEIS, declares that the radio equipment type 50-70-168/50-70-074/ 50-70-162/50- 70-167 is in conformity with Directive 2014/53/EU (RED). The full text of the EU Declaration of Conformity is available at the following web address: https://www.watteco.com/assistance/download-center/
Thanks for choosing WATTECO devices
