INNOVATVE LED LIGHTING
WEEE Number: 80133970
INSTALLATION INSTRUCTION

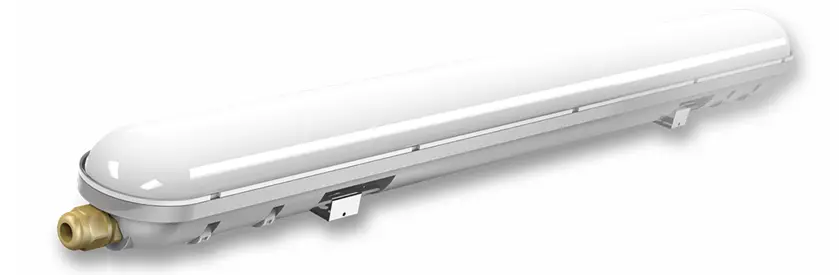

LED WATERPROOF LAMP
* 2 YEARS WARRANTY
Model | VT-6048 | VT-1248 | VT-1548 |
| Watts | 18 | 36 | 48 |
| Lumens | 1440 | 2880 | 3840 |
| BeamAngle | 120° | 120° | 120° |
| PF | 0.9 | 0.9 | 0.9 |
| CRI | >70 | >70 | >70 |
| IP Rating | IP65 | I P65 | I P65 |
| Operation Temperature | -20 to +40°c | -20 to +40°c | -20 to +40°c |
| Input Power | AC:200-240V,50/60Hz | AC:200-240V,50/60Hz | AC:200-240V,50/60Hz |
| Dimension | 600x76x66mm | 1200x 76x66mm | 1480x 76x 66mm |
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at your best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours of Daily operation. Usage of product for 24 hours a day would void the warranty. This product is warranted or manufacturing defects only.
WARNING!
- Please make sure to turn off the power before starting the installation.
- The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
- Installation must be performed by a qualified electrician.
 This marking indicates that this product should not be disposed of with other household wastes. | Caution, risk of electric shock. |
WARNING!
Turn the power off before inspection, installation, or removal.
Supply connection and another external wiring conductor shall be at least 1.0 mm2 and confirm to 60245IEC53C.
INSTALLATION INSTRUCTION
- Fasten the two ceiling clips to the installation surface.
- Open junction box cover of the body with a screwdriver. (DWG1)
- Link to a power source. (DWG2)
- Cover back to junction box cover.
- Install the lamp to the ceiling clips. (DWG3)
- Hanging installation type reference DWG4.

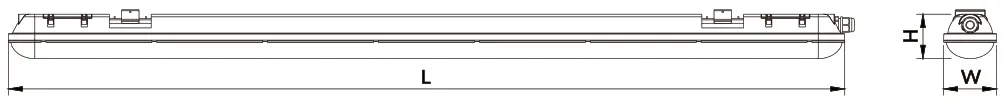

DIMENSION DIAGRAM:

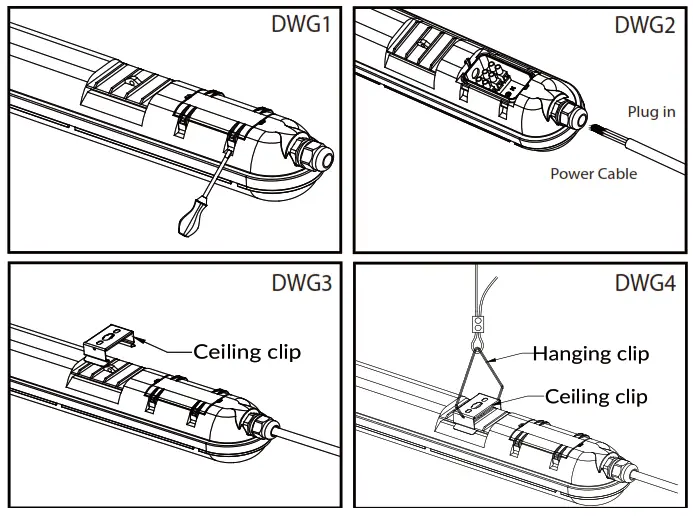

INSTALLATION DIAGRAM:
In case of any query/issue with the product, please reach out to us at: [email protected]
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
tac.eu
