oraimo OBS-04S Palm Ultra Portable Bluetooth Speaker User Manual

WELCOME GUIDE

For safety issue, the product remains low capacity during shipping. Please fully charge the product before initial use!

Please read this Guide carefully before using the product.

Package Contents

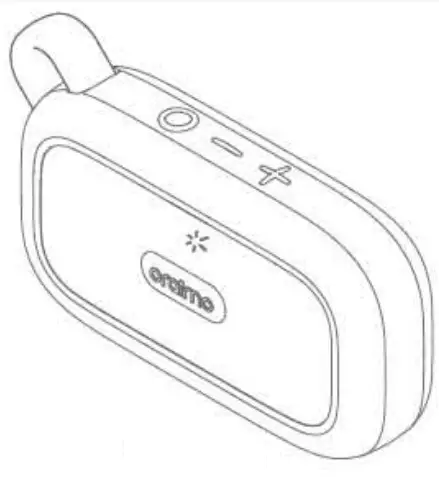

• Speaker x 1

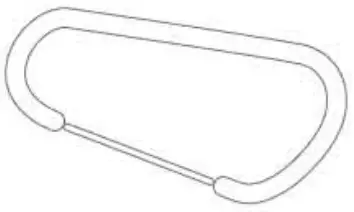

• Carabiner Clip x 1

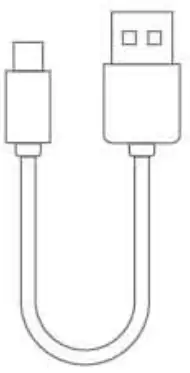

• Micro-USB Cable x 1

• Welcome Guide

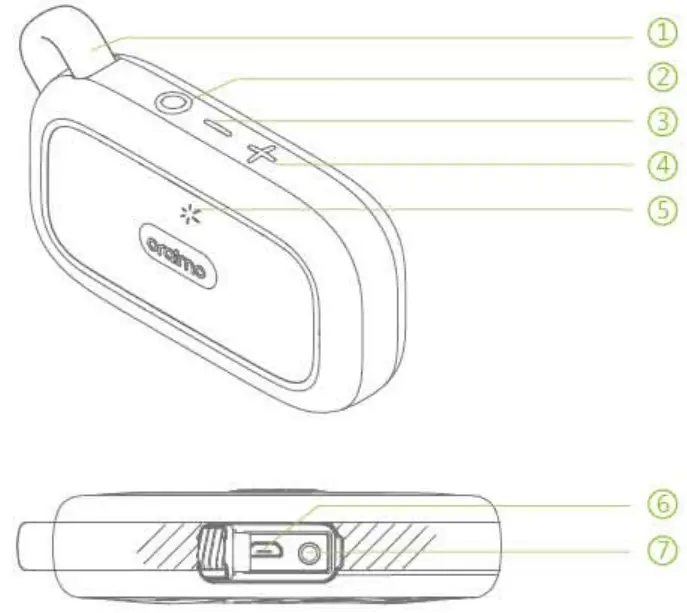

Product Overview

1. Carabiner Clip
2. Power / Play / Pause Button
3. Volume Down / Previous Track Button
4. Volume Up / Next Track Button
5. LED Indicator
6. Micro-USB Charging
7. 3.5mm Aux-in Port

Basic Product Specifications

Using Your Speaker

1. 0
   1-2″ Press & Hold
   Long press the Power button for 2 seconds

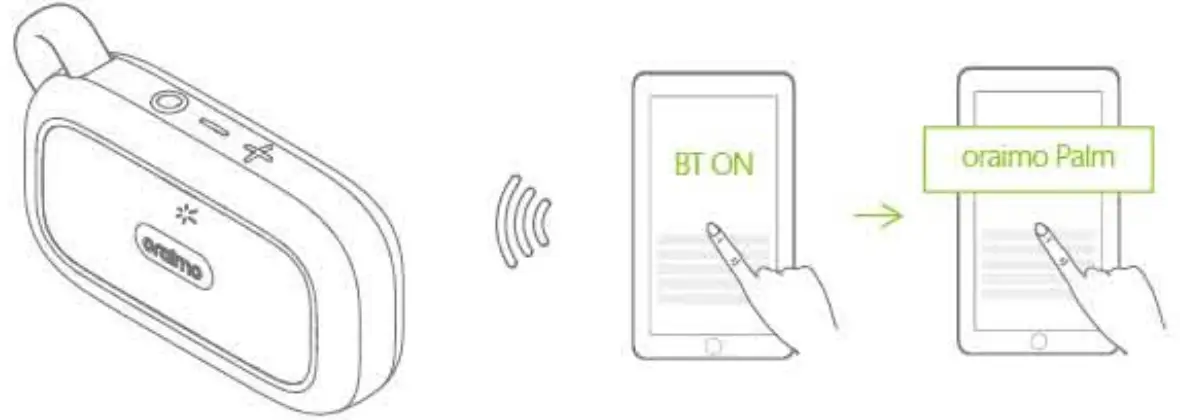

2. Pair with your device


   LED Indicator		Status
   	Flashing Red & Blue	Pairing mode
   	Flashing stops	Connected to a device

   • When turned on, the speaker will automatically connect to the last connected device if available. Otherwise the speaker will enter pairing mode.
   • Having a connection problem? Remove “oraimo Palm” from your device’s BT list and ensure the speaker is within 1 meter from the device. Start pairing process again. For the best sound quality, make sure there is a clear line of sight between the connected device and the speaker.

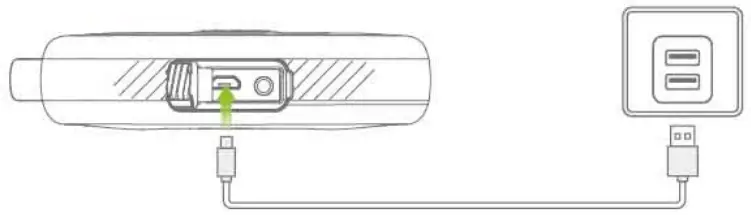

3. Charging the Speaker



   LED Indicator		Status
   	Steady red	Charging
   	Steady Blue	Full Charged

   • When the speaker is with low battery, audio notification will be heard.
   • Use the included Micro-USB cable to charge the speaker and charge the speaker fully before first use.
   • Disconnect your speaker from the charger when fully charged. Do not charge your speaker for extended periods.

Controls

Attention

• To preserve battery lifespan, fully charge at least once every 45 days.
• Use original or certified cables.
• Do not expose to chemical liquids.
• Do not disassemble.
• Avoid dropping.
• Avoid extreme temperatures

Trouble Shooting

Considerate Hints

1. Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or impair your hearing.
2. When encounter any fault during operation, please cut off the power supply and disconnect the USB cable to prevent further damage to the product or other components.
3. The wireless transmission range or connectivity could be affected by low battery power. In that case, please recharge immediately.

FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

WIRELESS SPEAKER
Model: OBS-04S
Hereby, ORAIMO TECHNOLOGY LIMITED.
Declares that this Wireless Speaker is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU.

Caution

1. Risk of explosion if battery is replaced by an incorrect type, dispose of used batteries according to the instructions.
   • disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
   • leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;
   • a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
2. The product shall only be connected to a USB interface of version USB2.0
3. Adapter shall be installed near the equipment and shall be easily accessible.
4. EUT Temperature:0 -45°C (Standalone),5-+40°C(VVith Parts).

Operating Frequency:
Bluetooth: 2402-2480MHz
Modulation mode: GFSK π/4-DQPSK

Eu Declaration Of Conformity

in accordance with
Annex VI of Directive 2014/53/EU of the European Parliament and of the Council

1. For the following Radio equipment:
   • Model: OBS-04S
   • Product: Wireless Speaker
   • Trade name or Brand: oraimo
   • Software / Hardware number: V1.0/V2.0
2. Name and address of the manufacturer or his authorised representative:
   • Manufacturer: ORAIMO TECHNOLOGY LIMITED
   • Address: FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31-35 SHAN MEI STREET FOTAN NT
3. This declaration of conformity is issued under the sole responsibility of the Manufacturer.
4. Object of the declaration (identification of the radio equipment allowing traceability; it may include a colour image of sufficient clarity where necessary for the identification of the radio equipment):
5. The object of the declaration described above is in conformity with the relevant Union harmonization legislation:
   Directive 2014/53/EU (RED)
6. References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:
   1. Article 3.1a Health: EN 62479:2010
   2. Article 3.1a Electrical Safety: EN62638-1:2014+A11:2017
   3. Article 3.1b: ELI EN 301 489-1 V2.2.3 (2019-11) ETSI EN 301 489-17 V3.2.4 (2020-09)
   4. Article 3.2: ETSI EN 300 328 V2.2.2 (2019-07)
7. Notified Body Name: Eurofins Electrical and Electronic Testing NA, Inc. Notified Body Number 0980 Notified Body Assessment Performed: Module B/C on Article 3.1a, 3.1b, 3.2 and 3.3 Technical File Identification Number: N/A
8. Where applicable, description of accessories and components, including software, which allow the radio equipment to operate as intended and covered by the EU declaration of conformity:
   User instructions are provided in the User Manual. The Software and Hardware versions are specified above.
9. Additional information:
   Referring to Article 10.2 of the Directive, this equipment is so constructed that it can be operated in all Member States, without infringing applicable requirements on the use of radio spectrum.
   Referring to Article 10.10 of the Directive, there are no restrictions on putting this equipment into service or of requirements for authorisation of use. Please refer to the User Manual for details.
   On behalf of:
   Manufacturer: ORAIMO TECHNOLOGY LIMITED
   Address: FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31-35 SHAN MEI STREET FOTAN NT
   (place and date of issue): Shenzhen, 2021-11-16
   (name, function): Yiting,Luo/ Manager
   (signature):

Warranty Certificate

Name: ______________________
Address: ______________________
Tel.No: _______________________
Date of Purchase (dd/mm/yy): ________________________
Store name: ______________________

Warranty Terms & Conditions

• All quality-related defects on items sold directly by oraimo or oraimo’s authorized resellers are covered by an extensive warranty, starting from the date of purchase.
• oraimo’s limited warranty is restricted to the country of purchase. The limited warranty is void on items taken outside the country they were originally bought in or shipped to directly from an authorized online purchase.
• This warranty covers only original oraimo products. It is not applicable to normal wear and tear, or any defects arising from damage caused by misuse of this product.
• Warranty is for the primary product only nor transferable. Any free additional product(s) are not covered in this warranty.
• If the product fails regardless of usage in compliance with the instruction manual and other written precaution, replacement will be provided free of charge.
• To receive replacement, bring the warranty certificate and the product itself to the store from where you have purchased the product.

Customer Service

365 DAYS WARRANTY

Email: [email protected]
