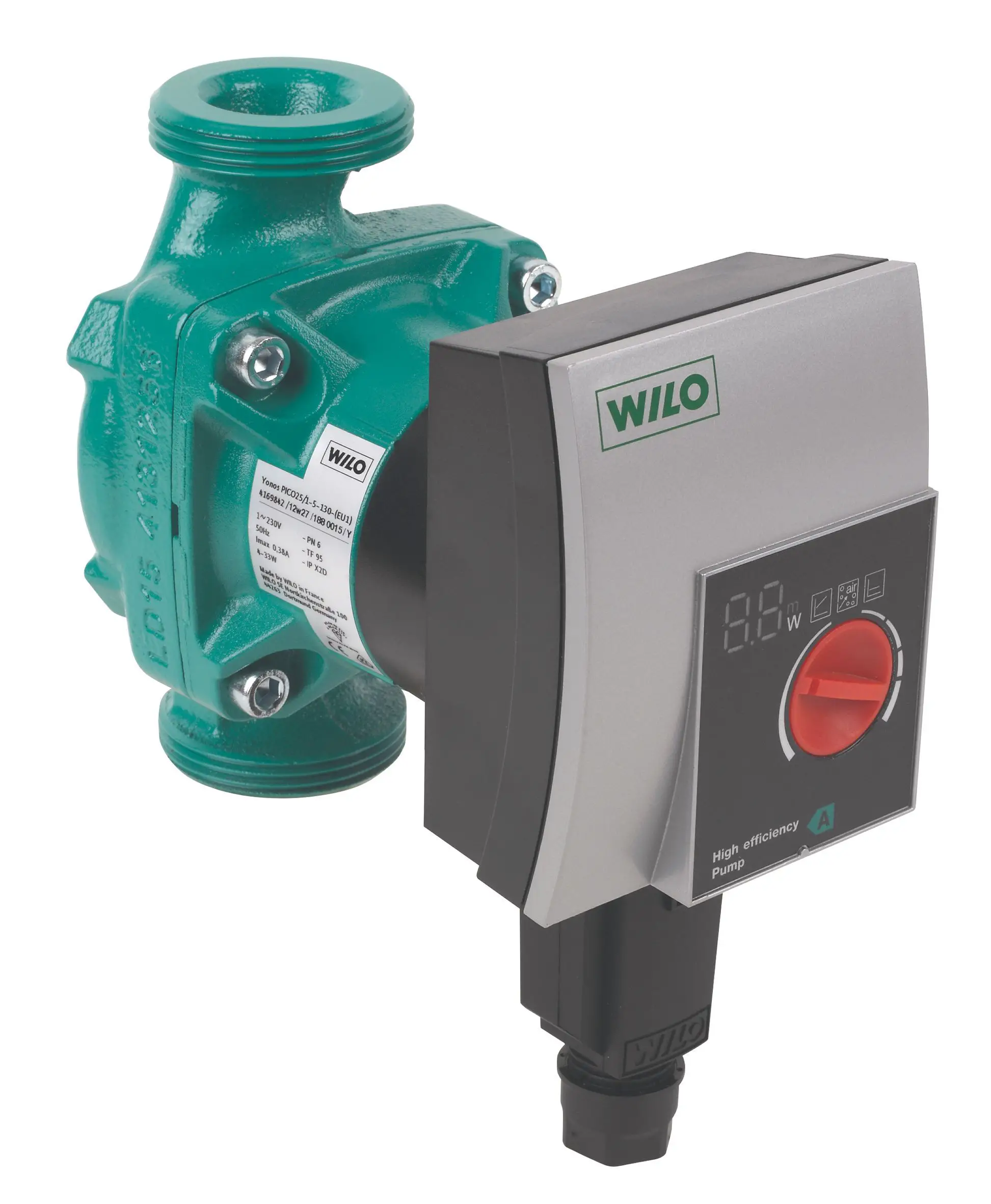

Wilo 230V Glandless Circulating Pump
This document is a quick guide, the reference document is the complete instruction manual available at www.wilo.com/yon-os-pico/om or in printed form at the address mentioned on the back page of this manual.

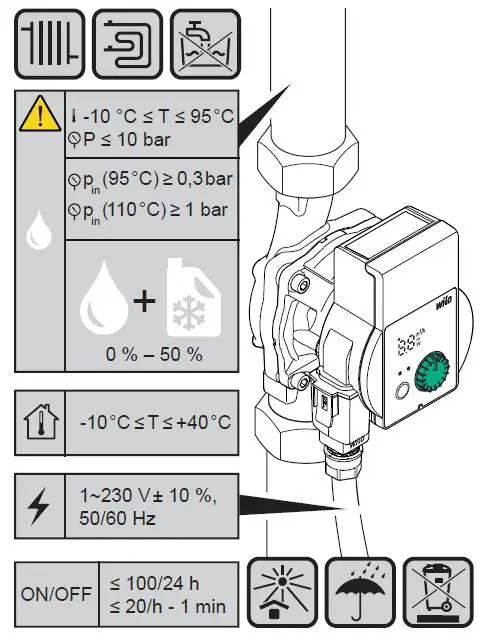

This circulator is exclusively designed for circulating fluids in hot-water heating systems and similar systems. Installation/dismantling must be carried out by a qualified tech-nician. Personnel must be instructed in the locally applicable accident prevention regulations, and have read and understood the installation and operating instructions. The product must be operated by persons who are instructed in the functioning of the complete system

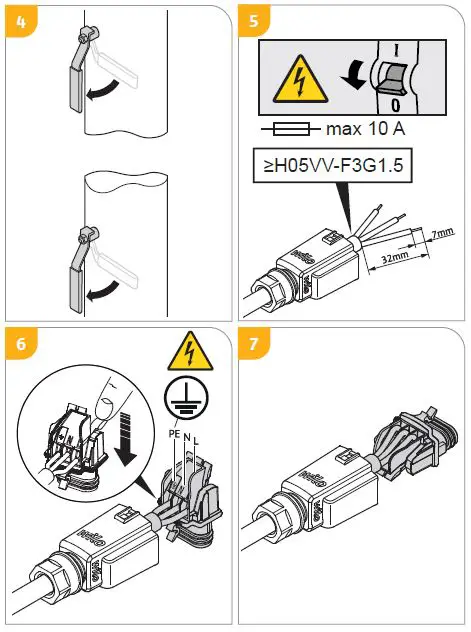

Electrical work must be performed by a qualified electrician: nationally applicable guidelines, standards and regulations as well as specifications by local energy supply companies for connection to the local power supply system must be observed. This device can be used by children from 8 years old as well as persons with limited physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or instructed in the safe use of the device and they understand the dangers that may arise. Children are not allowed to play with the device. Cleaning and user maintenance may not be carried out by children without supervision. Never operate the pump with phase angle control. Shut down the pump immediately in case of damage to the con-necting cable or other electrical components
Explication des symboles

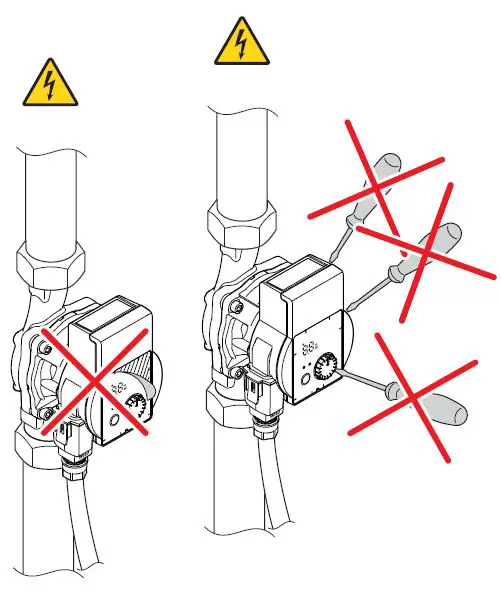

Risk of fatal injury from electric voltage!
Risk of injury or damage due to incor-rect use!
Risk of burns from hot surfaces and/or hot fluids!
Risk of fatal injury for persons with medical implants due to installed per-manent magnets in the pump.
Disposal in domestic waste is forbidden!
See details in the complete instruction manual availa-ble at the address on the title page.
