Atomi At1633 Qi Wireless Car Charger User Manual

atomi AT1633 Qi Wireless Car Charger

Thank you for purchasing the atomi Qi Wireless Car Charger
The atomi Qi Wireless Car Charger combines a strong, automatic, motorized mount with the freedom of wireless charging. Through Qi Wireless fast charging technology, you can charge your phone quicker and more e°ciently in your car.
The secure, motorized clamps provide the pe˛ect viewing angle and the option to turn your phone from landscape to po˜rait mode seamlessly.

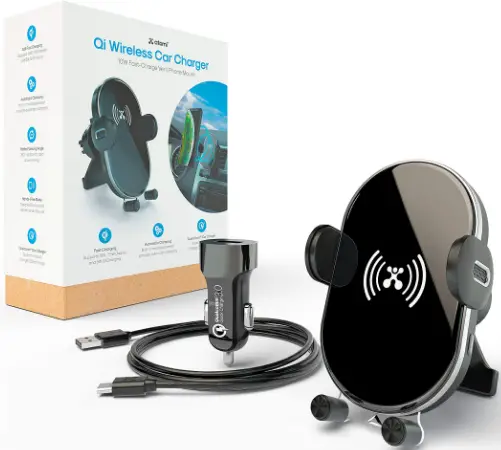

What’s Inside

1. Qi Wireless Phone Mount
2. 3 Mouting adaptors: Vent, Windshield, and Dash
3. Qualcomm 3.0 USB Car Charger
4. 3-Foot Type-C Cable

Specifications

• Qi Charger Specifications:
  • Input: 5V 2A, 9V 1.67A
  • Output: 10W
• Car Charger Specifications:
  • Input: DC 12-24V 1.6A max
  • Output: 5V 3A, 9V 2A, 12V 1.5A

Charging Your Wireless Device

1. Connect the supplied Type-C cable to the wireless charger’s USB-C po˜ and to the car charger’s USB po˜. Inse˜ the car charger into your vehicle’s 12-volt power outlet.
2. Press the bu˙on on the side of the charger to open the clamps. Place your phone on the charger.
   The clamps will automatically close and hold your phone. Charge will sta˜ on contact.NOTE: if the Type-C cable is not connected to the charger, the clamps will not close automatically. You will need to press the lateral bu˙on to close them to hold your phone.
   When the power is oˆ, it will beep 5 times to remind you to take away the phone.

Using the Vent Mount

• Place the mount onto your vehicle’s vent louvers to a˙ach.
• Place the adaptor onto the vent mount.
• A˙ach the charger’s mount onto the vent mount and turn the adaptor to tighten and secure it.

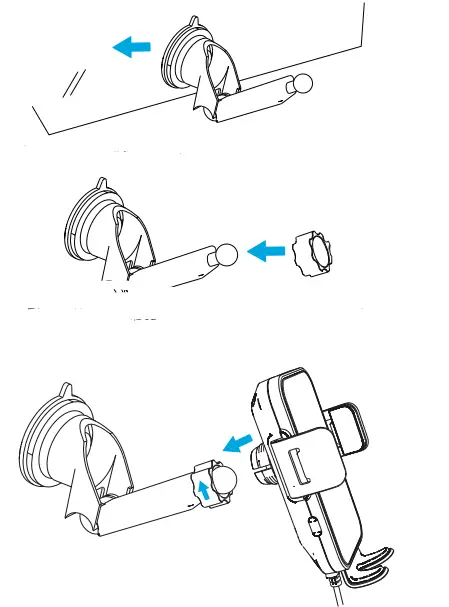

Using the Windshield Mount

• A˙ach the mount onto your vehicle’s windshield.
• Place the adaptor onto the windshield mount.
• A˙ach the charger’s mount onto the windshield mount and turn the adaptor to tighten and secure it.

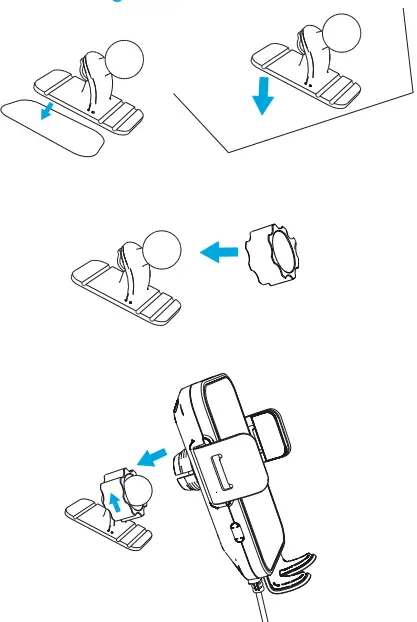

Using the Dash Mount

• Peel oˆ the paper on the back of the dash mount then place the mount onto your vehicle’s dash.
• Place the adaptor onto the dash mount.
• A˙ach the charger’s mount onto the dash mount and turn the adaptor to tighten and secure it.

Safety Information

Taking care of your Qi Wireless Car Charger will protect your warranty coverage.
Here is how to properly care for your atomi Qi Wireless Car Charger:

• Keep it dry, as any moisture, including humidity can corrode the electronic circuits.
• Do not use your Qi Wireless Car Charger if it gets wet. Wait until it dries.
• If the Qi Wireless Car Charger is damaged in any way, do not use it.
• Keep it free from dust, as dust can damage pa˜s and electronic components.
• Do not store in high temperatures, as high temperatures may damage the device.
• Do not store in cold temperatures, as moisture can form inside the charger when it warms up to room temperature.
• Do not modify the Qi Wireless Car Charger in any way.
• Never drop, knock or shake the Qi Wireless Car Charger. This could break internal circuit boards and mechanics.
• During extended operation, the device may feel warm. In most cases, this is normal. If the device is not working properly, contact us at [email protected] for warranty and product assistance.

Caution

If you have an implanted medical device, including pacemaker, implanted cardiove˜er defibrillator, etc., you should:

• Keep the Qi Wireless Car Charger more than six inches away from the medical device.
• Unplug the Qi Wireless Car Charger if you think it is inte˛ering with your medical device.
• Follow the directions that came with your medical device.

Warning
This product can expose you to chemicals including Lead, which is known to the State of California to cause bi˜h defects or other reproductive harm. For more information,go to www.P65Warnings.ca.gov.

For questions or concerns, email us at [email protected]
Manufactured and marketed by Atomi Inc.
10 West 33rd St., New York, NY 10001 atomi™ is a trademark of Atomi Inc.
Designed by Atomi in New York. Made in China One-year limited warranty from the date of purchase against defects in material and workmanship.
