RPP2 PACT PHONO PREAMP
OWNER’S MANUAL
RPP2 Compact Phono Preamp
Please read this guide carefully for proper use of your RPP2 Compact Phono Preamp. Scan the OR code on the left or visit rockvillesupport.com/rpp2 to access a digital version of the owner’s manual and other important information you may need to get the most out of your item. Should you need assistance please call our technical help line at 1-646-758-0144, 24 hours a day/7 days a week.
INTRODUCTION
Turntables have low-level signals and most audio units (mixers, amplifiers, recording units, etc.) can only process line-level signals. The RPP2 acts as an intermediary between the turntable and the receiving audio unit by equalizing and amplifying the turntable’s signal according to RIM specifications.

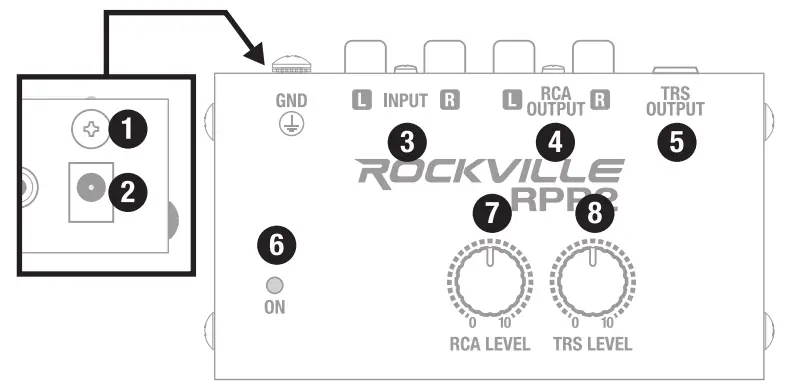

FUNCTIONS
- 12V power input: Connect the included power supply to power on the unit.
- Ground point
- UR RCA Inputs: Connect the UR RCA outputs from the turntable to these inputs.
- UR RCA Outputs: Connect the UR RCA outputs to the UR RCA inputs of a mixer, amplifier, recording unit, etc.
- TRS Output: Connect this output to a Y.” input(s) on a mixer, amplifier, recording unit, etc Please note, the end of the cable connected to the RPP2 must be 1/4- TRS. If the receiving unit has dual mono inputs (UR), use a VC TRS to dual IACTS cable.
- Power LED indicator
- RCA Level control knob
- TRS Level control knob SETUP EXAMPLE 1
SETUP
EXAMPLE 1
EXAMPLE 2
http://rockvillesupport.com/rpp2
RockvilleAudio.com
02022 ROCKVILLE // The information presented is subject to change and/or improvement without notice
