STP-2
Stereo Phono Preamplifier
Item ref: 128.513UK
User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Introduction
Thank you for choosing the STP-2 stereo phono preamplifier as part of your audio system. This unit has been designed to allow vinyl turntables to be connected to line level or auxiliary inputs, whilst delivering the best sound quality possible.
Setup and Connection
- Ensure the turntable is fitted with a magnetic cartridge

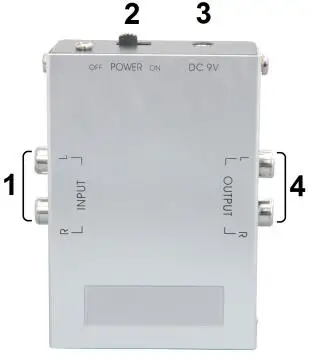

- Connect phono outputs from the turntable to the inputs (1) of the STP-2 via good quality RCA leads
- Connect the outputs (4) from the STP-2 to the line or auxiliary inputs of the mixer or amplifier
- Connect the supplied 9V power adaptor to the DC jack (3) and move the slide switch (2) to “ON”
- The STP-2 will now boost the turntable output from phono to line level
- The front of the STP-2 can pivot open to reveal the battery compartment allowing a PP3 battery to be used if preferred
Specifications
| Power supply | 9V DC, 100mA (or optional PP3 battery) |
| Equalization | RIAA correction |
| Frequency response | 30Hz – 20kHz |
| Gain | 34dB |
| Input impedance | 50k ohms |
| Output impedance | 50k ohms |
| Dimensions | 30 x 70 x 90mm |
| Weight | 250g |
Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or
Electronic equipment and should not be disposed of with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
