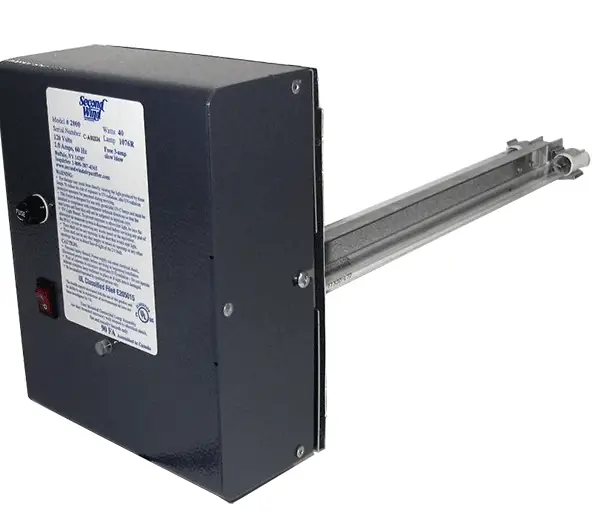

Second Wind NEMA Series UV Air Purifiers

Instruction

Heavy-duty systems for roof-top (RTU) installations. High output UVC lamps produce the strongest output in the industry, combined with the PCO process for breaking down odors. The NEMA 4- Rated, water-proof and weather-proof enclosure protects the unit and the RTU.

Benefits

Reduce Maintenance Costs
Clean HVAC coils require less maintenance and reduce the need for chemical cleaning treatments. Even a microscopic layer of mold can reduce efficiency by 40%!

Reduce Pollutants
Second Wind™ UV air purifiers sanitize furnace coils, inactivating mold, viruses, germs, bacteria, and other airborne pathogens that would otherwise be introduced into the air.

Specifications

Installed on roof-top and outdoor applications, the NEMA 4-Series provide the appropriate UV dose to reduce mold, bacteria, and viruses in the airstream and on coil surfaces.

NEMA Series Single Unit Sizing

Tonnage	< 4.5t	5.0t	7.5t	10.0t	12.5t	15.0t
cfm	< 1800	2000	3000	4000	5000	6000
SF-3018
SF-3024
SF-3032
SF-2000-230OD

NEMA Series Dual Unit Sizing

Tonnage	20.0t	25.0t	30.0t	40.0t	50.0t
cfm	8000	10000	12000	16000	20000
(2x) SF-3024
(2x) SF-3032
(2x) SF-2000-230OD

Product Features

Product Specs	SF-2000-230 OD	SF-3018	SF-3024	SF-3032
POWER REQUIREMENT	100-277V
AMPERAGE DRAW	0.9A AT 100V / 0.4A AT 277V
LINE CORD	N/A
STARTING	HARDWIRE

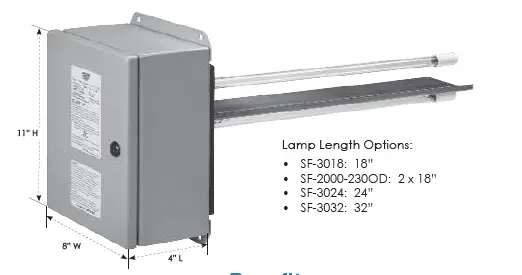

LAMP SIZE	18”	18”	24”	32”
NUMBER OF LAMPS	2	1	1	1

AIRBORNE AND SURFACE MOLD	•	•	•	•
REDUCES BACTERIA AND MICRO-ORGANISMS	•	•	•	•
ODOR CONTROL	•
PHOTO-CATALYTIC OXIDATION (PCO) MODULE	•
REPLACEMENT LAMP	SF-1076-1R SP	SF-1076-1R SP	SF-1097B-R	SF-1081B-R
REPLACEMENT BALLAST	SF-1060E-R
