Hama 00089299 Car Dc/ac Inverter Instruction Manual (+ PDF)

hama 00089299 Car DC/AC Inverter

Contents hide

1 Controls and Displays

2 Explanation of Warning Symbols and Note

3 Package Contents

4 Safety Notes

5 Startup and operation

6 Protective Features and Troubleshooting

7 Technical Data

8 Care and Maintenance

9 Warranty Disclaimer

10 Service and Support

11 Recycling Information Note on environmental protection

12 Documents / Resources

13 Related Posts

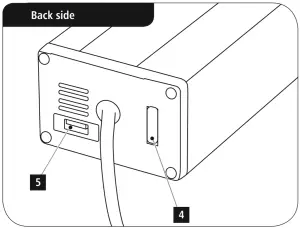

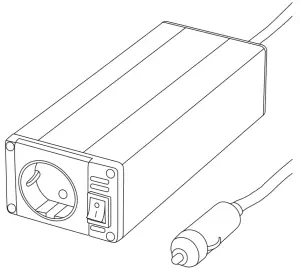

Controls and Displays

On/off switch
AC output
DC input
20 A fuse
USB port

Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

Explanation of Warning Symbols and Note

Warning	This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.
Note	This symbol is used to indicate additional information or important notes.

Package Contents

Vehicle inverter
These operating instructions

Safety Notes

Use the product for its intended purpose only.
Do not operate the product outside the power limits given in the specifications.
Protect the product from dirt, moisture and overheating, and only use it in a dry environment.
Do not bend or crush the cable.
Do not drop the product and do not expose it to any major shocks.
Always pull directly on the plug when disconnecting the cable, never on the cable itself.
Keep this product, as all electrical products, out of the reach of children!
Dispose of packaging material immediately according to locally applicable regulations.
Do not modify the product in any way. Doing so voids the warranty.
When using this product, observe the applicable local traffic laws and regulations.
Take care that components such as airbags, safety areas, controls, instruments, etc. and visibility are not blocked or restricted.

Note	For some vehicle types, the ignition has to be switched on to supply power to the 12 V car socket. For more information, please refer to your vehicle’s operating instructions Disconnect all cable and on-board connections after use

Warning

Only use the power converter with suitable car electrical systems that produce 12 V DC, never with 24 V DC

Startup and operation

Ensure that the power consumption of the device to be connected does not exceed the maximum continuous power rating of the power converter.
Ensure that the power converter is switched off.
Insert the cigarette lighter plug into the corresponding socket of your vehicle. Ensure that the plug is securely in place and that the cable is not pinched or stretched.
Switch on the power converter.
Connect your electrical device to the socket or the USB port.

Warning

Contact resistance may cause voltage loss. This can negatively affect your device and/or cause the contacts to spark or heat up. You must therefore always ensure that the plug and socket contacts are smooth and clean, and that the plug is securely in place.
The power converter is not suitable for the powering of all electronic devices! These include, for example, fluorescent or energy-saving lamps. In case of doubt, please check with the manufacturer of the device whether operation on modified sine wave voltage is possible.
If you connect a device with an electric motor, the startup power consumption may be higher than the rated consumption. This may result in the voltage transformer being overloaded.
Only one electrical device may be connected to the 230-V output of the power converter. The use of distributors or extension cables is not permitted
Remove the cigarette lighter plug from the socket of your vehicle when you are not currently using the device or when you wish to start the vehicle.

Protective Features and Troubleshooting

Warning

Should any of the following happen, do not continue to use the power converter under any circumstances and contact your dealer or our service department immediately:

The device fuse (20 A) is triggered immediately after it is replaced.
The housing, socket, cable or cigarette lighter plug is damaged.
The power converter is defective.
If smoke, odours or unusual noises are coming from them power converter.

Technical Data


Connection/input	Cigarette lighter plug
Input voltage range	DC ⎓ 12 V
Continuous output capacity	150 W
Peak output power	300 W for 0.02 seconds
Connection/output	Earth contact and USB por
Output voltages	230V +/- 10% VAC 50Hz +/- 3Hz DC USB port: 5 V/max. 2100 mA
AC signal form	Modified sinusoidal voltage
Ambient temperature	0°C–40°C

Care and Maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

Warranty Disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/ mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

Service and Support

Please contact Hama Product Consulting if you have any questions about this product. Hotline: +49 9091 502-0 (German/English) Further support information can be found here: www.hama.com

Recycling Information Note on environmental protection

After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.
