00183278
00183285

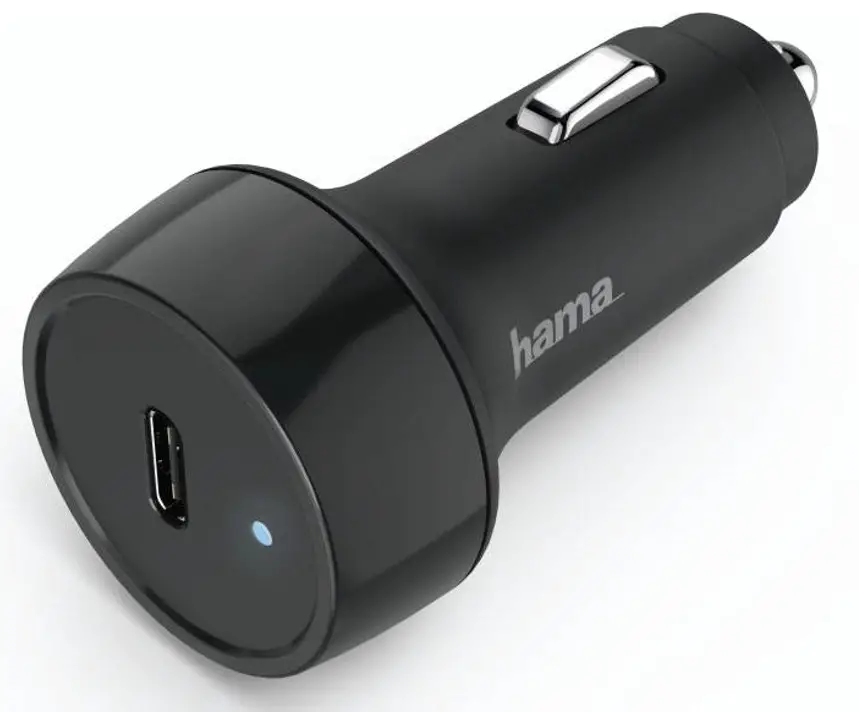

Car Charger,USB-C, PD /QC3.0, 2.0
Operating Instructions
Thank you for choosing the Hama product.
Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference.
Explanation of Warning Symbols and Notes
Risk of electric shock
This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.
Warning
This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.
Note
This symbol is used to indicate additional information or important notes.
Package Contents
- Car Charger (USB-C), Power Delivery (PD)/QC 3.0, 2.0
- These operating instructions
Safety Notes
- When using this product, observe the applicable local traffic laws and regulations.
- Take care that components such as airbags, safety areas, controls, instruments, etc., and visibility are not blocked or restricted.
- Do not allow yourself to be distracted by the product when driving a vehicle. Always pay attention to the surrounding traffic and your environment.
- Protect the product from dirt, moisture, and overheating, and only use it in an adry environment.
- Do not drop the product and do not expose it to any major shocks.
- Do not operate the product outside the power limits given in the specifications.
- Do not modify the device in any way. Doing so voids the warranty.
- Do not continue to operate the device if it becomes visibly damaged.
- Use the product for its intended purpose only.
- Keep this product, like all electrical products, out of the reach of children!
- Do not bend or crush the cable.
- Always pull directly on the plug when disconnecting the cable, never on the cable itself.
- Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
- Dispose of packaging material immediately according to locally applicable regulations.
- Use the item only in moderate climatic conditions.
- Do not use the product in areas where the use of electronic devices is not permitted.
- Do not use the product in moist environments and avoid splashes.
Risk of electric shock
- Do not open the device or continue to operate it if it becomes damaged.
- Do not use the product if the charging cable, adapter cable or power cable is damaged.
- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.
Operation
Note –12-V/24-Vehicle electrical system
The charger is suitable for use with an a12-Vor24-V vehicle electrical system.
Warning –Connecting terminal devices
- Before connecting a terminal device, check whether the power output of the charger can supply sufficient power for the device.
- Ensure that the power of the connected terminal device does not exceed 18 W.
- Please refer to the instructions in the operating manual of your terminal device.
Note –Power Delivery /QC 3.0, 2.0
- Plug &go: No manual setup necessary,just connect and start: Voltage and power are automatically configured by Power Delivery/QC 3.0, 2.0.
- For efficient and optimized charging, the Power Delivery (PD)/QC 3.0, 2.0 function must be supported by your terminal device.
- With the large quantity of PD/QC-enabled terminal devices with different firmware versions, it can happen that the function is not fully supported.
Unless the operating instructions for the devices you want to charge explicitly inform you otherwise, proceed as follows:
- Connect your terminal device to the USB-C charging socket using a suitable USB-C cable.
- Connect the charger to the car socket of the vehicle electrical system.
- Charging progress is displayed on your terminal device.
- Disconnect the terminal device from the charger if you want to interrupt charging or if the terminal device is fully charged.
- Then disconnect the charger from the power supply.
When charging batteries built into a device, pay attention to the maximum charging time for the batteries.
Note –Car battery
With some vehicles, it can happen that power continues to be supplied even though the ignition has been switched off. Therefore, when not using
the product, disconnect it from the power supply to protect your car battery from discharge.
Care and Maintenance
Only use dry,soft cloths for cleaning.Note
Disconnect thedevicefromthe power supply before the cleaning gift will not be used for a long period of time.
Technical specifications
Car Charger
| Vehicle electrical system voltage | 12 V, 24 V |
| Max. output voltage/current | 5V  3A9V 2A12 V 1,5 A |
| Total output power | 18 Wmax. |
| Ambient temperature | 0°C –40°C |
Warranty Disclaimer
Hama GmbH &CoKG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of
the product or from failure to observe the operating instructions and/or safety notes.
Recycling Information
Note on environmental protection:
After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies:
Electric and electronic devices, as well as batteries, must not be disposed of with household waste.
Consumers areobliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points
set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual, or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilizing old devices/ Batteries, you are making an important contribution to protecting our environment.
Hama GmbH &CoKG
86652 Monheim /Germany
Service &Support
www.hama.com
+49 9091 502-0
All listed brands are trademarks of the corresponding companies.
Errors and omissions excepted, and subject to technical changes.
Our general termsofdeliveryand payment is applied.
00183278/11.20
