Fiamma Turbo-vent 28 F Roof Light Instruction Manual

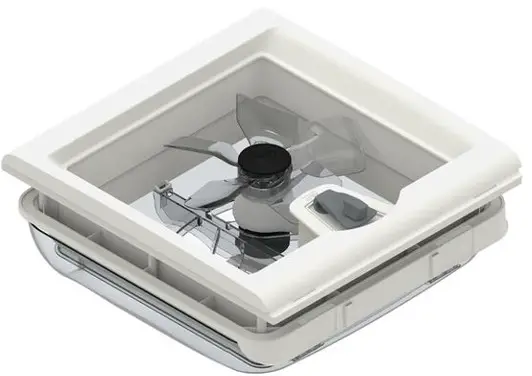

Turbo-Vent 28 F Roof Light
Instruction Manual

Turbo-Vent 28 F Roof Light

COMFORT – Tech

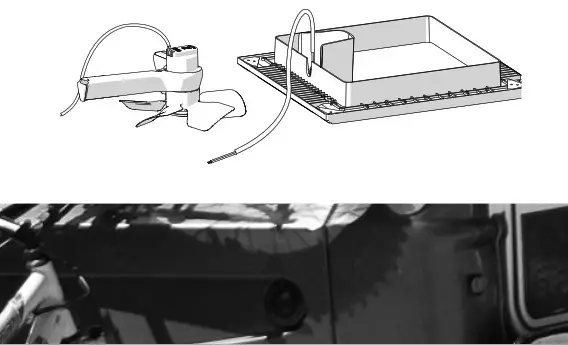

Kit Turbo-Vent 28 F	07903-01	0,5 kg
	07903-02-

Check that nothing has been damaged or deformed during transport.
In the event of doubts or questions concerning the installation, use or limitations of the product, contact the dealer. We recommend that the installation is carried out by qualifi ed personnel and in compliance with current local regulations.

Nominal supply voltage	12 V
Tension tolerance	+/- 30%
Min. feeding tension	8 V
Maximum supply voltage.	16 V
Power of nominal supply voltage	25 W
Wire section	17 AWG – 1 mm²
Max. electric input	1,9 A +/- 10%
Operating temperature	-10°C/+70°C
Storage temperature	-20°C/+80°C
Permanent air flow	50 cm²

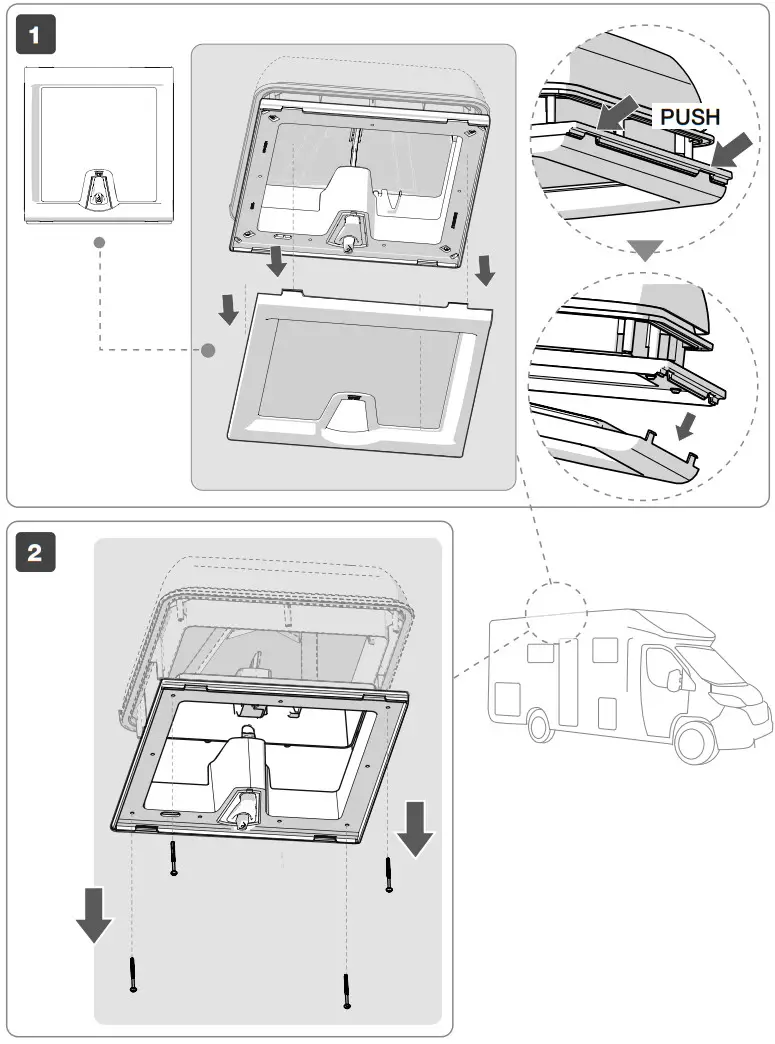

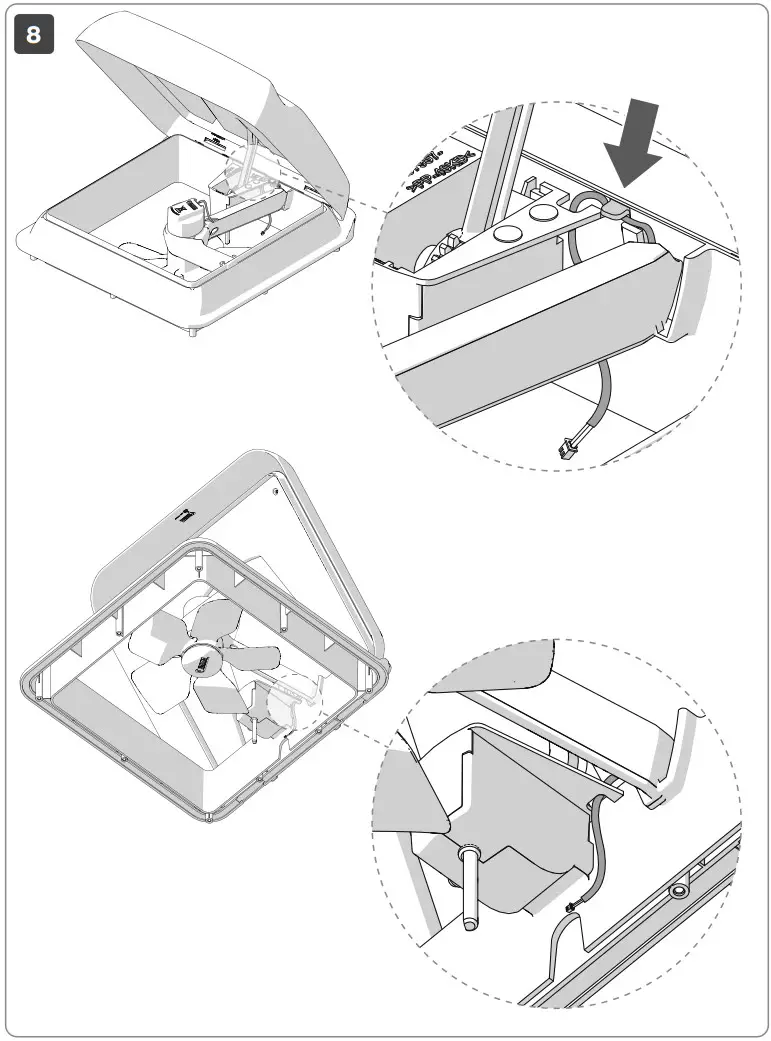

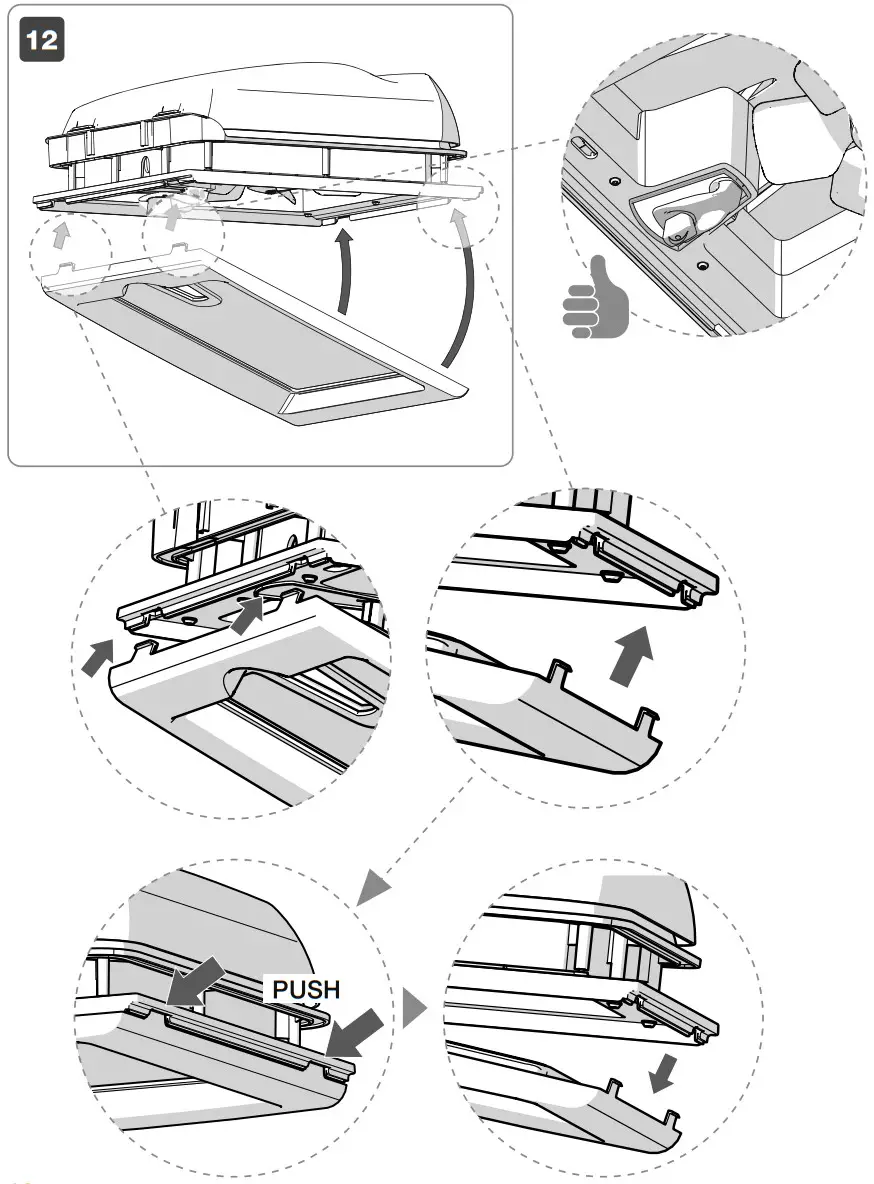

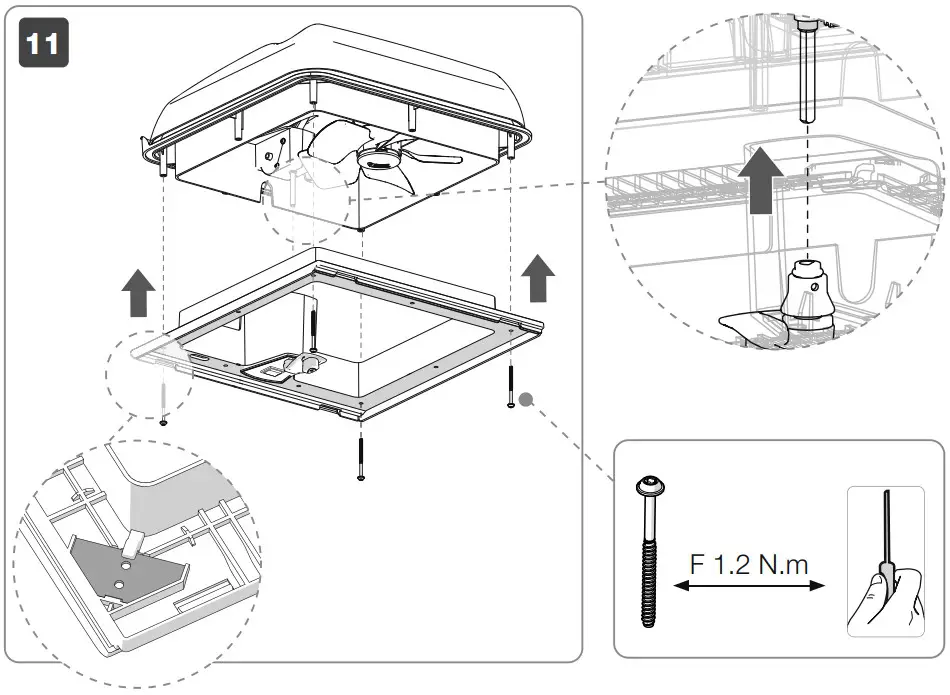

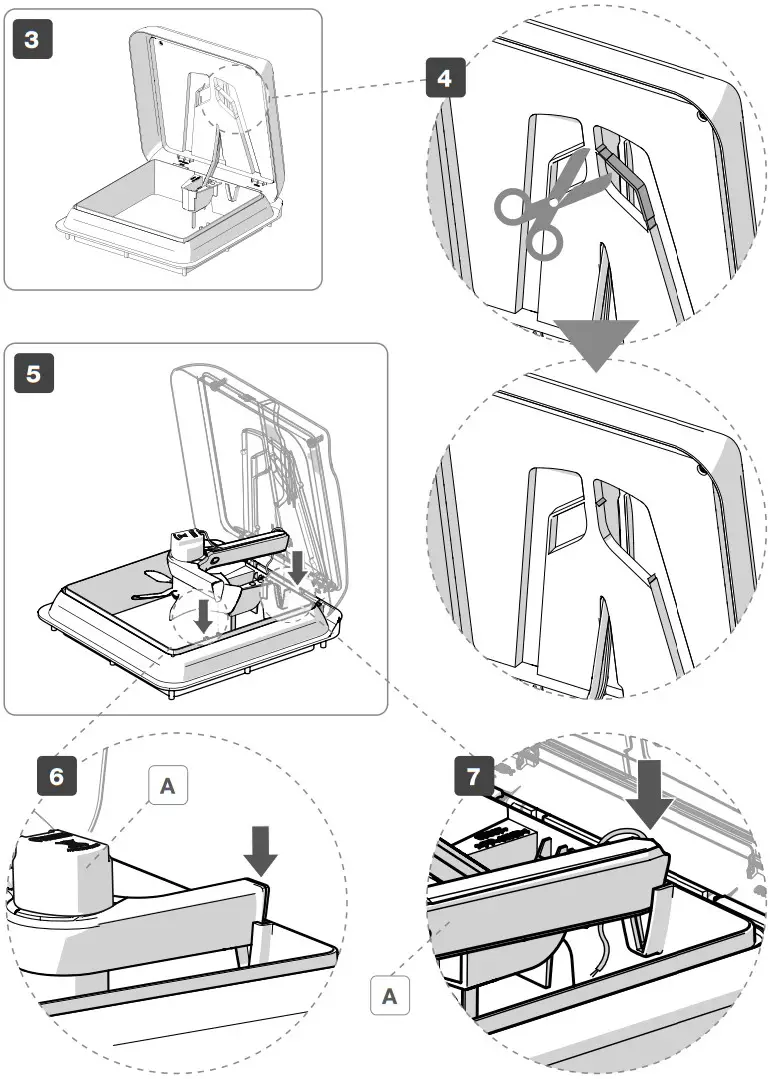

Installation instructions

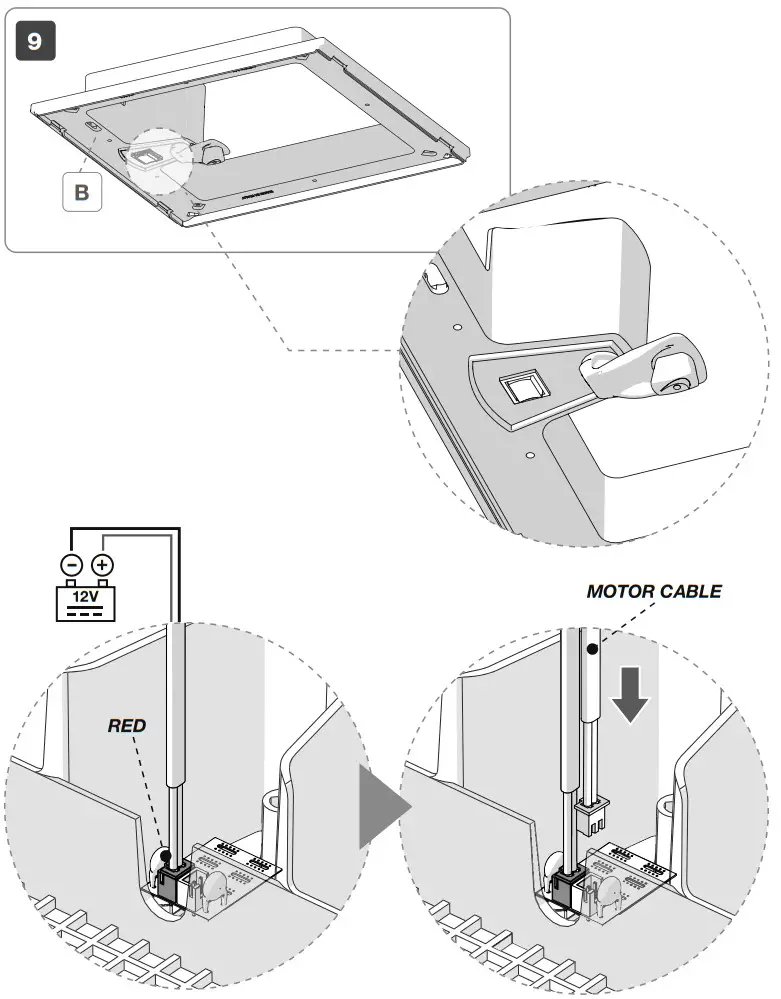

Do not forget to arrange the electrical connection directly from the battery (only 12V – NOT 220V). Connect the input cables of the electric motor.

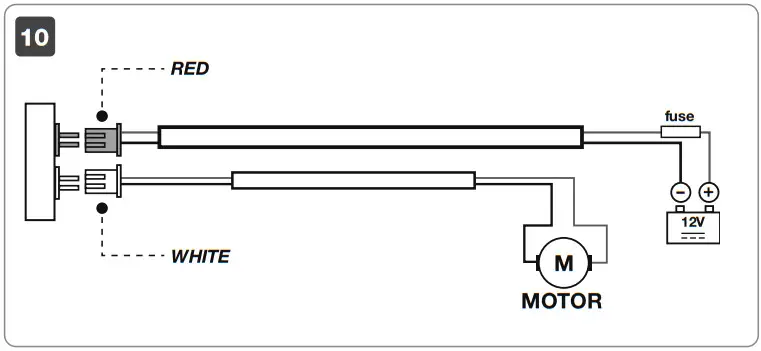

Position the switch to “0” before connecting the power supply wires. Connect the motor wires to the reversing switch, then connect the 12 V power supply wires.

Safety instructions

In case of problems please contact your local dealer.
Fiamma declines all responsibility for any personal injury and damage to property due to incorrect assembly or use of the product; it is suggested to keep the instructions inside the vehicle. The assembly of the product must be carried out according to the assembly instructions: the product must not be modifi ed in any way. Periodically check the tightness of all the screws in the accessory, especially after the fi rst kms from the installation and each time before and after long journeys. Before starting the vehicle, check that the roofl ight is properly closed. Periodically check that the cover is intact. Don’t open the roofl ight when the vehicle is travelling. Don’t open the roofl ight in case of strong wind or rain. Remove snow or ice from the roofl ight. Always comply with speed limits and the Highway Code. The speed should always be suitable to traffic conditions and towed load.
CARE AND MAINTENANCE:
For the internal and external cleaning of the roofl ight, always use only neutral, non-aggressive detergents. For cleaning the Crystal cover use an acrylic glass cleaner with a soft cloth so as not to scratch the surface. Never use aggressive products such as glass cleaners, all-purpose cleaners, abrasives or dish-washing detergents. Also, never use alcohol-containing detergents, solvents or any corrosive liquid. The mosquito net can be cleaned with water and a neutral detergent by removing it from the press fi ttings.

Warranty Fiamma

In case of defects with regards to materials and manufacturing, the customer is entitled to the warranty in accordance with local laws and regulations of the country in which the product was purchased.

EU Declaration of Conformity (DoC)

Date 17/05/2022
We,
Company name: Fiamma S.p.A.
Postal address: Via San Rocco, 56
Postcode and city: Cardano al Campo — (Varese)
Telephone number: 0311/709111
E-mail address: [email protected]
Declare that the DoC is issued under our sole responsibility and belongs to the following product:
Apparatus model/Product: Roof Light with fun
Trademark: Fiamma

y = – White; B/D = Crystal
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

• 2014/30/EU Electro Magnetic Compatibility Directive (EMCD).
• 2014/35/EU Low Voltage Directive (LVD).
• 2011/65/EU Restriction of the use of certain hazardous substances Directive (RoHS Directive).
• ECE/ONU/R10 Uniform provisions concerning the approval of vehicles with regard to electromagnetic compatibility — R10.
• ECE/ONU/R43 Uniform provisions concerning the approval of safety glazing materials and their installation on vehicles — R43 (only for Turbo 28, 28 F, Vent, Vent P3 and Vent Premium).
• EN 55014-1:2006 + A1:2009+ A2:2011— RCM (only for Turbo 28, 28 F and Turbo Vent Premium).
• EN 61000-3-2:2014 — RCM (only for Turbo 28, 28 F and Turbo Vent Premium).
• EN 61000-3-3:2013 — RCM (only for Turbo 28, 28 F and Turbo Vent Premium).
• EN 55014-2:2015 — RCM (only for Turbo 28, 28 F and Turbo Vent Premium).

The following harmonised standards and/or technical specifications have been applied

https://www.fiamma.it/en/

fiamma.com
Fiamma S.p.A. – Italy
Via San Rocco, 56
21010 Cardano al Campo (VA)
All rights reserved.
Fiamma S.p.A.
reserves the right to modify at any time, without notice, prices, materials, specifications and models or to cease production of any model.
E0_IS_98690-893_revH
