User Guide
SPECIFICATIONS
- Product Name: Dash Cam
- Product Model: mini
- Input:5V = 2A
- Storage: TF card (up to 128GB), loop recording
PACKAGE CONTENTS

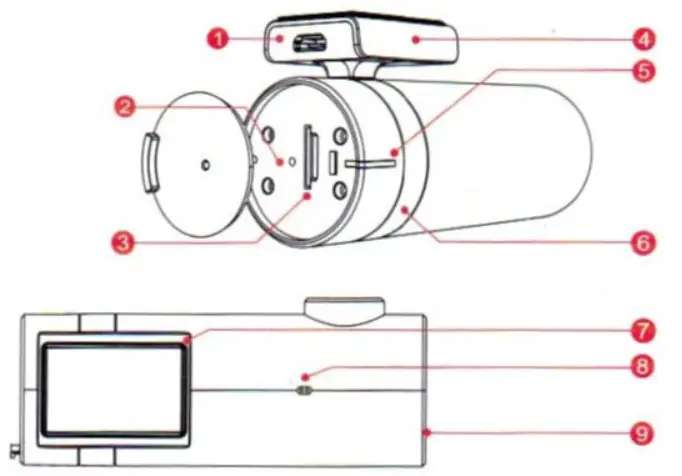

PRODUCT OVERVIEW
| 1. micro USB Port 2. Reset Key 3. SD Card Siot 4. Mounting Bracket 5. LED Indicator | 6. Rotating Shaft 7. 3M Adhsive Pad 8. MIC 9. Loadspeaker |
LED INDICATOR INSTRUCTION
| Name | Description |
| working fine | Red light flashs slowly |
| Booting | Red light is always on |
| Storage abnormal/working abnormally | Purple light flashs quickly |
| Parking monitoring | Blue light flashs slowly |
| USB data transmission mode | Blue light is always on |
| Upgrading | Purple light is always on |
INSTALLATION
- Clean an area on the windshield where you wish the Dash Cam to be installed, this assists in adhesion.

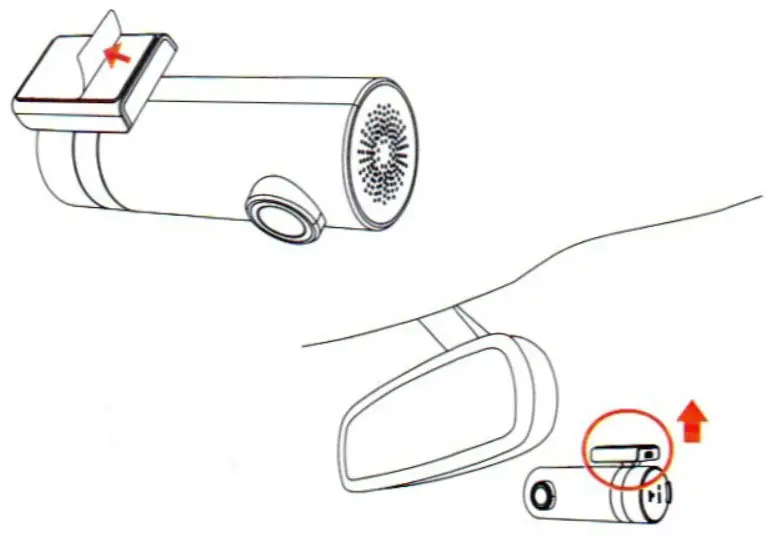

- Remove the protective film from the back of the bracket, attach the adhesive side of the mount on the windshield where it has an unobstructed view of the road but does not interfere with the driver’s view. As shown below.

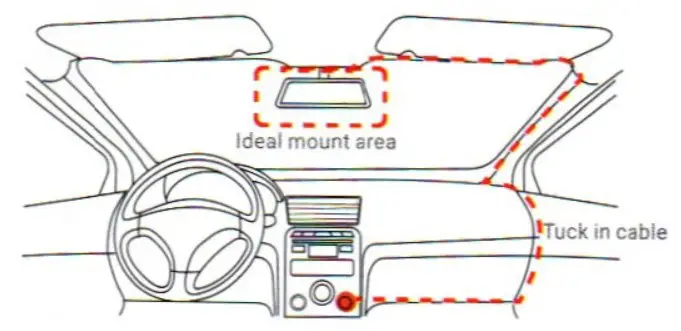

- Use the installation tool to lift the edges of the windshield/molding and tuck in the power cable. Connect the Dash Cam to the car charger (plugged into cigarette lighter socket) and power cable.
- Turn on the engine after installation, you will hear a boot tone, the Dash Cam powers up and starts recording, meanwhile, an LED indicator will blink slowly in normal mode.
- Adjust the angle of the lens by rotating the Dash Cam. We recommend pointing the lens slightly downwards (=10° below horizontal), so as to record video with a 6:4 road to background ratio. It is recommended to adjust the Dash Cam position while looking at the screen to select the best viewing angle.
APP INSTRUCTION
Install DDPAI APP
Scan the QR code to download the “DDPai’ APP.
 |  |
| https://apps.apple.com/cn/app/id1139717657 | https://play.google.com/store/apps/details?id=com.cam.ddpai_overseas |
Pair Smart Phone to Dash Cam
- Keep the Dash Cam and mobile phone within 2.5meters.
- Launch DDPAI App, tap on “Device > Connect new devices.
- Choose your DDPAI Dash Cam from the network list(For Android system, App will start to search Dash Cam network automatically. For 10S phone: turn on WLAN from “Settings ->WLAN”). The Dash Cam’s default SSID (or Wi-Finame) is DDPAI_mini_XXXxX.
- Enter the password (the default password is ‘1234567890’).
- Enter DDPAI App, wait a few seconds until the preview screen show.

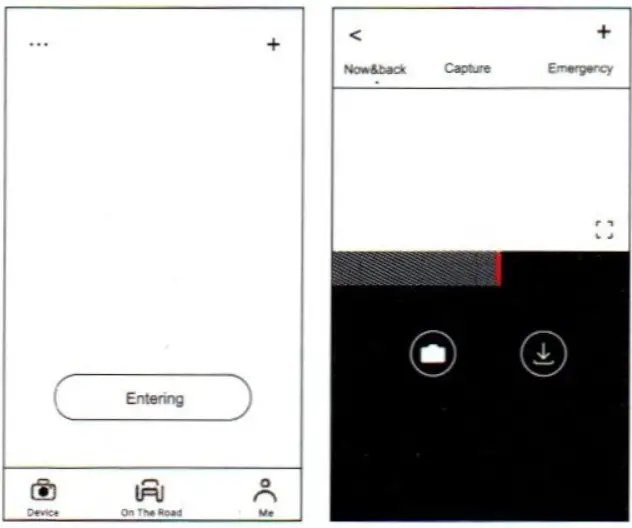

Preview
- Open the DDPAI Apo and add your Dash Cam.
- Select “Device > Entering” tab, this will Bring you to the preview page.
Rotate your smart phone or press expand
icon turn the preview screen to landscape mode.
Rotate your smart phone or press expand
icon turn the preview screen to landscape mode.Playback
Tap and left/right drag timeline bar at the screen bottom to create the starting point of the recording you wish to preview, then tap on thumbnail when you have made your selection, or wait for 5 sec for buffering, now you can watch the history recording.
Download Video Files
- Tap and left/right drag timeline bar at the screen bottom to create the starting point of the recording you wish to download, then tap on thumbnail when you have made your selection, or wait for 5 sec for buffering, to enter the download start screen.
- Tap on
from preview screen to enter the download interface. - After the video has finished downloading, click “Complete”.
from preview screen to enter the download interface.CONTACT
en.ddpai.com
[email protected]
DDPAI Technology Co , Ltd .
Floor 12, Yihua finance building, Software park, Yuehar Sub district, Nanshan district, Shenzhen
For more information and FAQs, Please scan the QR code:
