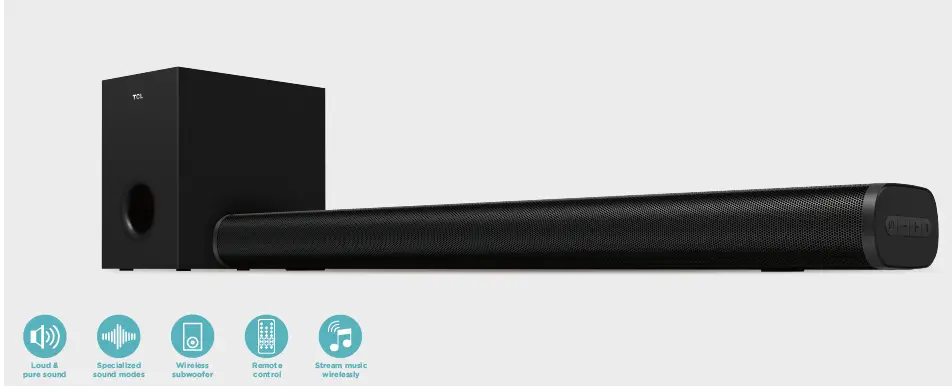

TCL S522W S Series Product Highlights 2.1 Channel Home Theater Sound Bar with Wireless Subwoofer
Key Features
| Key Features: |
| Clear and loud sound |
| Maximum Audio Power 200W |
| Specialized sound modes |
| Wireless music |
| Ideal for 32” TV and above |
Stunning sound. Made simple
The sound bar delivers stunning sound thanks to precision tuning to deliver what the artist intended. Tested and tuned at award-winning iLab in Belgium, the sound bar is developed by our in-house team who have extensive experience in sound and acoustic experiences. Equipped with a 2.1 channel sound bar system with a subwoofer, the Soundbar is destined to improve your entertainment experience with room-filling and stunning sound. Moreover, our sound bar comes with three distinct listening modes – Movie, Music, and News. It’s equipped with Bluetooth for easy wireless streaming – You can stream your favorite music anytime by connecting your smart device with it. You can choose Wall Mount & on TV Cabinet for Placement. You can control it using one simple soundbar remote or your TCL TV remote for ease of use and reduced clutter. Enjoy load and clear sound without distortion for a truly immersive listening experience.
Product Highlights
| TCL S-SERIES | |
| Model | S522W |
| Soundbar length | 810mm (31.8”) |
| Description | 810mm, 200W, 2.1CH, wireless subwoofer |
| SOUNDBAR FEATURES | |
| Channels | 2.1 CH |
| Maximum Audio Power | 200W |
| Product dimensions (WxHxD) | 810 x 70 x 99mm 31.9” x 2.8” x 3.9″ |
| LED indicator | Multi-color LED |
| Keypad | On/O, Vol -, Vol+, BT |
| IR pass-through | NA |
| AUDIO (Soundbar) | |
| Driver Dimensions | 2.25″ driver |
| Sound Pressure Level | 87 db (±3dB) |
| Dolby Processing | NA |
| EQ Settings | Music/Movie/News/Treble/Bass |
| SUBWOOFER | |
| Subwoofer included | Yes |
| Subwoofer Dimension (WxHxD) | 165 x 298 x 240mm 6.5” x 11.7” x 9.5″ |
| Wired/Wireless/Built-in | Wireless |
| Subwoofer Driver Dimensions | 5.25″ driver |
CONNECTIONS
Inputs/Outputs
| CONNECTIONS — Inputs/Outputs | |
| HDMI ARC | Yes |
| Bluetooth | Yes (version 5.1) |
| Optical | Yes |
| USB playback | Yes |
| 3.5mm AUX line-in | Yes |
| USB FEATURE | |
| Audio format support | MP3, WMA, WAV |
| Software Upgrade | Yes |
| ENERGY INFORMATION | |
| Energy Star | No |
| Power Consumption (W) | 9W (Sound bar) 10W (Subwoofer) |
| Standby Power | ≤0.5W (Sound bar) ≤0.5W (Subwoofer) |
ACCESSORIES (INCLUDED)
| ACCESSORIES (INCLUDED) | |
| Warranty Info | Yes |
| Quick Start Guide (QSG) | Yes |
| Direction For Use (DFU) | Yes |
| Power Cord Type (Soundbar) | Detachable, 14V/2.0A |
| Power Cord Type (Subwoofer) | Detachable, 14V/2.0A |
| Optical Cable | No |
| 3.5mm-3.5mm cable | No |
| RCA-3.5mm cable | Yes |
| IR pass-through cable | No |
| HDMI cable | No |
| Wall Mount kit | Yes |
| Remote Control | Yes |
| Remote Control Battery | Lithium (CR2025) |
PRODUCT & PACKAGE INFORMATION
| PRODUCT & PACKAGE INFORMATION | |
| Carton | Color-Printed Box |
| Product Size (WxHxD) | Soundbar: 810 x 70 x 99mm 31.9” x 2.8” x 3.9″ Subwoofer: 165 x 298 x 240mm 6.5” x 11.7” x 9.5″ |
| Product Weight (lbs) | 7.9 |
| Product Weight (kg) | 3.6 |
| Package Size (WxHxD) | 842 x 380 x 205mm 33.1” x 15” x 8.1″ |
| Total Package Weight (lbs) | 10.9 |
| Total Package Weight (kg) | 4.96 |
| INDUSTRIAL DESIGN | |
| Mesh on the Front and Top cabinet | Black Texture Metal |
| Soundbar finishing | Black High Gloss |
All Product Specifications Are Subjected to Change Without Notice.
