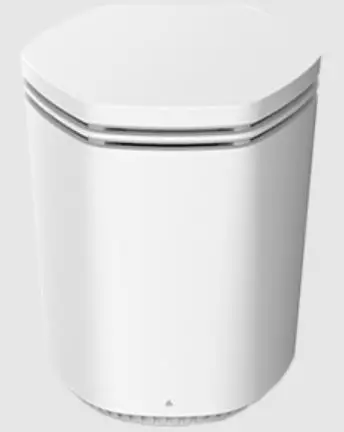

CIG WF-810B OpenSync WiFi DeskPod Ultra

Product Information

Product Name: OpenSyncTM Wi-Fi DeskPod Ultra WF-810B
Version: 1.0
Release Date: May, 2023
Manufacturer: Cigtech
Website: www.cigtech.com

Overview

The OpenSyncTM Wi-Fi DeskPod Ultra WF-810B is a high-performance Wi-Fi device that provides a seamless wireless networking experience. It supports the OpenSyncTM control plane and is integrated with Plume Cloud management and Plume mobile management application.

Key Features

• Desktop placement
• Highest performance at 4.8Gbps aggregate throughput
• 2.4GHz 40MHz 2×2 802.11b/g/n/ac/ax
• 5GHz 160MHz band 4×4 802.11a/n/ac/ax
• WPA/WPA2-PSK(AES)
• BLE 5.0
• 5 x Integrated Wi-Fi antennas
• 1 x Integrated BLE antennas
• 1 x 2.5GbE WAN
• 1 x GE RJ45 LAN
• 1 x Status LED (multi-color)
• 1 x USB-C PD AC adapter

Application Scenario

The WF-810B can be used to form a Wi-Fi mesh network. Three WF-810Bs can be configured, with one as the Gateway and the other two as Wi-Fi Extenders.

Software Features

The WF-810B offers various software features including bridge mode, router mode, IGMP snooping, band steering, channel scan, WPA/WPA2/WPA3 PSK security, and more. It also supports cloud management and mobile app management.

LED Status

• Green Solid: Device power on
• Blue Blinks: Device is connecting to the Cloud
• OFF: Device has been connected to the Cloud
• Blue Double Blinks: Network optimization in progress or locate device

Specification

• Dimension (D x H): 390g
• Weight: Desktop placement
• LEDs: 1x Status LED (multi-color)
• Interface: 1 x 2.5GbE RJ45 WAN, 1 x GE RJ45 LAN, 1 x USB 3.0 type-C power input operating at 12V/3A Input Voltage: 12V/3A
• Power consumption: < 24W
• Temperature: Operation: 0+40, Storage: -40+85
• Operating Humidity: 5%95% (non-condensing)
• Elevations: 86kPa106kPa altitude
• Dustproof and Waterproof Compliance: IP20
• Reliability: RoHS 2011/65/EU compliant (RoHS 10 compliant, no Pb)

MTBF: Qualcomm

• Chipset: 256MB NAND flash
• Wi-Fi SoC: 512M DDR3L
• Wi-Fi Interface: 2.4G radio:2.4000GHz~2.4835GHz, 5G radio: 5.150~5.250, 5.250~5.350, 5.470~5.725, 5.725~5.850GHz
• Data Rate: 802.11b: 1, 2, 5.5, and 11Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps; 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54Mb/s; 802.11n: MCS0-MCS7; 802.11ac: MCS0 ~ MCS9; 802.11ax: MCS0~MCS11
• Receive Sensitivity: 802.11g: -90dBm@6Mbps

OpenSyncTM Wi-Fi DeskPod Ultra WF-810B

Product Datasheet

www.cigtech.com

Notice
CIG have the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice, CIG has the final interpretation.

Overview

The Dual-band Wi-Fi 6 WF-810B is designed to extend Wi-Fi network connectivity for homes and business based on the latest 802.11ax chipset design. With the WF-810B, the user can utilize Plume HomePass and WorkPass, which provides a self-configuring, self-healing and self-managing Wi-Fi network. It dynamically selects the most reliable Wi-Fi path and enables fast and seamless handoffs for end-users. It is also able to interoperate with other OpenSyncTM devices like the Plume SuperPod. WF-810B is one of the best performing WiFi 6 Plume router/extender in the market with up to 5.4Gbps aggregate throughput . It supports 802.11ax on all Wi-Fi radio bands. The 2.4G radio supports 2×2 802.11b/g/n/ac/ax MIMO. The 5G radio supports 4×4 802.11a/n/ac/ax MIMO with 160MHz channel width. WF-810B can meet the requirements for high-speed real-time traffic and high-bandwidth entertainment, such as 4K video, video game streaming and VR. WF-810B integrates OpenSyncTM control plane launched by Plume. OpenSyncTM creates a multi-industry, open service curation, delivery, management and support framework. WF-810B supports to be managed by Plume cloud remotely. This allows for curation, rapid and scalable delivery, comprehensive back office management, and enhanced support of cloud-based services to the consumer. With global deployments in mind, the WF-810B utilized standard USB-C AC adapter, allowing easy adaptation everywhere as locally certified USB-C AC adapters are available in every country.

Key Features

• Desktop placement
• Highest performance at 4.8Gbps aggregate throughput
• 2.4GHz 40MHz 2×2 802.11b/g/n/ac/ax
• 5GHz 160MHz band 4×4 802.11a/n/ac/ax
• WPA/WPA2-PSK(AES)
• BLE 5.0
• 5 x Integrated Wi-Fi antennas
• 1 x Integrated BLE antennas
• 1 x 2.5GbE WAN
• 1 x GE RJ45 LAN
• 1 x Status LED (multi-color)
• 1 x USB-C PD AC adapter
• Supports OpenSyncTM control plane
• Integrated with Plume Cloud management and Plume mobile management application

Application Scenario

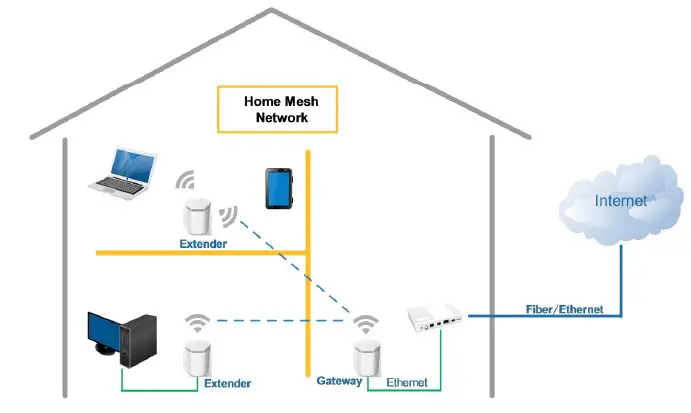

• Three WF-810Bs forms a Wi-Fi mesh network. One configured as the Gateway and the other two configured as the Wi-Fi Extender:


Software Features

Specification

Item	WF-810B

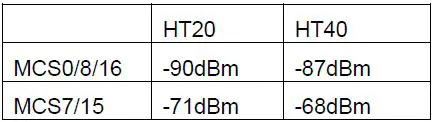

	802.11n:
	802.11a: -90dBm@6Mbps -74dBm@54Mbps

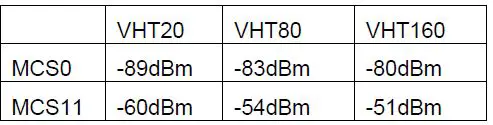

	802.11ac: 802.11ax:

Federal Communications Commission (FCC) Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Caution

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 44 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
