QUICK START GUIDE

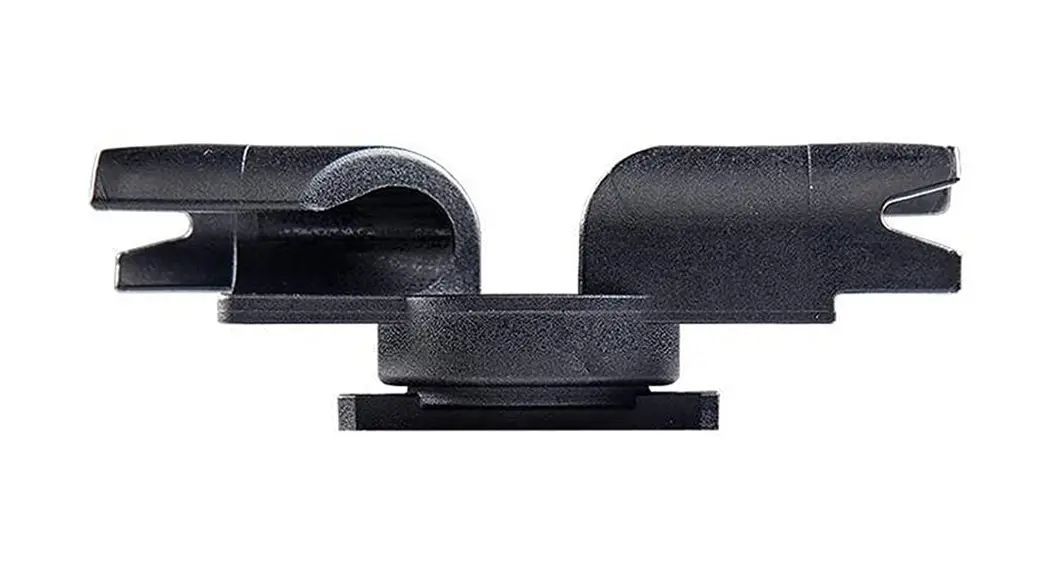

RUGO DRONE MOUNTS
P/N 85-023 (12 mm) – P/N 85-032 (16 mm)
P/N 85-041 (24-25 mm) – P/N 85-043 (30 mm)
HOW TO ATTACH MOUNTS

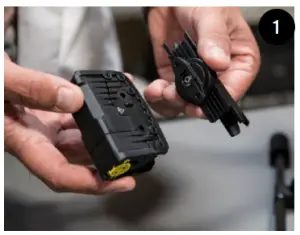

- Start by matching the correct side of the RUGO to the Drone Mount, making sure the metal tab of the RUGO fits into the DroneMount notch.

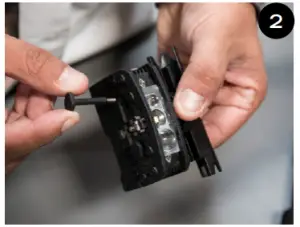

- Use the (2) two thumbscrews to attach the RUGO to the Drone Mount.

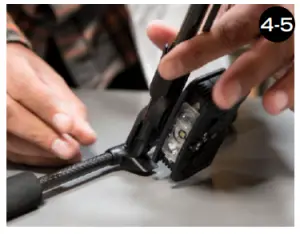

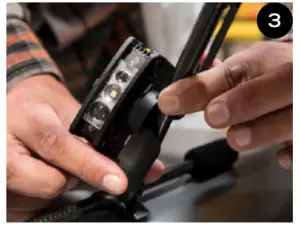

- To attach the Drone Mount to the Yuneec Typhoon Drone, position the open side of the mount against one of the landing gear legs and rotate clockwise until the Mount snaps into a vertical position
- Rotate Mount 180° on the drone landing gear leg so that the Rugo light sits inboard of the drone landing gear (between leg and camera).
- Slide the Drone Mount down the drone leg until it stops.
- Repeat for both sides.
- Reverse these steps to remove the Drone Mounts
WHAT’S INCLUDED:
(2) RUGO Drone Mounts
(2) Thumb Screws
GENERAL MAINTENANCE TIPS
As needed, wash your FoxFury Rugo Drone Mounts using a soft washcloth, clean water, and mild soap. When done, pat dry with a soft cloth.
WARRANTY AND OTHER INFORMATION
WARNINGS
FoxFury, LLC is not responsible for the incorrect use of any FoxFury Lighting product.When used for extended periods of time the Rugo will become HOT to the touch. Please use care when operating.Do not stare into LEDs for long periods of time or from a close range (less than 2 ft).FoxFury, LLC is not responsible for any injury or damage caused during the use of this product.Usage of this product must be supervised by an adult when it is being used by a minor.Any FoxFury product should be operated at speeds safe enough to maneuver around surrounding obstacles.Do not use under the influence of drugs or alcohol.
LIMITED LIFETIME WARRANTY
FoxFury, LLC (“FoxFury”) warrants this product to be free from defects in material for a lifetime of use except for batteries, LEDs, abuse, and normal wear. We will repair or replace this product should we determine it to be defective. This limited lifetime warranty excludes rechargeable batteries, chargers, switches, and electronics, which have a
2-year warranty with proof of purchase.
This limited lifetime warranty is given only to the original end-user of the accompanying product. If you purchased a product from someone other than an authorized FoxFury reseller/distributor or if the product was used, (including but not limited to demo models, show models, or refurbished products by someone other than FoxFury) prior to your
purchase, you are not the Original Purchaser and the product that you purchased is not covered by this warranty. This limited warranty is VOID if this Product has been altered or modified in any way (including but not limited to attempted warranty repair without authorization from Foxfury and/or alteration/removal of the serial number). To expedite warranty concerns, we encourage the end-user to register their FoxFury Product at www.foxfury.com/pages/warranty-registration.
THIS IS THE ONLY WARRANTY, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES ARE EXPRESSLY DISCLAIMED EXCEPT WHERE SUCH LIMITATION IS PROHIBITED BY LAW.
You may have other specific legal rights which vary by jurisdiction. Go to www.foxfury.com/pages/warranty for a complete copy of the warranty. Retain your receipt for proof of purchase.
CONTACT FOXFURY
FoxFury, LLC
Oceanside, CA 92056 USA
Toll-Free: 844-FOXFURY
Tel: 760.945.4231
Fax: 760.433.3650
Email: [email protected]
Web: FoxFury.com
All FoxFury products are designed in Oceanside, CA. All FoxFury products are manufactured with the highest quality USA and foreign parts. Products are assembled in either FoxFury’s controlled plant in Asia or the USA, under strict quality control.
1/2019
