Mobile Standheizung ohne Batterie
Portable Diesel Heater without Battery

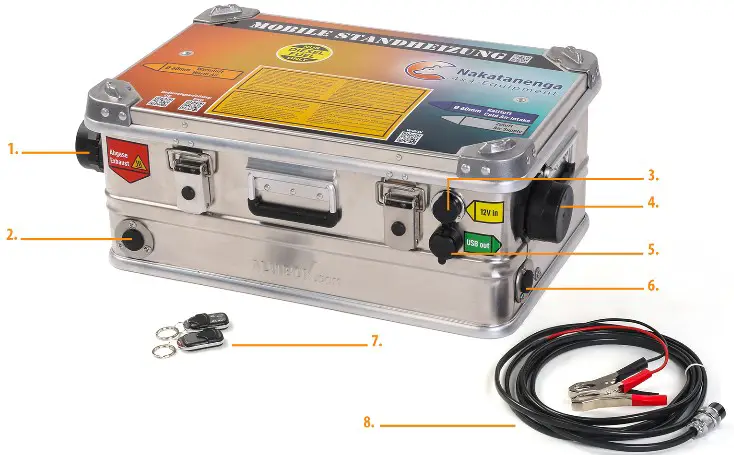

- Connection for warm air flex duct (Waluflex)
- Exhaust opening
- Power connection
- Cold air intake
- Double USB socket
- Air intake for combustion chamber
- Remote control
- Battery cable with terminal clamps
- Tank ventilation with check valve
- Fuel tap
- Fusebox
- Main switch
- Tank (Diesel), approx. 9 liters
- Connection for external temparature sensor
- Remote antenna
- Controller PU 5 (see separate manual)
- Voltage display
- On/Off switch for USB socket

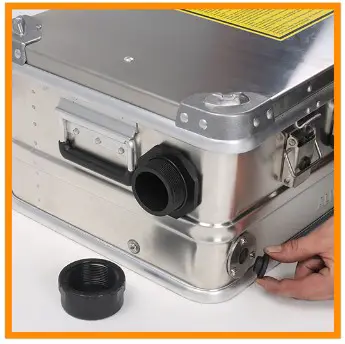

Preparation:
Remove ALL caps and plugs.

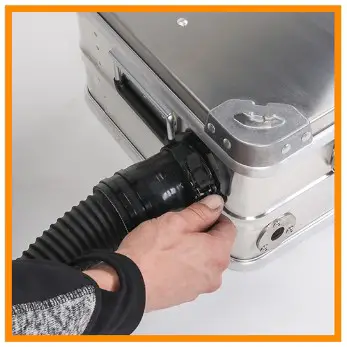

Connecting warm air:
Connect the warm air flex duct (left side of the box). The flex duct is NOT included in the delivery as Waluflex ducts can be ordered separately by the
meter, with or without collars, from Nakatanenga.

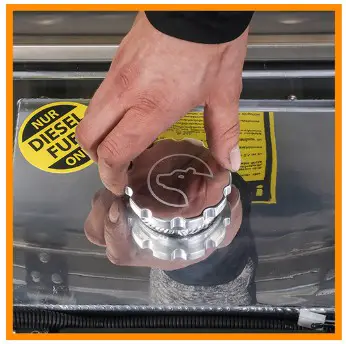

Filling the tank:
Fill the tank with DIESEL.
With double tank models, fill both tanks.
Capacity per tank approx. 9 liters of Diesel.

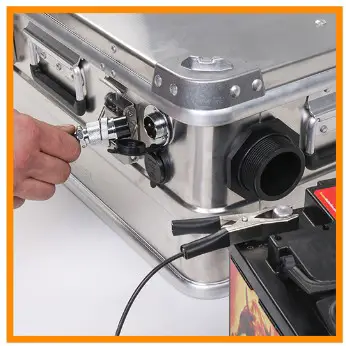

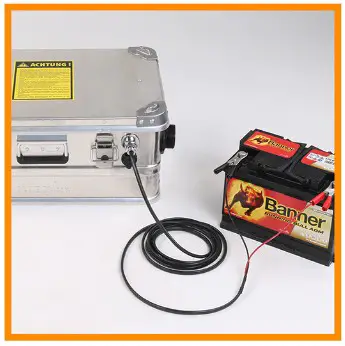

Connecting to 12 V power source:
To connect with a 12 V battery, use the connector cable supplied with the unit and shown here. (The batterie is NOT included in the delivery)
Alternatively, connect to the vehicle’s cigarette lighter socket.
The adapter cable can be ordered separately.
Please ensure that your onboard power socket is fused at 20 amps.

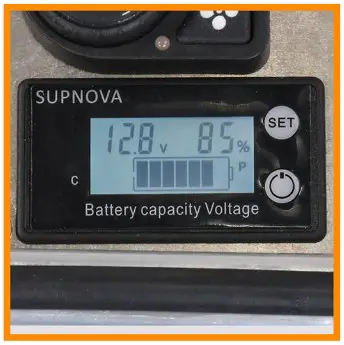

Battery capacity display:
The battery’s remaining capacity can be displayed in volts or percentage.

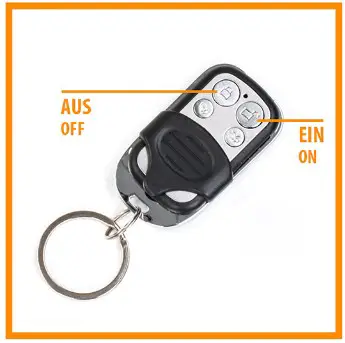

Remote control:
If the heater box is switched on by remote control, the heater will always run on maximum settings and will switch off automatically after 2 hours. The settings can be subsequently adjusted on the controller unit. If the heater box has been switched on manually and you want to switch it off remotely, then you need to press the remote’s ON button first (with audible click) and then the OFF button.
Please take note of all general warnings and safety instructions on the box itself and in the manuals!
QR code to the download link for all instructions
