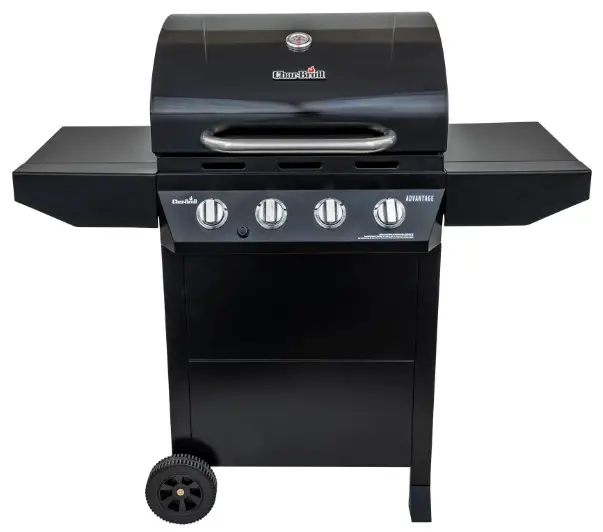

463258622 Advantage Pro 4 Burner Gas Grill
User Manual
463258622 Advantage Pro 4 Burner Gas Grill
WARRANTY PART
REPLACEMENT GUIDE – Strain Relief
NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from those on your particular grill model.
However, the method of assembly remains the same.
Each step shows removal and replacement of parts. Follow the steps in order to remove parts, then reverse the steps to replace all parts.

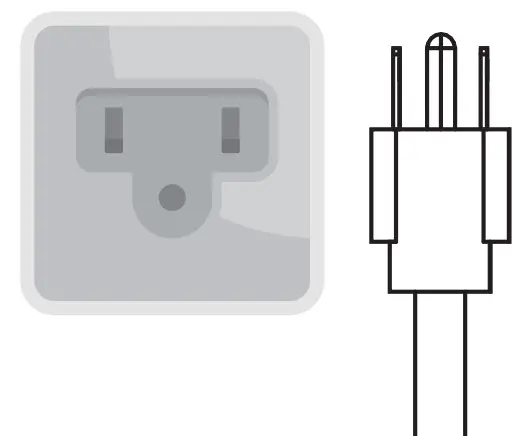

- Prior to any service, unplug power cord.

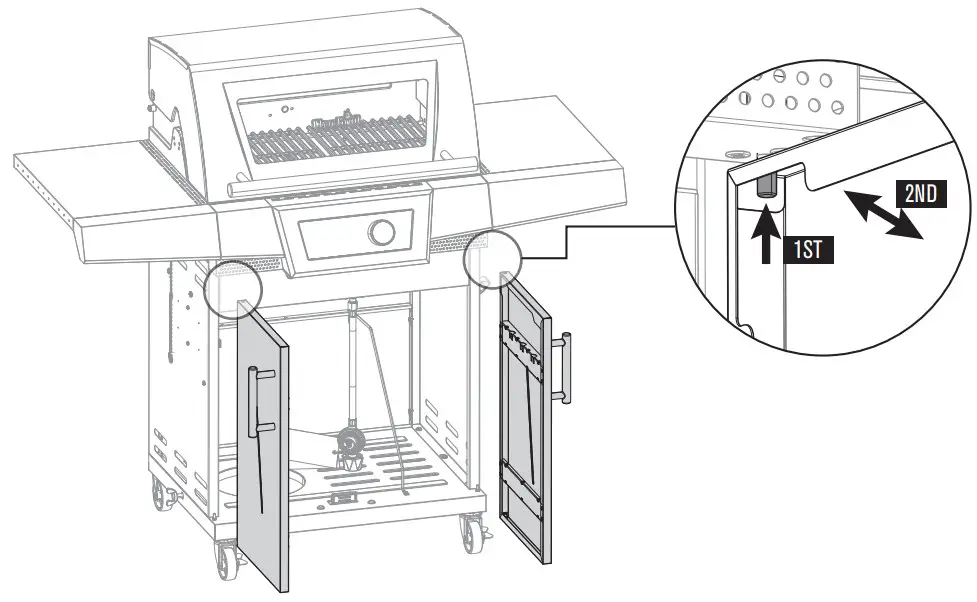

- Remove / replace Doors

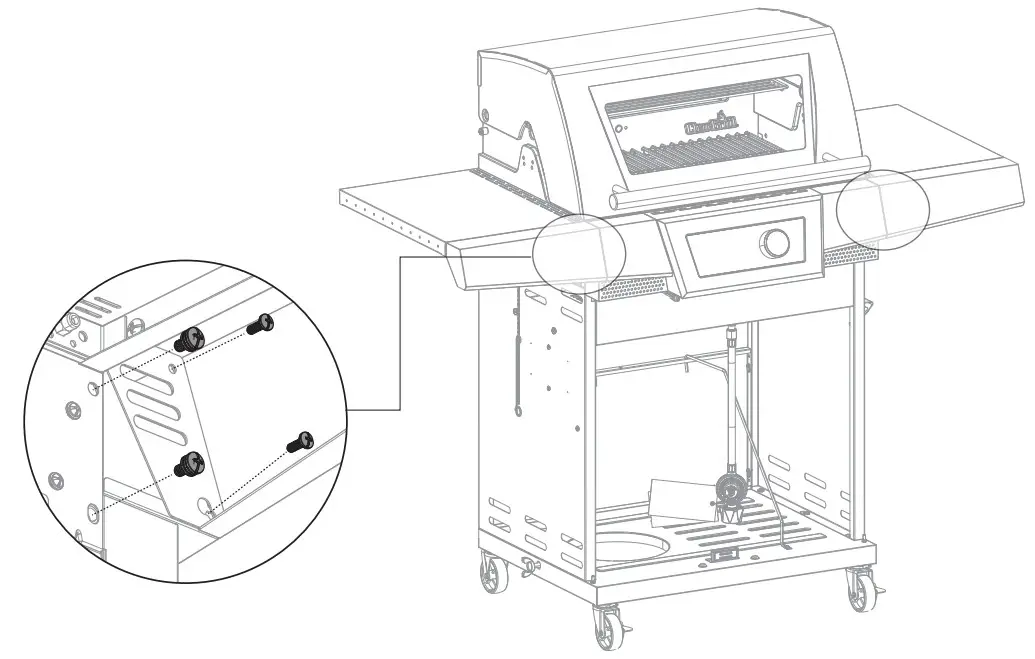

- Remove / replace Control Panel and Fascia Screws

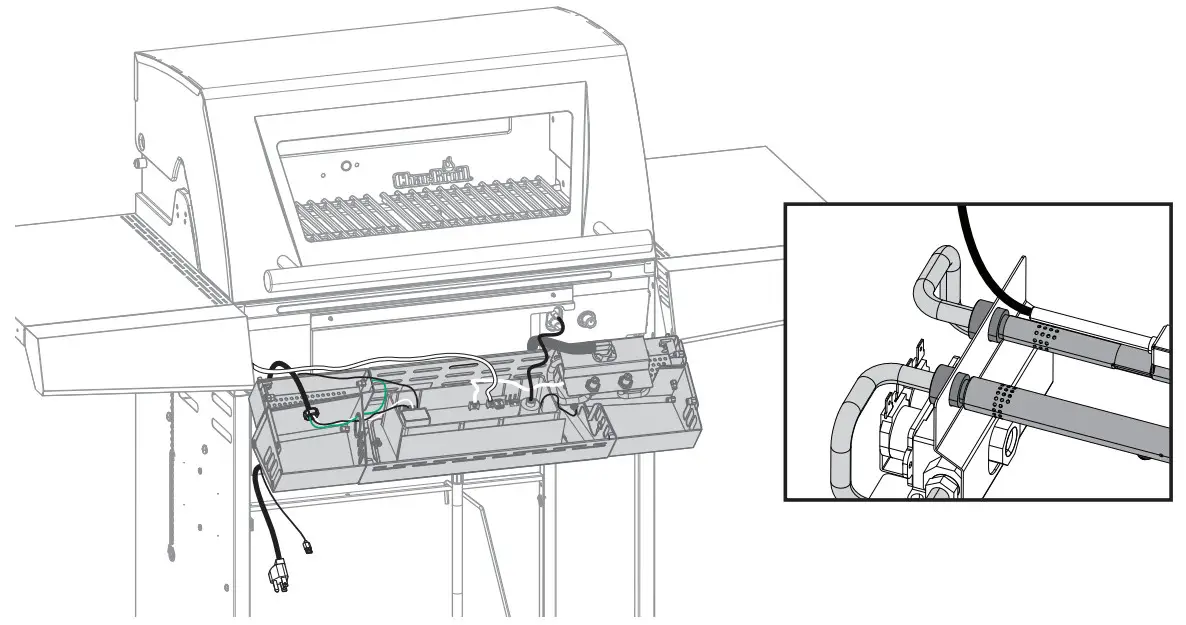

- Pull UFC straight out and rotate downward

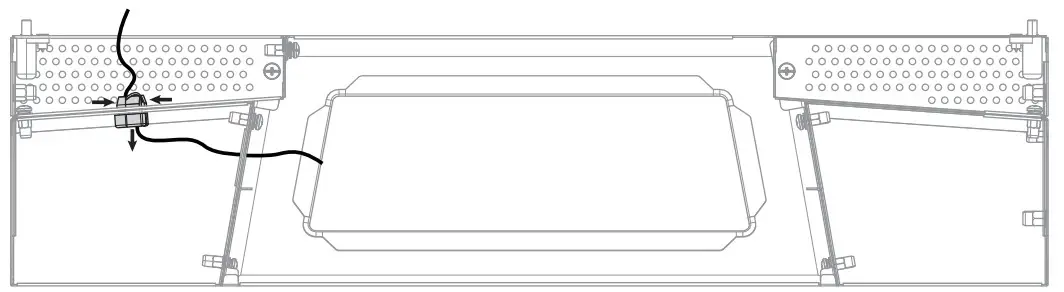

VERY IMPORTANT: Burner tubes must reengage valve openings when placing control panel assembly back on grill. - Remove / replace cable strain relief
VERY IMPORTANT: Burner tubes must reengage valve openings when placing control panel assembly back on grill.
