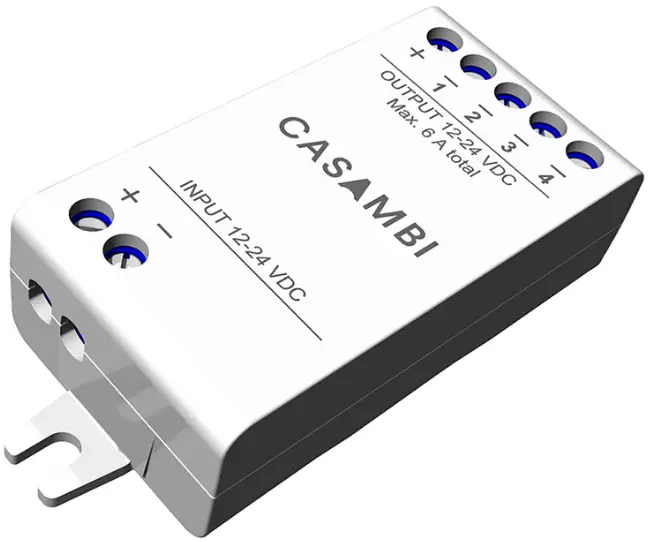

HALCYON CAS45 3501050 Casambi Proof Wireless Lighting
Features
- Flicker-free
- Dimming range: 1…100%
- Configurable constant current output via dip-switch
- Protections: open circuit, short circuit, overload, overtemperature
- Suitable for use in emergency lighting systems
- Protection class II
Specifications. Characteristics
Technical data
| Model No | CAS45 350I 050 |
| Input Voltage | 220-240VAC |
| Input Frequency | 50/60Hz |
| Input Current (Full load) | 0.28A |
| Maximum Input Power | 45W |
| Standby power | 0.5W |
| Power Factor (Full load) | ?:0.95 |
|
Output | 350mA,10 -50V,3.5-l 7.5W 500mA, I 0-50V,5-25W 600mA, I 0-50V,6-30W 700mA I 0-50V,7-35W 800mA, I 0-50V,8-40W 900mA, I 0-50V,9-45W 1050mA,10-43V,1 0.5-45.15W |
| Wireless mode | Bluetooth 4.0 |
| Operating frequencies | 2.4GHZ |
| Max. communication distance | Indoor up to 20m, outdoor up to 50m |
| Operating Ambient Temperature | -20 … + 45C |
| Case Temperature at le Point | 90C |
| Dimensions (LxWxH) | 320x35x24mm |

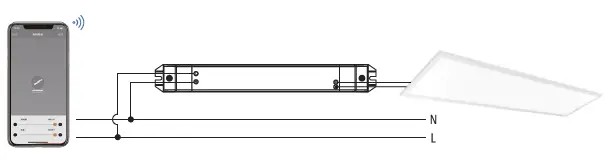

Wiring
Wire info
Input solid/stranded: 0.75-2.5mm2 Output solid/stranded: 0.5-1.5mm2 Strip length: 8± 1 mm

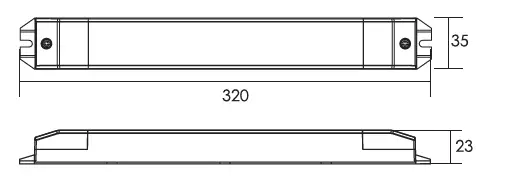

Dimensions (mm)
Dip Switch Setttngs
| 1 | 2 | 3 | 4 | Uout | lout |
| OFF | OFF | OFF | OFF | 10-50V | 350mA |
| ON | OFF | OFF | OFF | 10-50V | 500mA |
| OFF | ON | OFF | OFF | 10-50V | 600mA |
| OFF | OFF | ON | OFF | 10-50V | 700mA |
| ON | ON | OFF | ON | 10-50V | 800mA |
| ON | OFF | ON | ON | 10-50V | 900mA |
| OFF | ON | ON | ON | 10-43V | 1050mA |
- The factory default setting 350mA

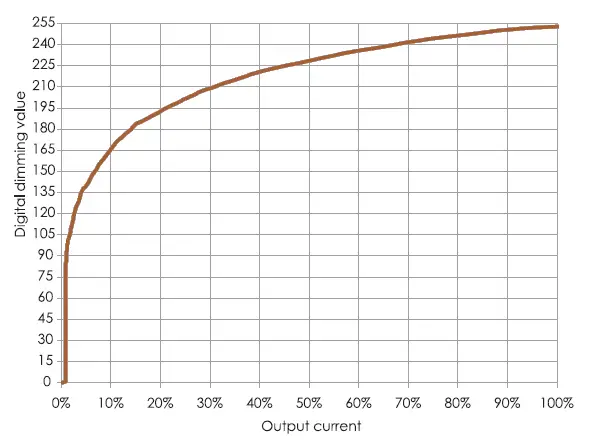

Dimming Characteristics
| Dimming range /ch | Dimming technique |
| 1%-12.5% | Pulse Width Modulation (PWM)* |
| 12.5%-100% | analog modulation |
- PWM dimming frequency 3.4kHz
Installation Notes
- Cut off the main power supply before installation.
- Do not install devices behind metal objects, such as refrigerators, air conditioners, etc. Communication range is highly restricted by surroundings and obstacles, such as walls and building materials as the wireless signal transmission will be affected.
- Installation of the driver in a high ambient temperature environment may limit the maximum output power due to overtemperature protection.
APP Installation
- Search Casambi in an opp store
- IOS: requires IOS 9.0 or later. Android: requires Android 4.4 or later.
- Devices must support Bluetooth 4.0.
