Bissell Pet Hair Eraser Slim Cordless Vacuum Cleaning Filters Instruction Manual

BISSELL Pet Hair Eraser Slim Cordless Vacuum Cleaning
Filters Instruction Manual

Pet Hair Eraser Slim Cordless Vacuum Cleaning Filters | Support

Maintaining your filters is very important to the function of your vacuum

The steps below provide instruction on how to clean and maintain your Dirt Tank and Filters

• If you are experiencing issues with reduced suction you’ll want to follow the complete list of steps before continuing > Go to No Suction

These steps are considered a part of routine maintenance

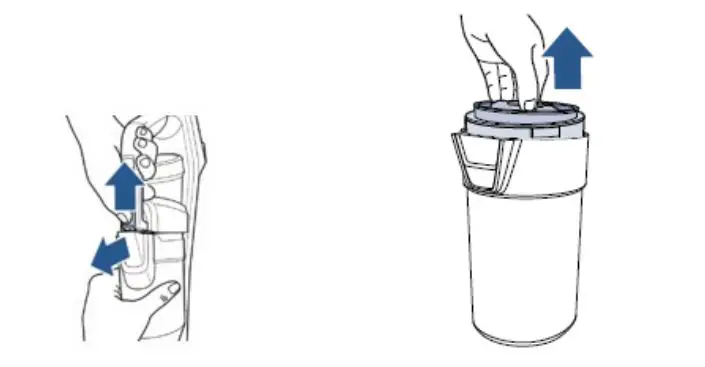

• Remove Dirt Tank from Hand Vac
• Grip the top portion of tank and pull up to remove the separator (the bottom ring of the separator will activate to “wipe” debris from screen & deposit into tank)
  o Clean debris from Separator
  o Empty debris from Dirt Tank

• Twist the top to remove Filter from Separator
o Remove Pre Motor Filter and clear debris (machine should not be used without Filters installed)
• Pre Motor Filter can be rinsed in warm water > Allow to completely air dry (24 – 48 hours) before reinstalling

• Insert the Filter with tag towards the Filter Frame
• Insert Filter Frame into Separator > Separator into Dirt Tank
• Attach Dirt Tank to Hand Vac
o You should hear a click when Tank is secure

• The Post Motor Filter is located on the back of the Hand Vac
o Pinch the latch on the back of the Hand Vac > Remove Filter Cover
o Press up on bottom tab to pull Filter out
o Post Motor Filter can be rinsed in warm water > Allow to completely air dry (24 – 48 hours) before reinstalling
