SONBUS SR9330 Handheld Soil Recorder
Technical Parameters
| Technical parameter | Parameter value |
| Brand | SONBEST |
| Moisture Temperature range | -30℃~80℃ |
| Moisture Temperature accuracy | ±0.5℃ @25℃ |
| Moisture measuring range | 0~100% |
| Moisture measuring accuracy | ±3% @25℃ |
| Communication Interface | USB |
| Default baud rate | 9600 8 n 1 |
| Power | DC3.3~4.2V |
| Storage | 512000bits |
| Running temperature | -40~80°C |
| Working humidity | 5%RH~90%RH
|

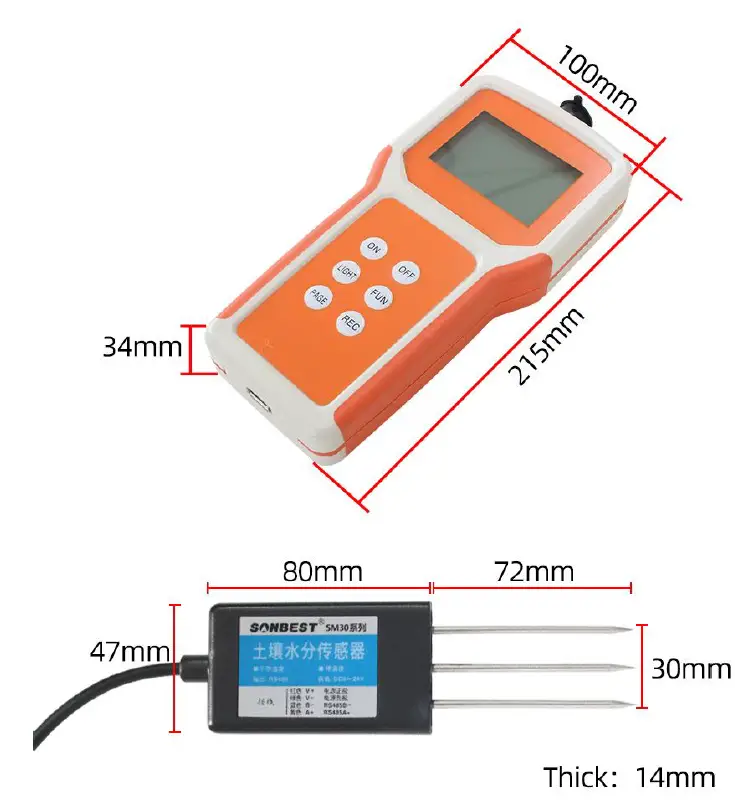

Product Size
Application solution

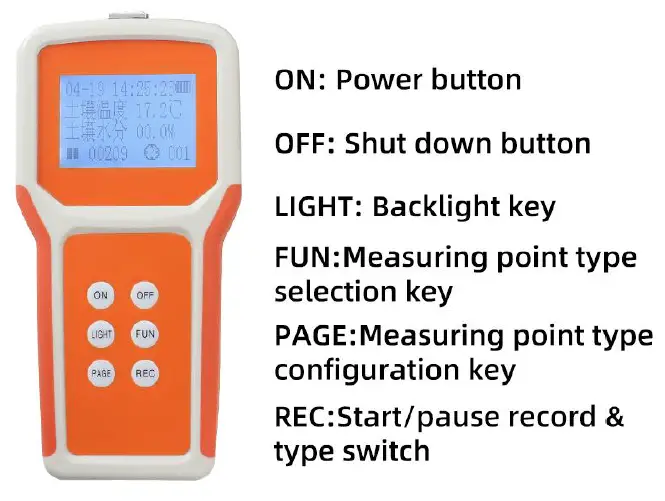

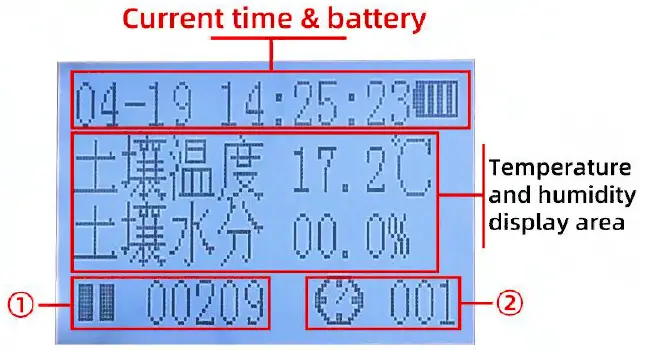

Current time & battery
- Record start/pause & record ti1mes di1s.play Press the “RIEC’· key and 1the pause icon on the left side turns into a circular icon and starts recording) Press the “‘RIEC11 key again to tu rin the circ1Ular icon on the· left side into a pause icon and stop recording
- Record time interval display (unit: s) the display setting needs to be connected to the. computer through a USB cable for setting

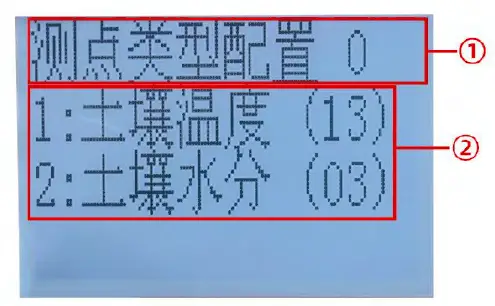

- Measuring point type configuration (need to press “PAGE” to enter the setting) When pressing the “FUN” key, the number on the measuring point type configuration can be switched back and forth between “l” and “2” the initial value is 0
- Measuring point selection When using the “FUN” key to select the measuring point that needs to be changed, presses the “REC” key to change the measuring point type (The measuring point has been adjusted to the
the corresponding configuration at the time of purchase, no need to modify)
Measurement methods

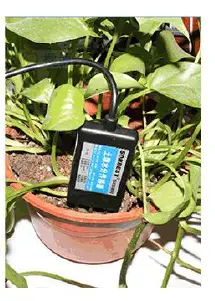

Rapid measurement
Choose a suitable measurement location, avoid rocks, cut the surface soil according to the depth required for measurement, maintain the original tightness of the underlying soil, hold the sensor vertically and insert it into the soil, do not shake left and right when inserting, to ensure close contact with the soil.

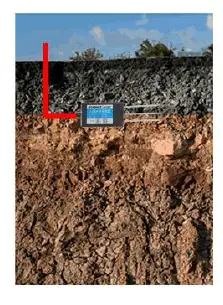

Buried measurement method
Dig a pit with a diameter of about 20cm vertically, and insert the sensor needle into the pit horizontally according to the measurement needs, and fill the pit to ensure close contact with the soil. After the the sensor is stable for a period of time, continuous long-term measurement and recording can be performed
Disclaimer
This document provides all information about the product, does not grant any license to intellectual property, does not express or imply, and prohibits any other means of granting any intellectual property rights, such as the statement of sales terms and conditions of this product, other issues. No liability is assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and use of this product, including the suitability for the specific use of the product, the marketability or the infringement liability for any patent, copyright or other intellectual property rights, etc. Product specifications and product descriptions may be modified at any time without notice.
