Quio Qm-950-4-hf-2.0 Chip Card Reader User Manual

QUIO QM-950-4-HF-2.0 Chip Card Reader

RS232C Communication

QM-950-4-HF-2.0 initialization value is set using RS232C communication port.

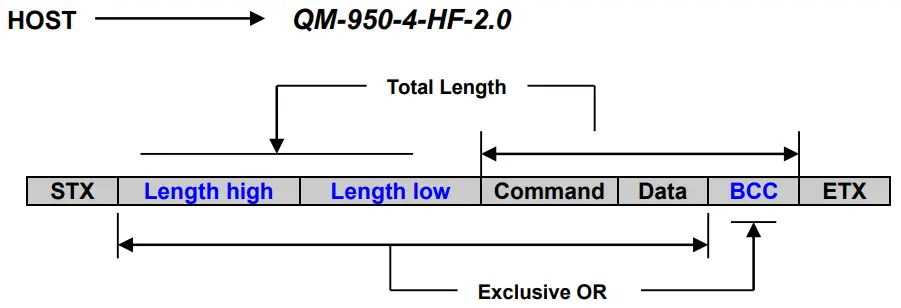

Communication basic frame format

Response LIST

Command LIST

CmdGetVersion

Host

Response

CmdSetDeviceAddress

Host

Response

CmdSetRS485

Host

Response

CmdCardDataHoldTime

Host

Response

((CardDataHoldTime[0]*256) + CardDataHoldTime[1])*10msec

CmdGetInitValue

Host

Response

ModBusInitalValue

QM-950-4-HF-2.0 ModBus

ReadCardData (Read Input Register 0X04)

Host QM-950-4-HF-2.0

Ex) ** DeviceAddress= 0x01,
StartAddress= (StartAddressHi *256)+ StartAddressLo = 0x0000,
Quantity= (QuantityHi *256)+ QuantityLo = 0x000A

QM-950-4-HF-2.0 Host

ByteCount= ((QuantityHi*256)+ QuantityLo)*2
Ex) ** ** DeviceAddress= 0x01, Card UID 4Byte = 0x76,0x40,0x9b,0xf0
PosSize= (((StartAddressHi*256)+ StartAddressLo)*2) + (((QuantityHi*256)+ QuantityLo) *2)
if(PosSize >= 101){
// error handling

}
else{
// normal processing
ByteCount= (((QuantityHi*256) + QuantityLo) *2);
ModBusBufPos= (((StartAddressHi*256) + StartAddressLo)*2); //ModBus Buffer Position

}

Ex) UID 0X12, 0X34, 0X56,0X76

LED Red On(Write Single Coil 0X05)

LED Red On/ LED Blue Off

Host QM-950-4-HF-2.0

QM-950-4-HF-2.0 Host

LED Blue On(Write Single Coil 0X05)

LED Red Off/ LED Blue On

Host QM-950-4-HF-2.0

QM-950-4-HF-2.0 Host

Status= (OutValueHi*256)+ OutValueLo;
If(Status!=0){
RedLED_On_BlueLED_Off();
}
else{
BlueLED_On_RedLED_Off();
}

Buzzer On(Write Single Coil 0X05)

Host QM-950-4-HF-2.0

QM-950-4-HF-2.0 Host

Buzzer On(Write Single Coil 0X05)

Host QM-950-4-HF-2.0

QM-950-4-HF-2.0 Host

Case Sensor On (Read Discrete Input 0X02)

Host QM-950-4-HF-2.0

QM-950-4-HF-2.0 Host
Case Open

Case Close

DeviceAddressSet (Write Single Register 0X06)

Host QM-950-4-HF-2.0

DeviceAddress= OutValueLo;
** OutValueHi is always 0x00
QM-950-4-HF-2.0 Host
DeviceAddressSet Ok

DeviceAddress Fail

Changed values take effect immediately

RS485 Communication Speed (Write Single Register 0X06)

Host QM-950-4-HF-2.0

Communication Speed= OutValueLo;
** OutValueHi is always 0x00

QM-950-4-HF-2.0 Host
DeviceAddressSet Ok

DeviceAddress Fail

Changed values take effect immediately

Card Data Hold Time (Write Single Register 0X06)

Host QM-950-4-HF-2.0

CardDataHoldTime= (OutValueHi*256)+OutValueLo;
10msec/unit
Ex) 1 second when CardDataHoldTime=100
QM-950-4-HF-2.0 Host
DeviceAddressSet Ok

DeviceAddress Fail

Changed values take effect immediately

Input/Out Signal

1. BEEP
   Input signal
   When Low, Buzzer is On.
2. Tamper
   Output as LOW when Tamper Sensor is detected.
3. LED
   Input signal
   When Low, Blue LED/ Red LED Blinking

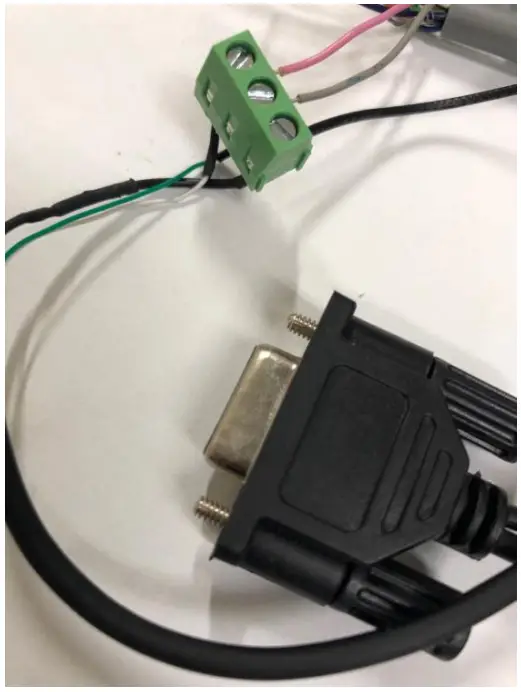

Connection

RS-485 TEST Connection

RS232 Connection
