Magnetic & Wireless
Powerbank 5000mAh
Rugged Connect
User manual

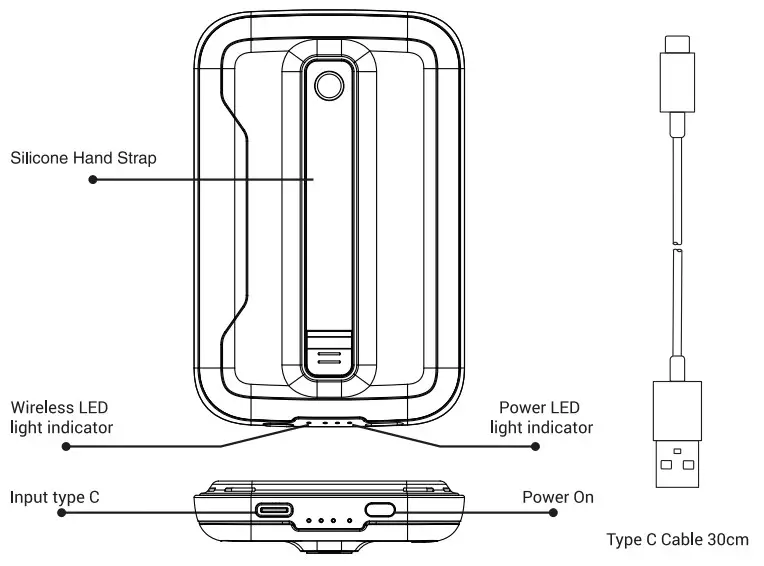

Illustration
Specification
| Size | 102.25x 66.36×17. 7 mm |
| Model No. | P8103-0506 |
| Capacity | 5000 mM |
| Type C Input | PD18W:5V/3A,9V/2A,12V/1.5A |
| Wireless Output | 15W (Max) |
| Type C Output | PD 18W:5V/3A,9V/2A,12V/1.5A |
| Total Output | 5V/3A |
Operation Instructions
Wireless charging: Put a wireless charging phone on the MAG ( iPhone 12 series can be attracted by magnetic force directly, others need to be used together with a phone case that has a metal ring ). Press the power button, and the indicator light will turn on, In 12 sec the (wireless LED indicator) light turns off and just the Power LED keeps on.

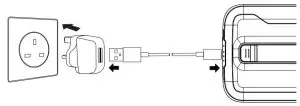

Recharge the power bank: Connect a USB cable to the USB adapter, connect the other end of the Type C port to the input port on the power bank. Plug the USB adapter into the outlet to begin charging.
Caution: Risk of fire and Burns, Do Not Open, Crush, Heat Above 45°C or Incinerate. Follow Manufacturer’s Instructions.
Support:
If you have any questions or need assistance, please contact our customer service team at [email protected] or call 1-844-FUEL ROD (1-844-383-5763).
Visit www.fuel-rod.com
Made in China
