Magnetic & Wireless Powerbank 5000mAh
Compatible with Magnetic COVER
User manual

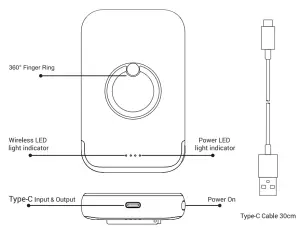

ILLUSTRATION
Specification
| Size | 3.97.2.54’0.76 Inch |
| Model No. | 43523 |
| Capacity | 5000m/4i/18.5VA) |
| Type-C Input & Output | PD18W(5V/3A,9V/2A,12V/1.5A) |
| Wireless Output | 15W Max. |
| Total Output | 5V/3A |
Operation Instructions
Wireless charging: Put a wireless charging phone on MSA05 (Phone 12 series can be attracted by magnetic force directly, others need to be used together with a metal ring). Press the power button, and the indicator light will turn on, 12 sec the (wireless LED indicator) light turns off and just the Power LED keeps on.
Type-C charging: use a Type-C cable to connect with the MSA05, the other end connects to the mobiles, the MSA05 will charge for the mobiles automatically
Recharge the power bank MSA05: Connect a USB cable (include) to the USB adapter, connect the other end of the Type-C port to the input port on the power bank. Plug the USB adapter into the outlet to begin charging.
Attention
Read all the instructions before using the product. Do not subject the product to direct sun and high temperatures. Do not place on a surface that is wet from water or cleaning solvents. Do not puncture, throw, drop, bend or modify. Stop using the product when it generates an unusual smell, heating, distortion or any other abnormalities. Please keep it out of the reach of children.
CORRECT DISPOSAL FOR THIS PRODUCT
This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
CAUTION
Risk of Fire and Burns. Do Not Open, Crush, Heat Above 60t, or Incinerate.
Follow Manufacturer’s Instructions.
FCC Caution：
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
