Arkfeld UV and White Light Dual Light Source EDC Flashlight
User Manual
Arkfeld UV is a white light + UV dual light source portable rectangular EDC flashlight.

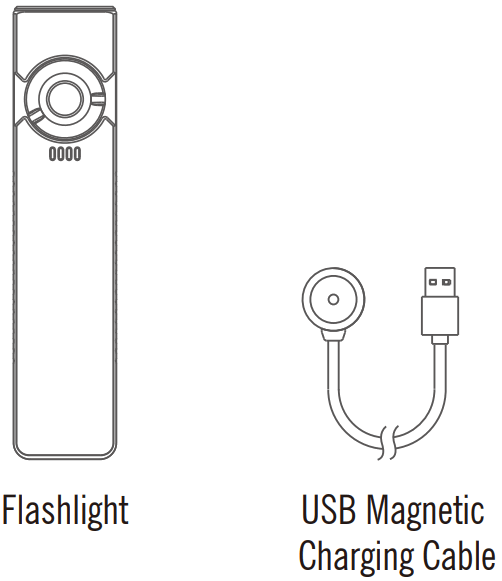

IN THE BOX
Flashlight
COOL WHITE CCT: 5700~6700K CRI:70
NEUTRAL WHITE CCT: 4000~5000K CRI:70
 |  |
| (L)110*(W)25*(H)15mm (L)4.33*(W)0.98*(H)0.59in | Working temperature: 0-40°C |
 |  |
| Optical Power(Typ.): 580mW Max Runtime: 4h Wavelength(Typ.): 365nm | Lithium Polymer Batteries 3.88Wh (1050mAh / 3.7V) |
* Above data are tested per ANSI/NEMA FL 1-2009 standard in Light’s labs for reference.
Note: The maximum output brightness will decrease as the battery voltage decreases.
USB Magnetic charging cable
| Cable length | 0.5m |
| Input | USB-A 5V 1A |
| Output | CC&CV 4.2V±0.05V 1A |
| Time to fully charge | About 2 hours |
 |  |
 |  |
 | |
Multi-language dictionary, see Table 3;

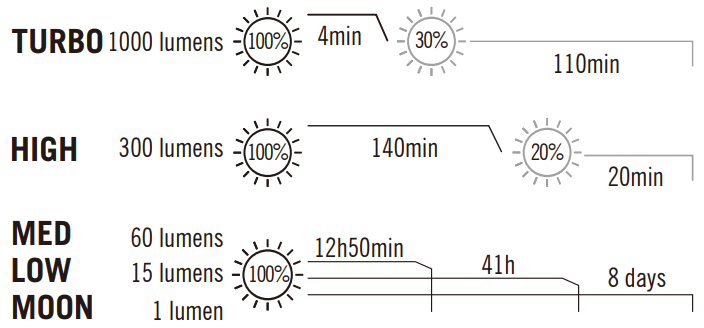

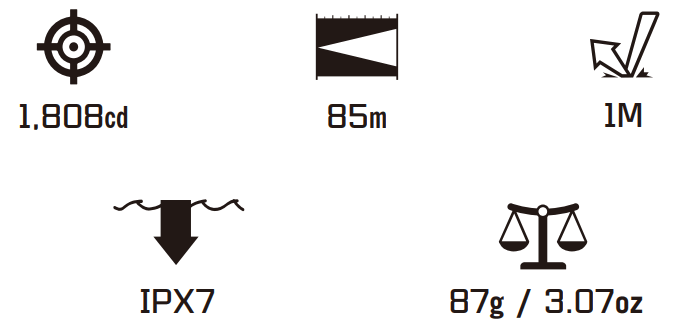

1. Refer to Table 1 and Table 2 for product parameters;
2. The center button operation guide is as follows:

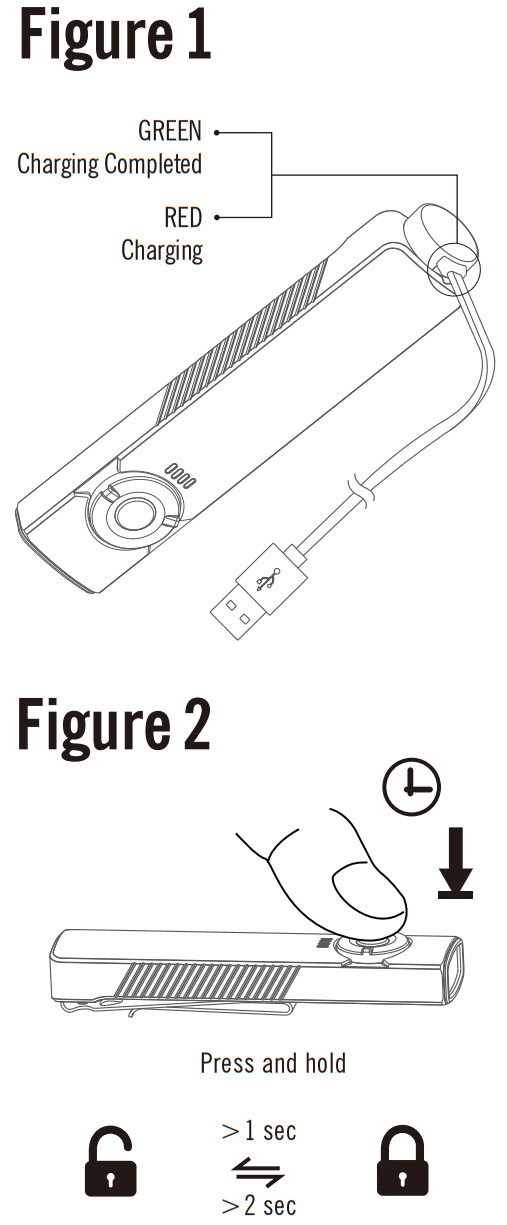

2.1 Charging, see Figure 1;
2.2 Lock/unlock, see Figure 2;

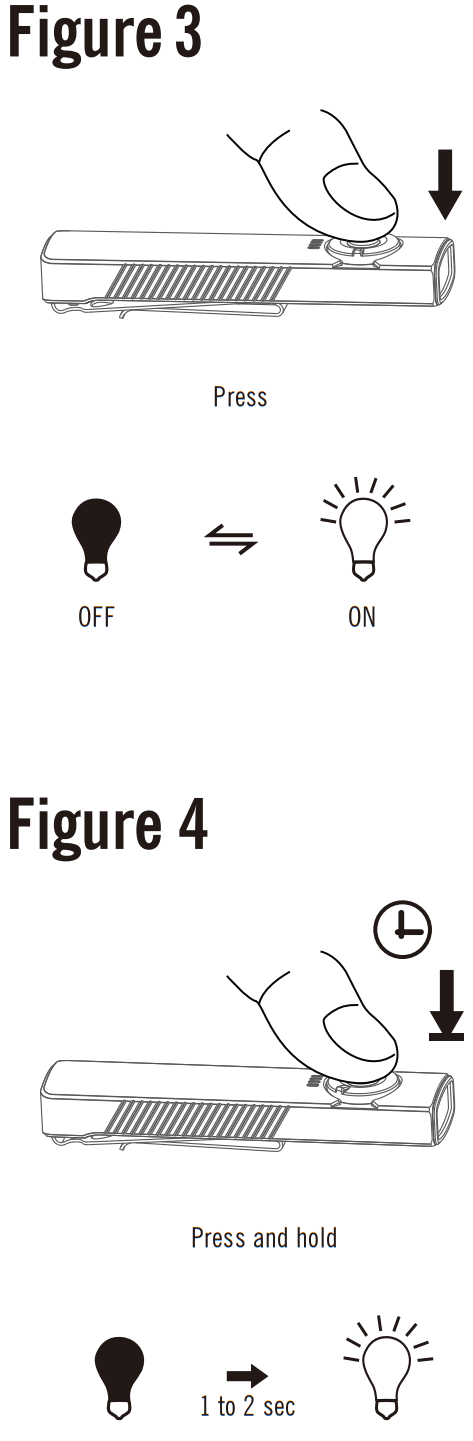

2.3 Turn on/off the flashlight, see Figure 3;
2.4 Moonlight (only for white light mode), see Figure 4;

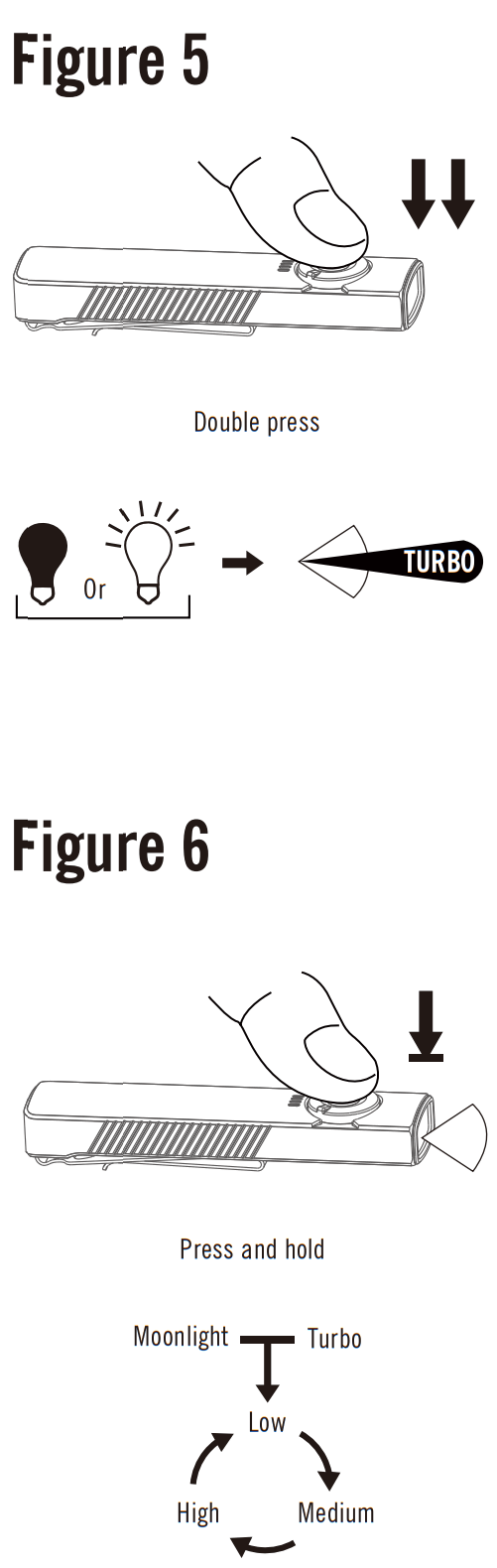

2.5 Turbo (only for white light mode), see Figure 5;
2.6 Change the brightness (only for white light mode), see Figure 6;

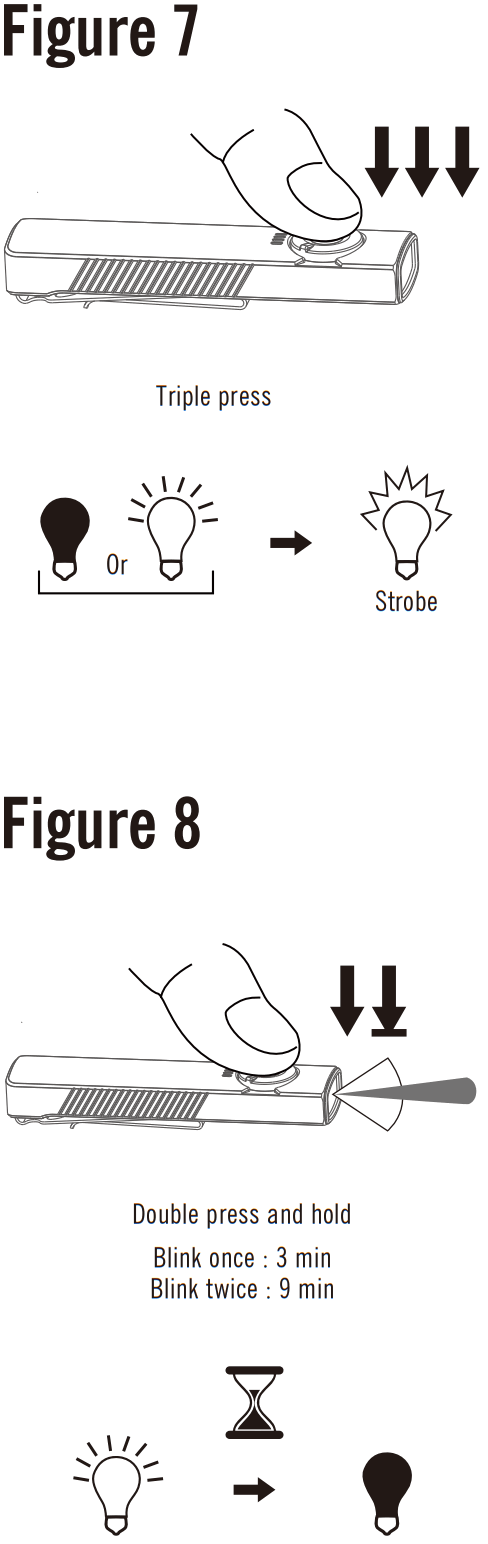

2.7 Strobe (only for white light mode), see Figure 7;
2.8 Timing (only for white light mode), see Figure 8;

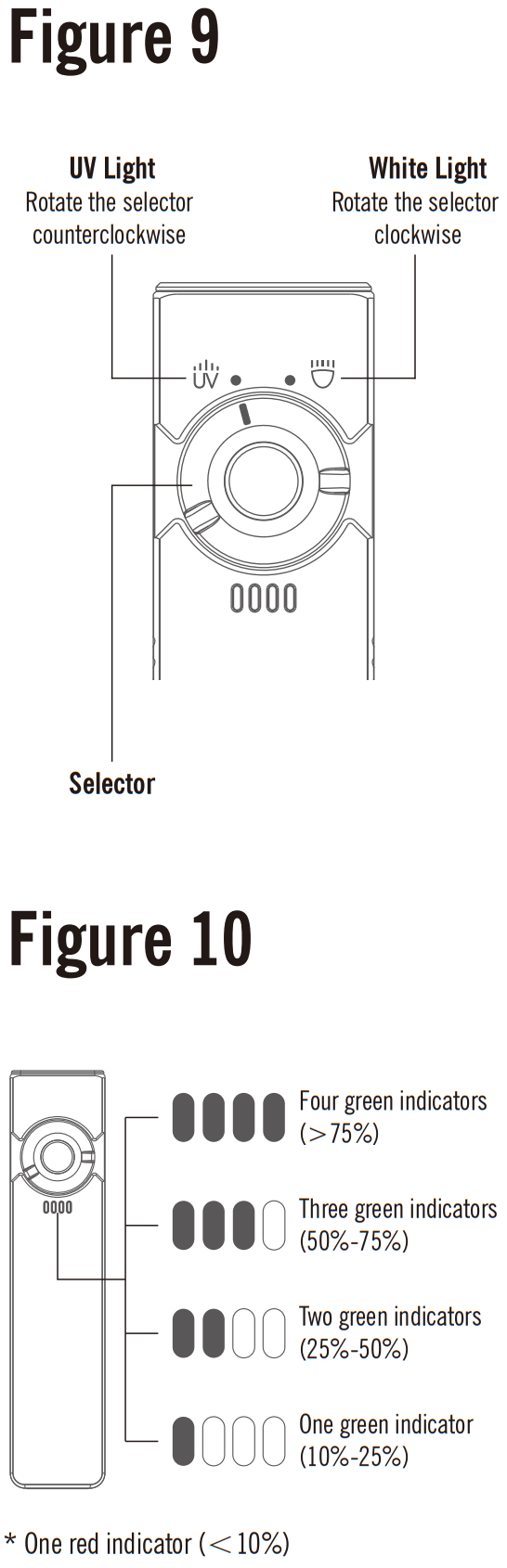

2.9 Switch modes with the selector, see Figure 9;
2.10 Battery indicator description, see Figure 10.
Multi-language dictionary
| Moonlight | Low |
| Medium | High |
| Turbo | Strobe |
| Press | Double press |
| Double press | Triple press |
| Triple press | Blink once |
| Blink twice | Blink twice |
| White Light | Selector |
WARRANTY
Within 30 days of purchase: Contact the original seller for repair or replacement.
Within 2 years of purchase: Contact Olight for repair or replacement.
USB magnetic charging cable: One year.
This warranty does not cover normal wear and tear, modifications, misuse, disintegrations, negligence, accidents, improper maintenance, or repair by anyone other than an Authorized retailer or Olight itself.
USA Customer Support
[email protected]
Global Customer Support
[email protected]
Visit www.olightworld.com to see our complete product line of portable illumination tools.
Dongguan Olight E-Commerce Technology Co., Ltd.
4th Floor, Building 4, Kegu Industrial Park, No 6
Zhongnan Road, Changan Town, Dongguan City,
Guangdong, China.
Made in China
3.4000.0512
A. 12, 20, 2022
