SNMX2993 52 Inch Brown Standard Semicircle Glass Top Console Table
Instruction Manual
SNMX2993 52 Inch Brown Standard Semicircle Glass Top Console Table
Read instructions carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment. Remove all components from pack and place top down on soft surface such as carpet or cloth to prevent scratching the finish. Identify and count all parts as specified below.
It is recommended to use two or more persons during the assembly process.
| Parts List | ||||
| NO. | DESCRIPTION | DRAWING | SIZE | Q’TY |
| A | Top |  | 52″*20″ | 1pc |
| B | Leg |  | 29-1/8″H | ipc |
| C | Leg |  | 29-1/8″H | ipc |
| D | Leg |  | 29-1/8″H | 2pcs |
| E | Bottom |  | 37-3/4″*12-1/8′ | 1pc |
| F | Glass |  | 44-1/2″12-3/41 | 1pc |
| Hardware List | ||||
| NO. | DESCRIPTION | DRAWING | SIZE | Q’TY |
| 1 | Bolt |  | 1/4″18mM | 16pcs |
| 2 | Spring Washer |  | 1/4″ | 16pcs |
| 3 | Flat Washer |  | 1/4″ | 16pcs |
| 4 | Allen Key |  | 5/32″ | 1pc |
ASSEMBLY INSTRUCTION

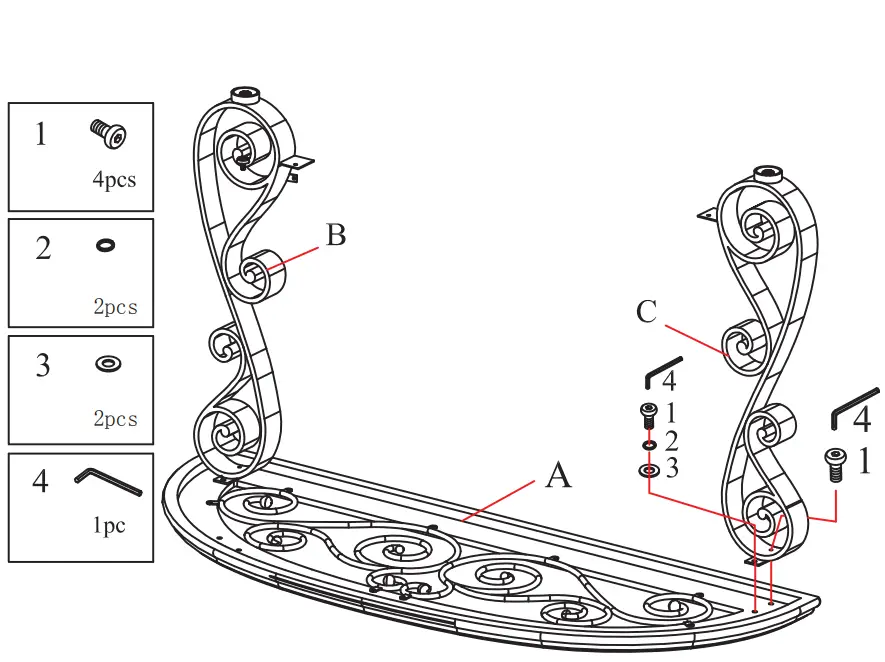

Step 1
Attach the Leg (B) and Leg (C) to top (A), tighten them using Bolt (1 ), Spring Washer (2) and flat Washer (3) by Allen Key (4).
Step 2
Attach the bottom (E) to Leg (B) and Leg (C) , tight using Bolt ( 1 ), Spring Washer (2) and flat Washer (3) by Allen Key (4).
Note: don’t over tighten before shelf and all bolts are installed.

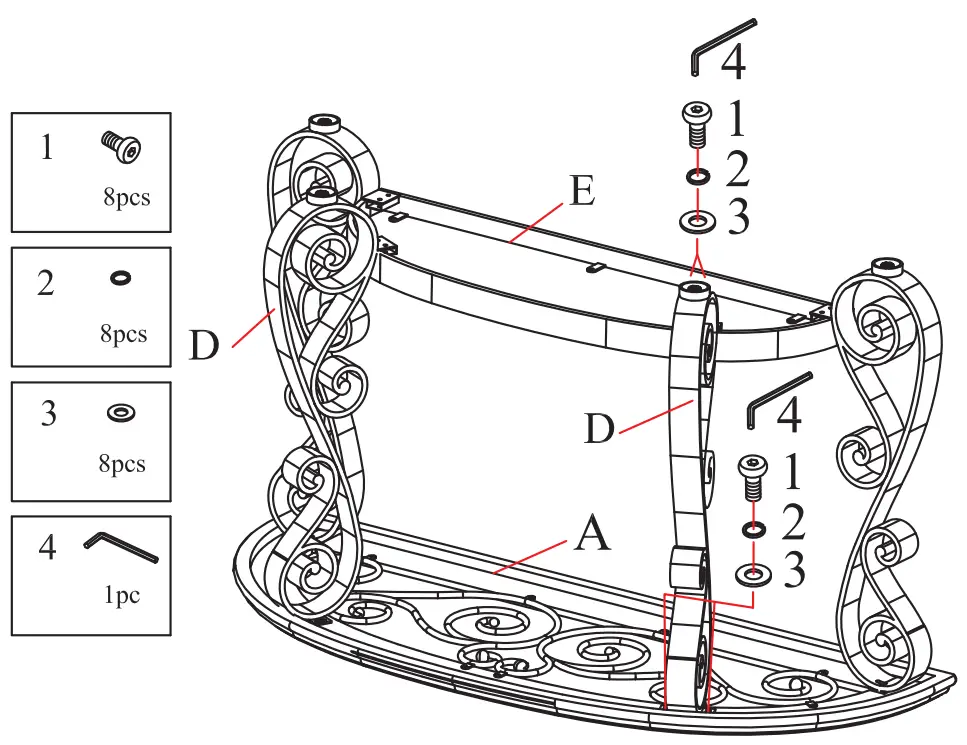

Step 3
Attach the Leg (D) to Top (A) and Bottom (E) , tighten connect using Bolt (l),Spring Washer (2) and flat Washer (3) by Allen Key (4).

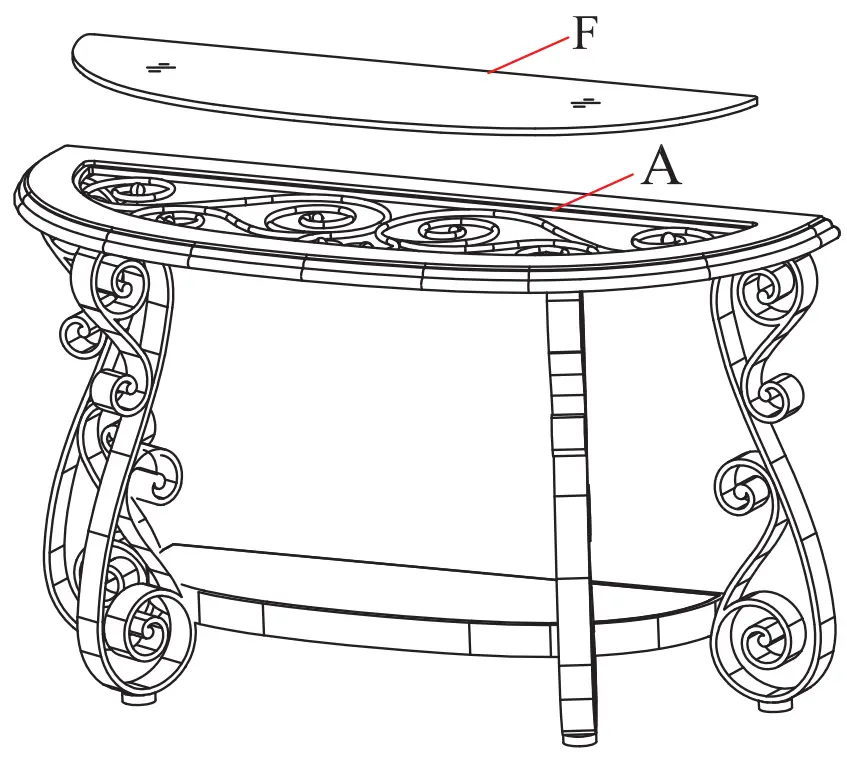

Step 4
Put the Glass (F) into the Top (A).
Cleaning instructions: Clean using soft cloth
