Little Sun Childs Vehicles S2688 Ride On Car
Instruction Manual

DEALERS MUST TRANSLATE THEIR OWN LANGUAGE OF THE MANUAL INSTRUCTIONS BELOW FOR YOUR MARKET.
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE.
Styles and colors may vary
Keep the package away from children and dispose of it properly before use

Specification：

Packing list：

Assembly tools required:

Cross screwdriver (not included)

WARNING!
FOR THE SAFETY OF YOUR CHILDREN, PLEASE READ ALL WARNINGS AND ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.

• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for adult assembly only. Keep children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.

Operation Instruction:

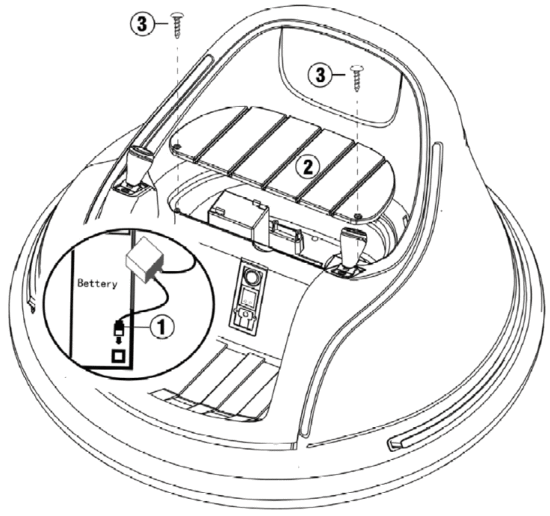

A.  Power Connecting& Install seat

1.  Open the battery under the seat, connect the battery terminals (red to red, Black to black)
2. Cover the seat on the battery
3. Fix the seat with a screw by cross screwdriver

B. Function introduction （Optional）

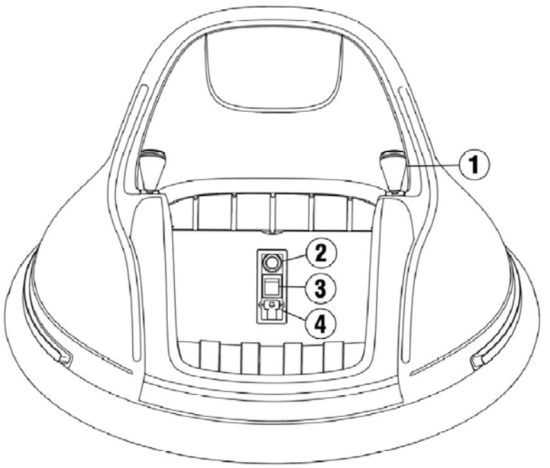

Optional 1

1. Forward-backward button: control the car forward or backward, the middle is stop
2. Light button: Turn on /off the light
3. Power button: Turn the vehicle on and off
4. Socket: Charge

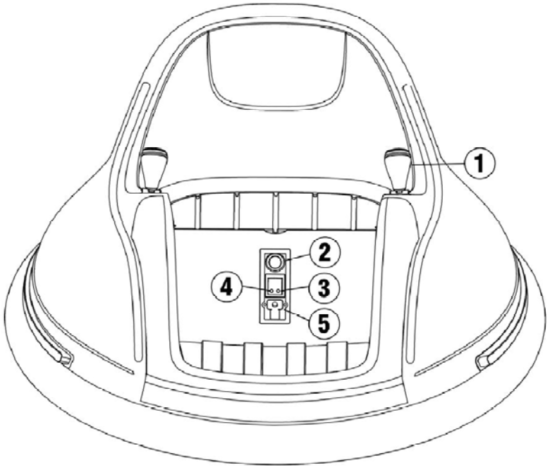

Optional 2

1. Forward-backward button: control the car forward or backward, the middle is to stop
2. Power button: Turn the vehicle on and off
3. Music button: Play music or reduce music sounds
4. Light button: Turn on /off the light（increase music sounds）
5. Socket: Charge

Turn on the power to automatically search for Bluetooth

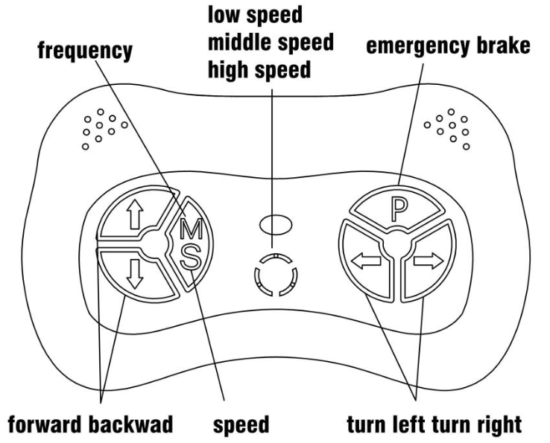

C. Use The Remote Control
NOTE: This product does not include the AAA(1.5v)
Only allow adults to use remote control, can not let the children touch

Operation manual: For the first time to use (Or Replace the battery)Need to frequency bind

• Take out the remote control, install the battery
• Long press on the button “M” for 2‐4 seconds, and the Indicator Light will flash
• Turn on the power of the car, Indicator  light flashes  to  long  lighting,  then  frequency bindsucceed
• If the frequency bind failed  (Indicator light flashes),  remove the battery and repeat steps 1~3
• remote  control  without  operation  after  10  seconds, the Indicator  light  will  off  into  power-saving mode
• Button Description:  △  forward ▽ backward  ◁  turn left  ▷turn right

P:  emergency  brake,  press  it  and  the  running  function  will  fail,  press  again, and it  release

Safety

WARNING!
PREVENT INJURIES AND DEATHS:

• NEVER LEAVE A CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep the child in view when a child is in the vehicle.
• This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, on or near steep inclines or steps, swimming pools, or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 37 months due to its maximum speed; the maximum user weight is 30 kgs.
• This toy has no brake.

Rules for Safe Riding

• Keep children within safe riding areas:
  Never use it in the roadway, near motor vehicles, on lawn space, on or near steep inclines or steps swimming pools, or other bodies of water;
  Use the toy only on flat surfaces. Such as inside your house, garden, or playground
• Never use it in the dark. A child could encounter unexpected obstacles and have an accident. Operate the vehicles only in the daytime or in a well-lit area.
• It is prohibited to change the circuit or add other electric parts.
• Inspect wires and connections of the vehicle periodically
• Do not let any child touch the wheels or be near them when the car is moving.

NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a fire. Pick up the battery by the case ONLY.
– Charge the battery in a dry area ONLY.

• Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm.
  Wash hands after handling.
• Do not open the battery. The battery contains lead-acid and other materials that are toxic and corrosive.
• Do not open the charger. Exposed wiring and circuitry inside case electric shock. Only adults may handle or charge the battery. NEVER allow the child to handle or charge the battery. The battery is heavy and contains lead-acid (electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, supply cord, and connectors. DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a month if not used regularly.
• Do not charge the battery upside down.
• Always secure the battery with a bracket, Battery can fall out and injure a child if the vehicle tips over.
• The POWER SWITCH must be turned in the OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than 10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge times as 8 to 12 hours, less than 20 hours at most.

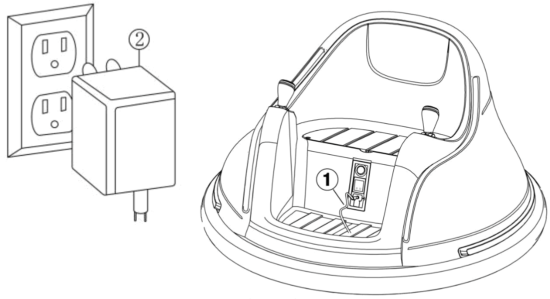

Charging

ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!

Put the charger plug into the socket as picture

Battery Replacement

To avoid losing power, follow these guidelines:

• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive up steep slopes.
• Do not drive into fixed objects, which may cause the wheels to spin, causing the motor to overheat.
• Do not drive in very hot weather, components may overheat.
• Do not allow water or other liquid to come in contact with the battery or other electric components.
• Do not tamper with the electric system. Doing so many create a short, causing the fuse to trip.

Troubleshooting Guide
