HX6839/28 Sonicare Electric Toothbrush
Owner’s ManualSonicare Electric Toothbrush
HX64xx/xx HX68xx/xx

Important repair instructions

No specific issues.

Contents hide

1 General information

1.1 Specifications

2 Functions/features explanation

3 Service parts

4 Exploded view

5 Version history

6 Documents / Resources

6.1 References

7 Related Posts

General information

Specifications

Technical specifications

Battery Type: Li-Ion
Battery: Rechargeable battery
Operating time (full to empty): Up to 2 weeks

Power

Power supply: 110 – 220 V

Cleaning performance

Speed: Up to 62000 brush strokes/min
Performance: Removes Up to 7X more plaque
Health benefits: Improves gum health in only two weeks, Helps reduce cavities
Pressure feedback: Vibrates handle to alert user
Timer: Quadpacer and SmarTimer

Easy of use

Handle compatibility: Easy click-on brush heads
Brushing time: Up to 2 weeks
Battery indicator: Light shows battery status
Handle: Slim ergonomic design

Modes

Clean: For exceptional everyday clean
2 intensities: Low, High

Design and finishing

Color: Black, Pastel pink

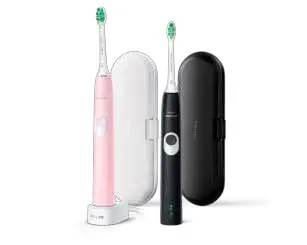

Items included

Handle: 2 ProtectiveClean
Brush heads: 2 i InterCare
Travel case: 2
Charger: 1

Smart sensor technology

Pressure sensor: Alerts when brushing too hard
BrushSync Replacement Reminder: Always know when to, replace brush heads

Service

Warranty: 2-year limited warranty

Consumer Replaceable Parts

No Specific issues.

Optional (accessories)

No Specific issues.

Functions/features explanation

Cleaner teeth. Gently does it.
Remove up to 7x more plaque than a manual
Feel the difference of a gentle clean with our Pressure Sensor while removing up to 7x more plaque than a manual toothbrush.

Proven to improve oral health

Remove up to 7x more plaque with our InterCare brush head
Safe & gentle on sensitive areas, orthodontics & dental work

Innovative technology

Lets you know if you’re pressing too hard
Always know when to replace your brush heads
Connects smart brush handle and smart brush heads
Philips Sonicare’s advanced sonic technology

Designed around you

The easy start program builds your Philips Sonicare routine
Encouragement to brush thoroughly
Makes traveling easier for you

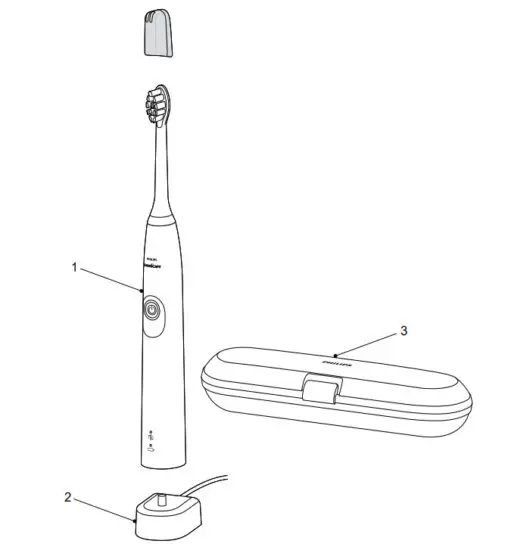

Service parts

Pos	Service code	Description
1*	3000 054 14321	SRV HNDL, COO-CN, White Mint HX642A, NA/EU
	4235 090 12101	HNDL HX680J
	4235 090 12191	HNDL HX680J ROA
	4235 090 12001	SRV, HNDL, COO-CN, SYDNEY, BK-WT, HX680U, 1B1MI, EU
	4235 090 12201	HNDL HX680U ROA
	4235 090 11781	SRV, HNDL, COO-CN, SYDNEY, BK-ANTHR, HX680B, 1B1MI, EU
	4235 090 11741	HNDL HX680B EU
	4235 090 12091	HNDL HX680C
	4235 090 12241	HANDLE ONLY, HX680C, ROA/EU
	4235 090 10221	SRV, HNDL, COO-CN, SYDNEY, WT-MT, HX680A, 1B1MI, EU
	4235 090 11771	HNDL HX680A EU
	3000 077 88511	SRV, HNDL, COO-CN, SYDNEY, NAVY BLUE, HX682E, 2B2MG, EU
	4235 090 12041	HNDL HX683J
	4235 090 12231	HNDL HX683J ROA
	4235 090 12171	HNDL HX684A
	4235 090 12261	HNDL HX684A ROA/EU
	4235 090 10531	HANDLE ONLY, NVY BLU, HX684E, EU
	4235 090 10731	HNDL HX684E ROA/EU
	4235 090 12021	HNDL HX683P
	4235 090 12211	HNDL HX683P ROA
	4235 090 10691	HANDLE ONLY, WHT MD BLU, HX680Q, EU
	4235 090 10801	HNDL HX680Q EU
	4235 090 10521	SRV, HNDL, COO-CN, SYDNEY, BK-ANTHR, HX684B, 2B3M, EU
	4235 090 11841	HANDLE ONLY, HX684B, ROA/EU
	4235 090 10561	HANDLE ONLY, PSTL PNK, HX684J, EU
	4235 090 10741	HNDL HX684J EU
	4235 090 10031	HANDLE ONLY, WHT LGHT BLU, HX684P, EU
	4235 090 11811	HANDLE ONLY, HX684P, ROA/EU
	4235 090 10641	HANDLE ONLY, NVY BLU, HX685E, EU
	4235 090 10781	HNDL HX685E EU
	4235 090 10601	HANDLE ONLY, WHT, HX685T, EU
	4235 090 11831	HANDLE ONLY, HX685T, ROA/EU
2**	3000 077 32531	SRV, CHGR, TRITON, COO-CN, HX6100, WT, EU
	3000 077 88401	SRV, CHGR, TRITON, COO-CN, HX6100, WT, UK
	4235 010 32331	ASSY_CHARGER_HX6100_COO-CN_TRITON_3-BASE FT_UK_ BLACK
	3000 077 32541	SRV, CHGR, TRITON, COO-CN, HX6100, BK, EU
3**	3000 077 88471	SRV, TRAVEL CASE, SYDNEY, WT, EU
	3000 077 88481	SRV, TRAVEL CASE, SYDNEY, BK, EU

*Only available as a Warranty part. Warranty claims should be routed through the call center
**Available as a Service part. Warranty claims should be routed to Call Centers
