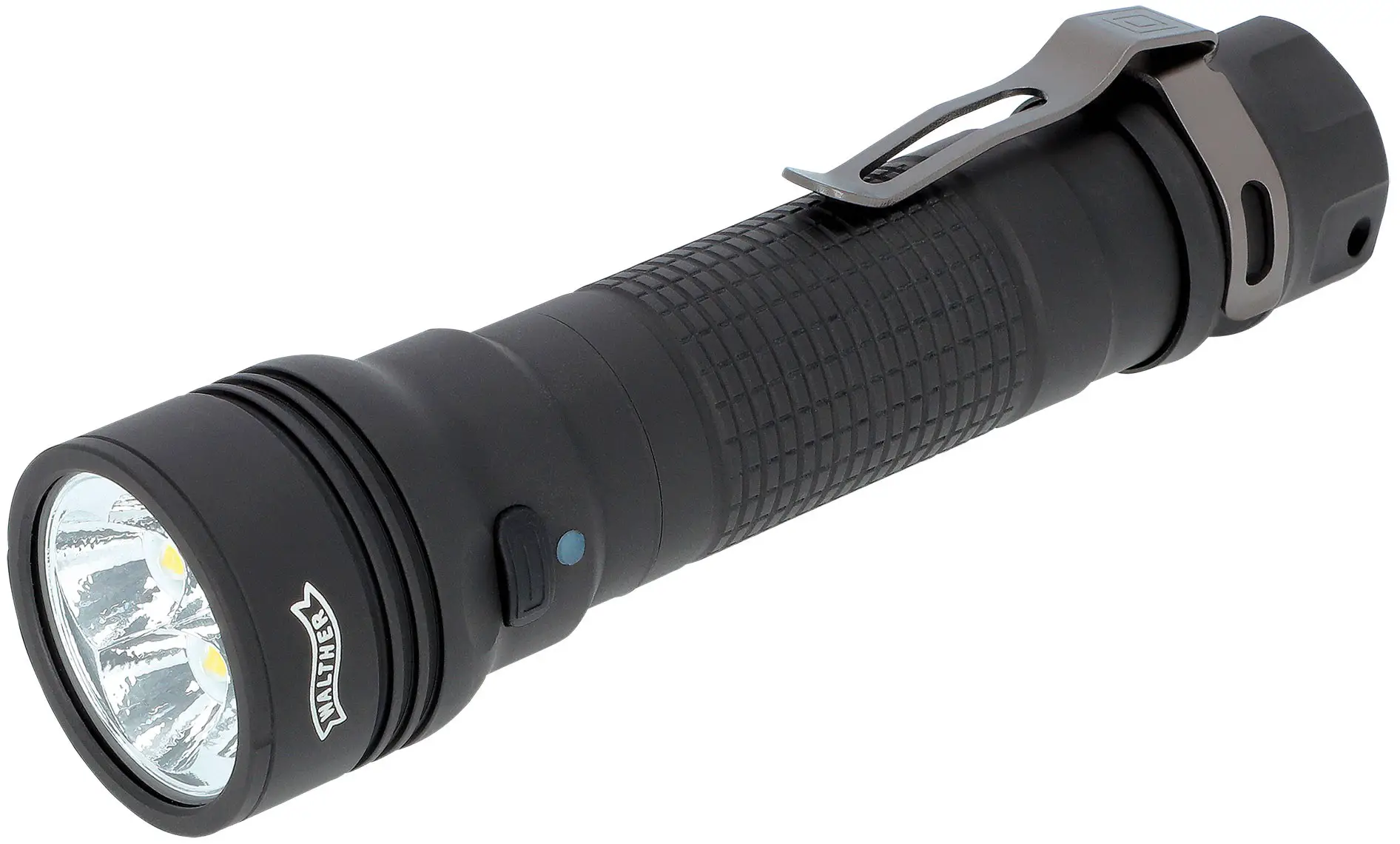

WALTHER EFC3r EDC Flashlight Instruction Manual

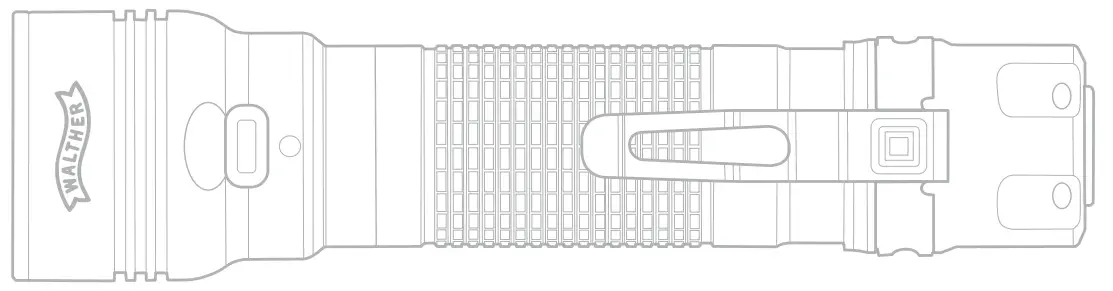

EDC FLASHLIGHT

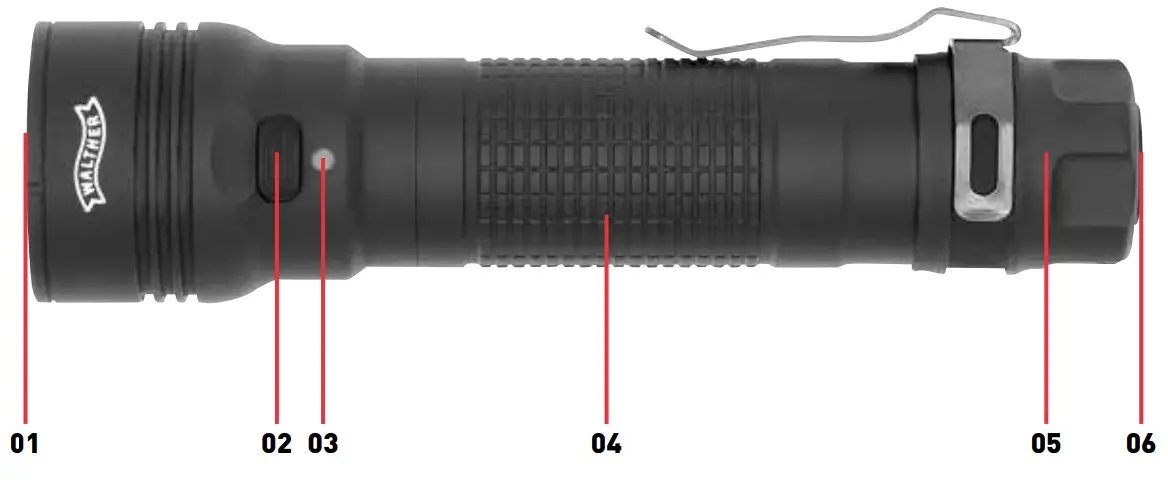

PARTS DESCRIPTION
- Reflector housing
- Mode Switch
- Charging status indicator
- Battery compartment
- Screw cap
- Power Switch
Technical data
| MODE | Turbo |
| LED CHIP | Luminus SST40 |
| COLOUR TEMPERATURE | 5.000 k |
| BATTERY | 21700 Li-Ion 3,7 V |
| MAX. BEAM RANGE | 180 m |
| PROTECTION LEVEL | IPX8 / 1,5 m |
| LENGTH | 137 mm |
| DIAMETER (HEAD/HOUSING) | 25,4 mm |
| WEIGHT | 170 g |
 | MODE |  |  |
| 1 x 21700 | Turbo | 3000 | 2h |
| High | 1000 | 4h | |
| Medium | 200 | 13h | |
| Low | 50 | 55h | |
| Ultra Low | 10 | 110h | |
| Beacon | 3000 | 80h |
These are measurement values that were determined in a laboratory and are subject to natural tolerances that depend on various other conditions (e.g. temperature, battery type)

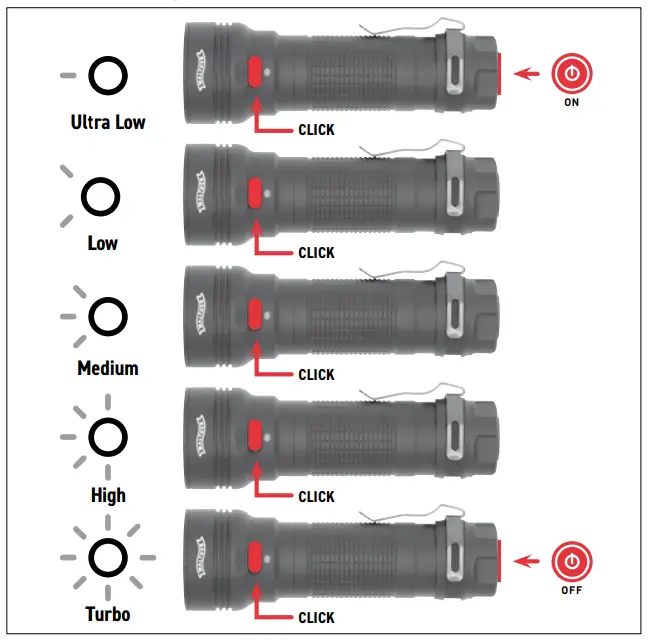

Operation
Starting with previously used brightness level Half press and hold for “momentary light” (starting with preciously used brightness level)
Changing the batteries

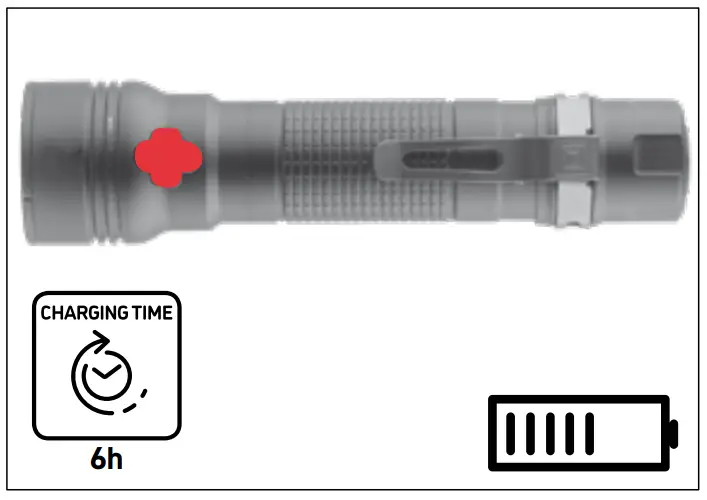

Charging
Low battery indicator: White LED flashes once per minute when battery reach 25%

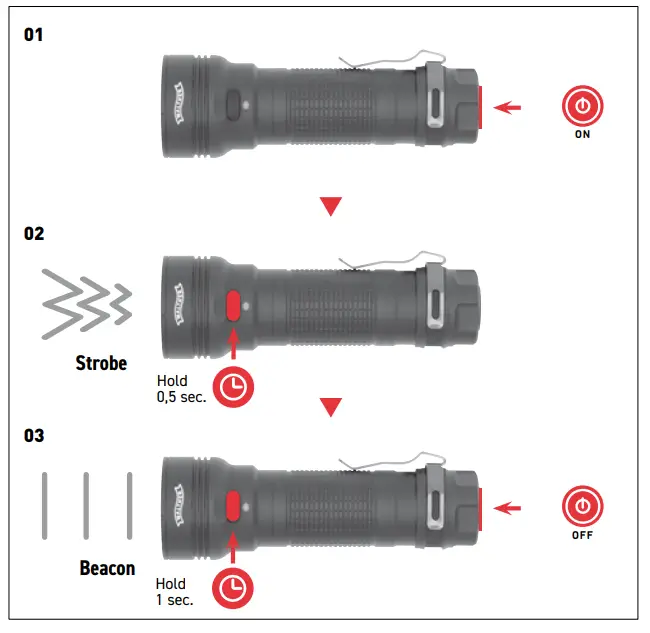

Operation
We reserve the right to make color and design changes and technical improvements. No responsibility is accepted for printing errors or incorrect information.
Costumer Support
UMAREX GMBH & CO. KG
Donnerfeld 2 ∙ 59757 Arnsberg ∙ Germany
[email protected]
www.umarex.de
