Spectrum 620 Himalayan Salt Panel
Instruction Manual
Spectrum 620 & 626
Mounted Salt Panel
Installation and Operation Manual
Installation Considerations
Please read this manual in its entirely prior to installation
Carefully review all installation options and instructions before proceeding. For safety purposes, use safety goggles at all times.
If there is any risk of uninsulated electrical connections in your wall / ceiling area, use insulating gloves.
Prior to installation, consider the placement carefully, taking into account the location of electrical, plumbing, and other fixture The Spectrum 620 requires minimum of 4” at both ends to insert or remove center salt block for mounting or removing panel.
Installation – – Overview
Note: It is recommended that all electrical equipment be tested prior to installation.

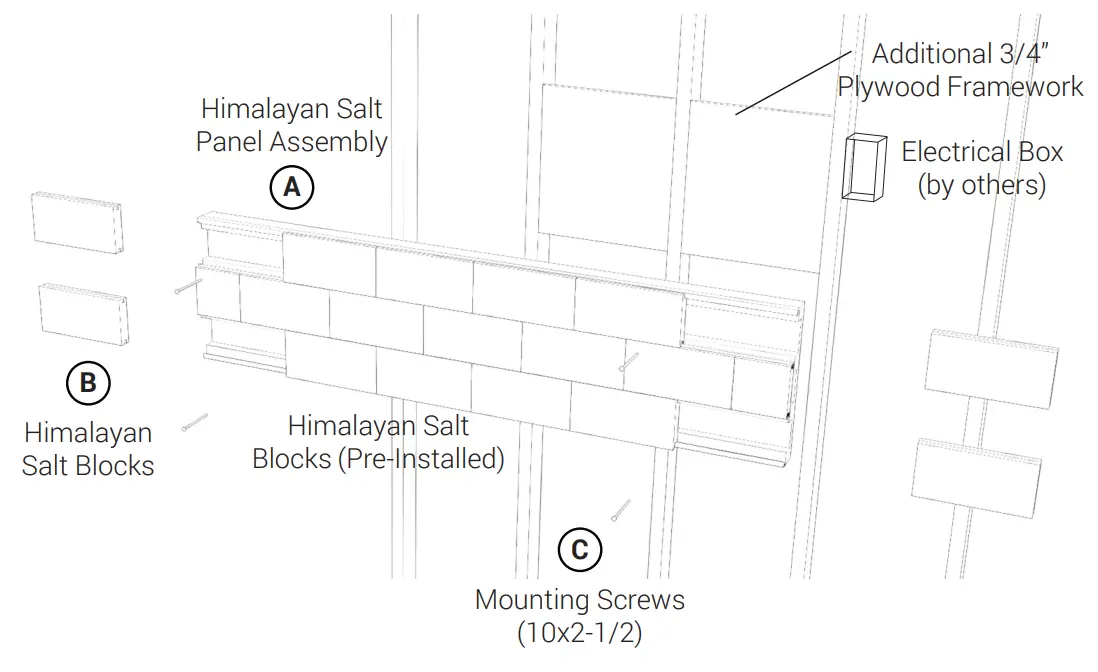

Note: Illustration below showcases Spectrum 620 Humalayan Salt Panel Assembly which measures 48×12. Spectrum 626 is similar, but measures 16×16. Surface mount shown.

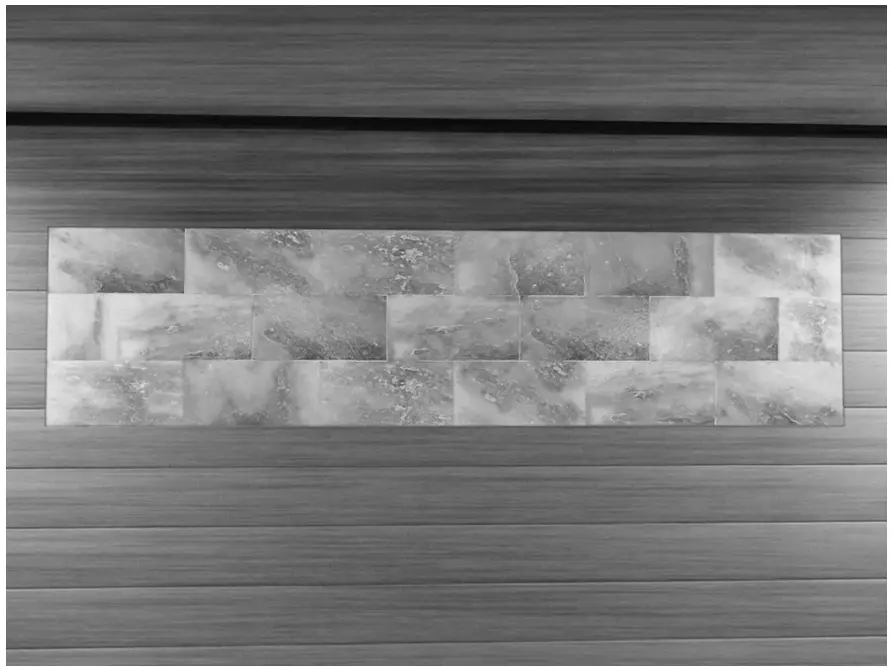

Sauna Environment
Package Includes
Spectrum 620
| Item | Quantity | Description |
| A | 1 | Himalayan Salt Panel Assembly (Salt Pre-Installed) |
| B | 4 | Himalayan Salt Blocks |
| C | 4 | Mounting Screws (10×2-1/2) |
Installation – Himalayan Salt Panel
- From determined Salt Panel Assembly (A) location, mark a level line for height of Salt Panel Assembly (A). (Helpful Tip: Use a piece of 2×4, level and secure to wall at determined height temporarily to be used as a ledger to support Salt Panel Assembly (A))
- The Salt Panel Assembly (A) fixture may weigh up to 55 lbs. and require additional framework or support. ¾” Plywood is recommended to help support the weight of the fixture(s). See diagram on page 4.
- Mount Salt Panel Assembly (A) onto wall securing with provided Mounting Screws (C) into predrilled mounting holes.
- After mounting Salt Panel Assembly (A) slide in 4 Salt Blocks (B) over Mounting Screw (C) locations.
- Repeat this process for each additional Himalayan Salt Panel Assembly, if any.
Specifications
Salt Block
Composition: Himalayan Salt
Dimensions: 3-7/8” x 7-7/8”
Himalayan Salt Panel
Dimensions (620): 11-5/8”H x 47-1/4”W x 2-5/8”D
Dimensions (626): 15-1/2”H x 15-3/4”W x 2-5/8”D
Composition: Maple Plywood, Aluminum
Mounting Screws
Size: #10 x 2-1/2”
Replacement Parts
Contact your Bathology representative for Spectrum
620 / 626 Mounted Salt Panel replacement parts.
800-957-2862 www.Bathology.com
www.Bathology.com
800-957-2862
A division of Bathing Brands,Inc.
Spectrum 620
900-0147-0920
Bathology
