RF170BLPUX6 N 32 Inch Ice & Water Freestanding Refrigerator Freezer
User Guide
Series 5 | Contemporary
Stainless Steel | Left hinge
This stylish left-hinge refrigerator comes in timeless stainless steel with concealed handles for a more streamlined look.
- Bottom freezer
- ActiveSmart™ helps keep food fresher for longer
- Ultra flat door conceals handles for a streamlined look

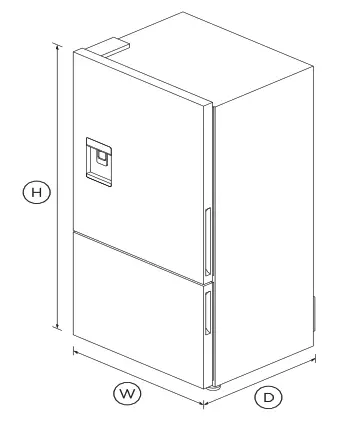

DIMENSIONS
| Height | 67 3/4″ |
| Width | 31 1/8″ |
| Depth | 27 3/8″ |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart™ food care adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Humidity control
Your fruit and veges need different environments. Each storage bin creates a microclimate, which helps keep them fresher for longer.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Design quality
Our refrigerators are designed and built using quality materials.
We use real stainless steel on our refrigerators and solid glass for shelving.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
SPECIFICATIONS
| Accessories | |
| Matching Replacement Water | FWC3 |
| Capacity | |
| Volume freezer | 5.2cu ft |
| Volume refrigerator | 12.3cu ft |
| Consumption | |
| Energy usage | 538kWh/year |
| Features | |
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front leveling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Full-width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| SmartTouch control panel | • |
| Spill-proof removable bins | • |
| Stackable bottle holders | 2 |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Freezer bins | 2 |
| Ice Boost | • |
| Ice bin and scoop | • |
| Large plastic bins | • |
| Slide Out Pastry Tray | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| External water dispenser | • |
| Frost free | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Product dimensions | |
| Depth | 27 3/8″ |
| Height | 67 3/4″ |
| Minimum air clearance – at rear | 1 3/16″ |
| Minimum air clearance – each | 1 3/16″ |
| Minimum air clearance – on top | 2″ |
| Width | 31 1/8″ |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 25942 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
