Furrion 28” Led Hd Tv User Guide

Furrion 28” Led Hd Tv User Guide

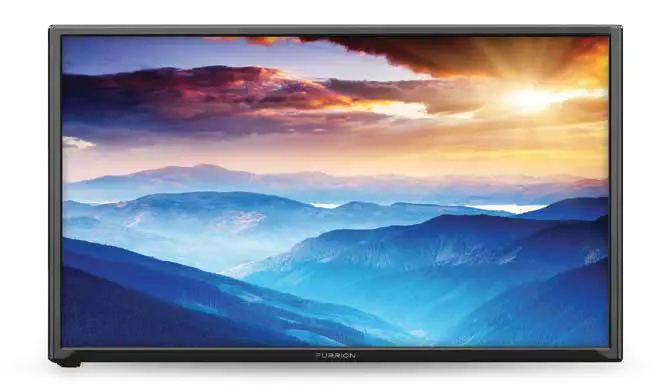

28” LED HD TV
FEHS28E8AFURRION 28 LED HD TV--FURRION 28 LED HD TV-

  • Climatesmart – designed and tested for extreme climates
  • Custom Furrion upgraded speakers and amplifier
  • Furrion smart link communication
  • Added LED strips for extra brightness and picture quality

FEHS28E8A | 28” LED HD TV

FURRION 28 LED HD TV--FEHS28E8A

Panel Specifications
Screen Size28″
Resolution1366 x 768
Refresh Rate60Hz
Contrast Ratio3000:01:00
View Angle178 degree/178 degree
Broadcasting System
AnalogNTSC
DigitalATSC
Audio
Mono/Stereo/Dual (MTS/SAP)
Audio Output (Watts – THD 10%)10W x 2
Speaker System1 Way 2 Speakers
Dolby Digital Decoder
Surround System
Bass/Treble/Balance
Sound Mode5 Modes
Special Features
Smart Energy Saving
Input Labeling
Smartlink (HDMI CEC)
Child Lock
ARC Audio out
Convenience Features
LanguageEnglish/Spanish/French
Auto Tuning/Programming
Channel Add/Delete
Favorite Channel Programming
Auto/Manual Clock
On/Off Timer
Sleep Timer
Auto Off (Sleep)
AV Inputs & Outputs
# of HDMI Inputs3
# of D-Sub (VGA) Inputs1
# of Component (YPbPr) Inputs1
# of Composite AV Inputs1
# of Antenna (RF) Inputs1
# of USB Inputs1
# of Audio LR Outputs1
# of 3.5mm Headphone Outputs1
# of Optical Audio Outputs1

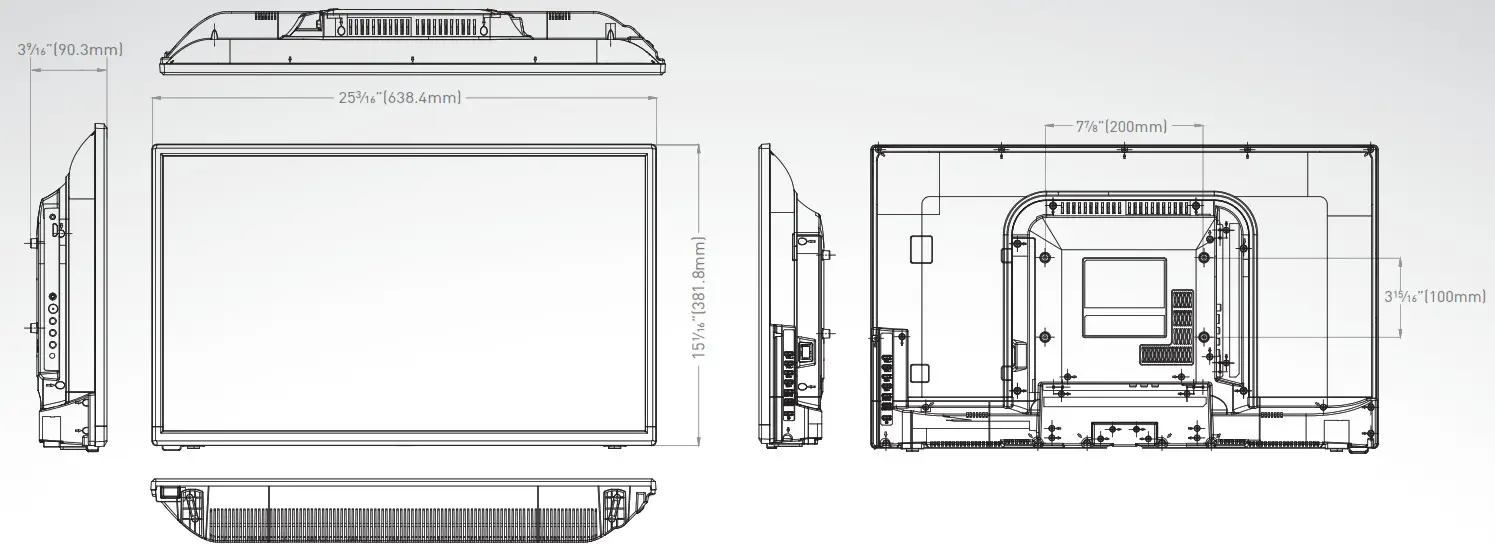

Cabinet
Vesa Compatible200 x 100mm
Dimensions / Weight
TV Without Stand (L x H x W) hosse na ,,,
Shipping Dimensions (L x H x W)  hosse na ,,,
Shipping Weight (kg/lbs)4.9/10.8

* Note: “√”=Equipped

USA Innovation Center & Institute of Technology: 52567 Independence Ct. Elkhart, IN 46514
Customer Service & Technical Support: Email: [email protected] Tel : (888) 354 5792 www.furrion.com
Furrion and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. © 2007-2018 Furrion Ltd.
