QUICK SETUP GUIDE
LED TV
NS-40D510NA21 / NS-40D510CA21 /
NS-43D510NA21
40″/43″ FHD
1080p 60Hz
ACCESSORIES
 |  |  |

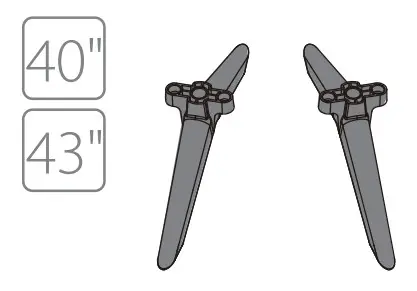

| Remote and two AAA batteries | TV stands | M4 screws (16 mm length) (4 pcs.) |
STOP
Before using your new product, read these instructions to prevent any damage. Do not plug your power cord in until all other devices have been connected.
INSTALLING THE STANDS OR A WALL MOUNT
Place your TV face-down on a cushioned, clean surface.

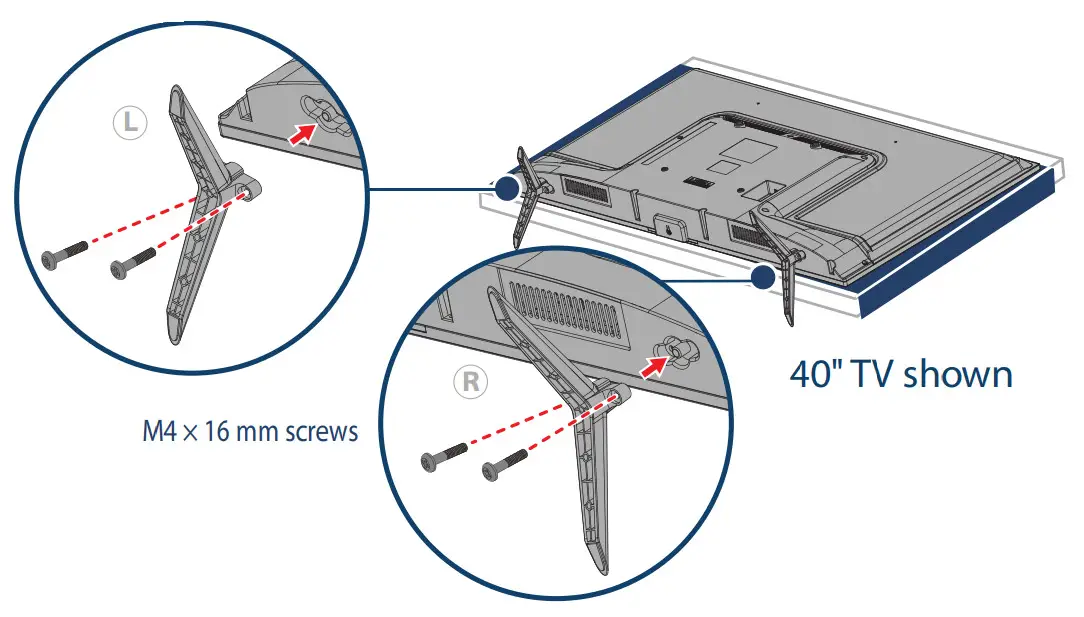

STANDS
- Align the TV stand screw holes with the holes on your TV’s bottom.
- Use a Phillips screwdriver and two provided screws to secure each stand to your TV.
OR
WALL MOUNT
Before you mount your TV, make sure that:
- You remove the stands.
- The wall-mount bracket supports the weight of your TV.
See the instructions that came with your wall mount for more information about how to correctly mount your TV.

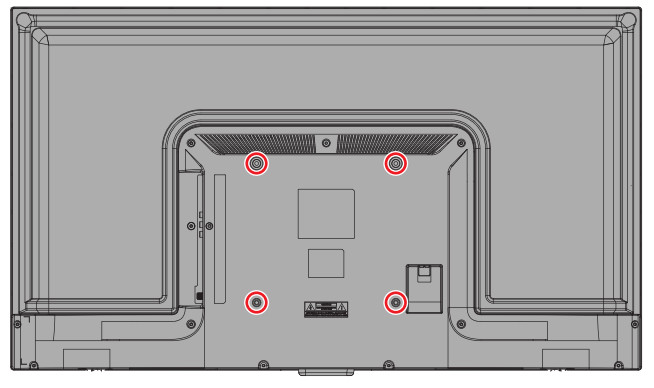

WARNING: Your TV has four VESA mounting holes on the back. You must secure a wall-mount bracket to all four holes. If you do not use all four holes, your TV may fall and cause property damage or personal injury.
Note: Wall-mount screws are not included.
40″ TV shown
VESA Mounting Pattern
200 x 200 mm
M6 screws (10 mm length) (4 pcs.)
VESA Mounting Pattern
400 x 200 mm
M6 screws (10 mm length) (4 pcs.)

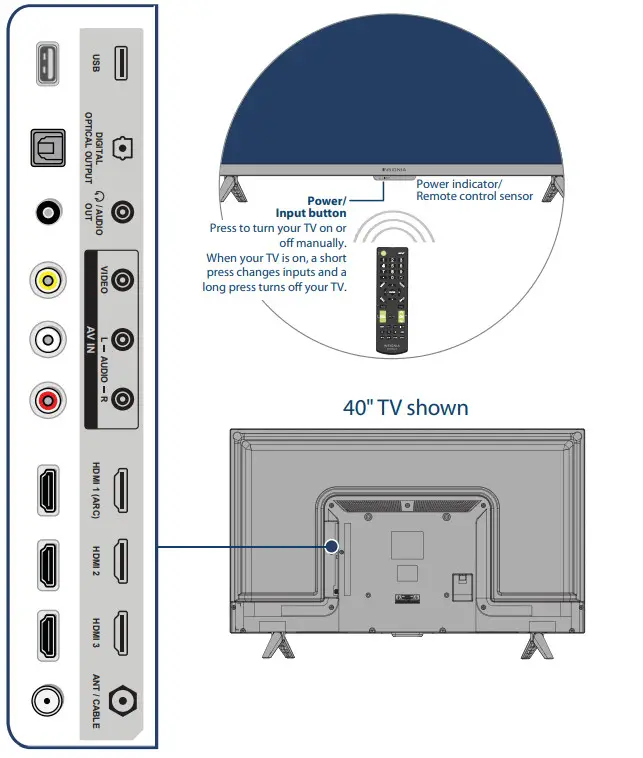

FEATURES
Note: Images do not necessarily represent the exact design of your television.
Note: Images do not necessarily represent the exact design of your television.

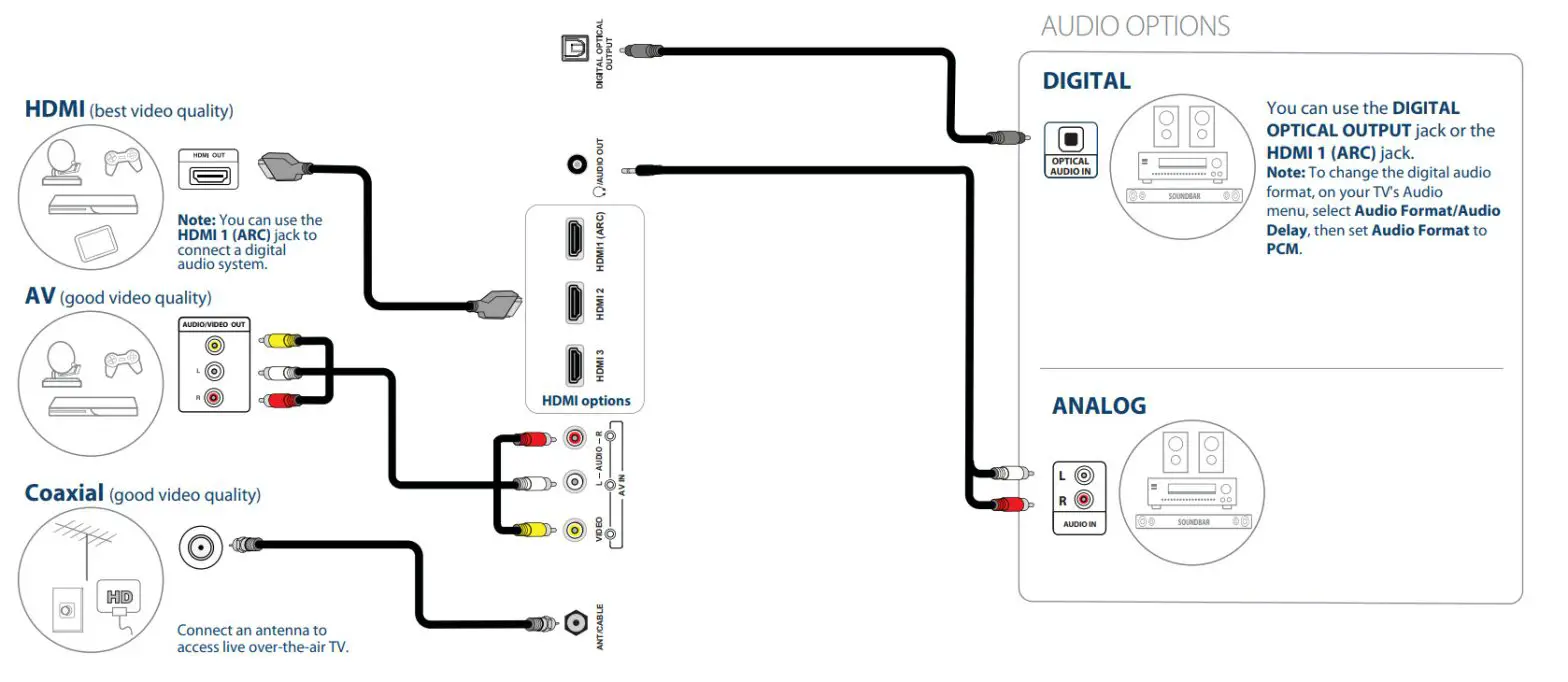

MAKING CONNECTIONS
TURNING ON YOUR TV
- Plug the power cord into a power outlet.

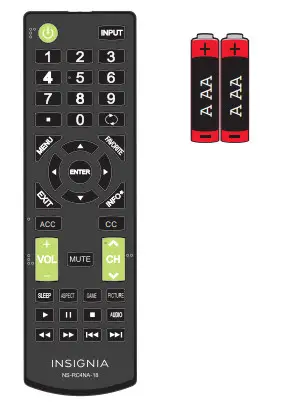

- Remove the remote control cover and install the batteries.
- Press
on your remote. - Follow the on-screen instructions.
on your remote.
FIND YOUR USER GUIDE ONLINE
- Go to www.insigniaproducts.com.
- Use the search bar to find NS-40D510NA21,
NS-40D510CA21 or, NS-43D510NA21. - Select Support & Downloads.
- Next to User Guide, select the language you want.

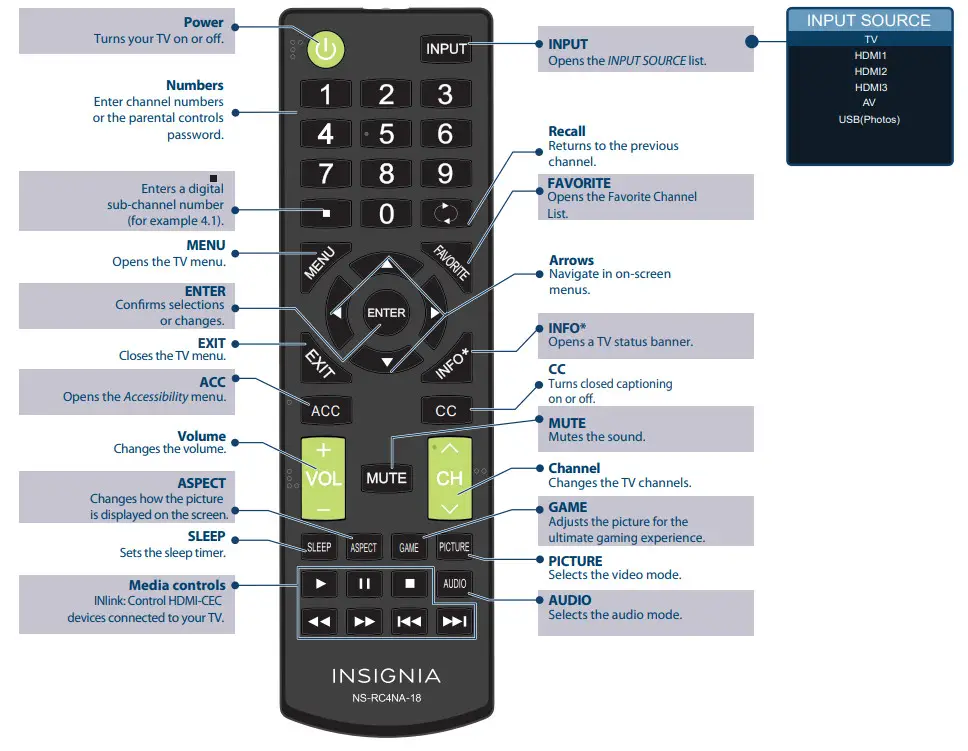

REMOTE
I already have a universal remote control. How do I make it control this TV?
If you already have a universal remote control that you would like to program to work with your TV and don’t want to use the included Insignia remote control, see the table below for common codes.
| AT&T U‐verse | UNIVERSAL REMOTE CONTROL CODES |
| Cablevision | 1034, 1035, 1040, 1398, 1465, 1596, 1437, 1507, 12049, 11641, 11564, 11326, 11423, 11892, 11517, 10171, 10463, 11385, 11660, 11963, 12184, 13227 |
| Charter | 068, 069, 078, 096, 100, 164, 168, 229, 026 |
| Comcast | 2002, 1204, 1423, 1517, 0171, 1963, 0463, 1463, 0842, 1326, 167, 415, 424, 450, 456, 461, 507, 523, 567, 577, 586 |
| Cox | 10463, 10171, 11204, 11326, 11463, 11517, 11641, 11780, 11785, 11892, 11963, 12002, 01877, 00276, 01982, 01376, 00810, 01187, 01106, 00877, 00476 |
| DirecTV | 1326, 1463 |
| Dish Network | 10463, 10171, 11204, 11326, 11517, 11564, 11641, 11963, 12002, 11463, 12049 |
| RCA | 834, 720, 222, 898, 365, 777, 754 |
| Rogers | 135, 12049, 11423, 11564, 10171, 10463, 11810, 11892, 11963, 12184, 12417 |
| Time Warner | 0463, 1326, 2049, 1785, 1780, 1423, 1963 |
| Verizon | 0198, 0490 |
For an up-to-date list of codes for other cable providers and universal remote brands, visit www.insigniaproducts.com/remotecodes.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
NEED ADDITIONAL HELP?
Check out our Support Community at http://community.insigniaproducts.com/ for helpful information from other Insignia TV owners.
WE’RE HERE FOR YOU
www.insigniaproducts.com
For customer service, call: 1-877-467-4289 (U.S./Canada)
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS, Inc.
DTS, TruSurround and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries.
© 2020 DTS, Inc. ALL RIGHTS RESERVED.
U.S. and Canada:
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2021 Best Buy. All rights reserved.
