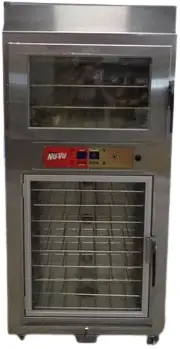

NU-VU SUB-123P Electric Oven User Manual
Product Describition
|

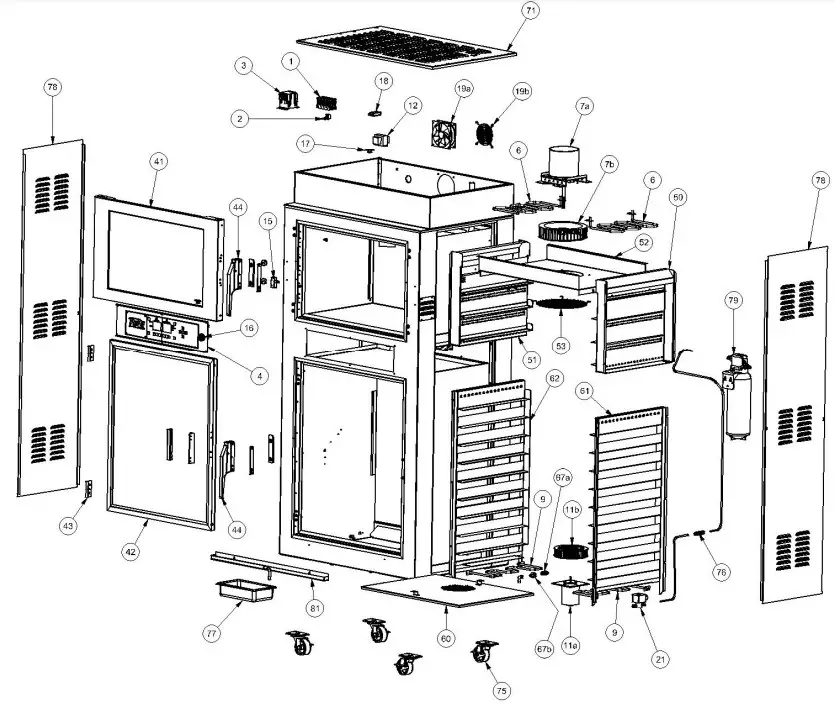

Replacement Parts List |
||
| Reference # | Description | Replacement part # |
| 1 | Power Terminal Block | 50-0237 |
| 2 | Ground Lug | 50-1329 |
| 3 | Contactor (120V coil) | 66-2013 |
| 4 | Programmable Control Assembly | 112-9153 |
| Oven Temperature Sensor | 252-3001 | |
| 6 | Oven Heating Element (208V) | 251-1005 |
| 6 | Oven Heating Element (240V) | 251-1002 |
| 7 | Oven Motor Assembly | 250-1002 |
| 7a | Oven Motor | 66-5504 |
| 7b | Blower Wheel | 50-0444 |
| Proofer Sensor | 66-1146 | |
| 9 | Proofer Heat Element (120V) | 60-0001-1-B |
| 11 | Proofer Motor Assembly | 250-2010 |
| 11 a | Proofer Motor | 66-5503 |
| 11b | Blower Wheel | 50-0362 |
| 12 | Control Transformer | 66-9505 |
| 15 | Oven Door Switch | 252-2004 |
| 16 | Alarm (included %/I Programmable Control Assembly) | 252-1022 |
| 17 | Hi Limit Switch | 66-1114 |
| 18 | Manual Reset Fuse (20A) | 66-1097 |
| 19 | Cooling Fan Assembly (120V) | 250-3001 |
| 19a | Cooling Fan | 50-0049 |
| 19b | Fan Guard | 50-0048 |
| 20 | Oven Light Fixture Kit (Socket, Globe, and Gasket) | 252-7004 |
| 20 | Proofer Light Fixture Kit (Socket, Globe, and Gasket) | 252-7006 |
| 21 | Water Solenoid Valve (120V) | 50-0308-1 |
| 41 | Oven Door Assembly (without Latch), Left Hinged | 112-9151 |
| 41* | Oven Door Assembly (without Latch), Right Hinged | 112-9159 |
| Replacement Parts List | ||
| Reference # | Description | Replacement part # |
| 41* | Oven Door Assembly (without Latch), Right Hinged | 112-9159 |
| 42 | Proofer Door Assembly (without Hardware) | 21-1950 |
| 43 | Proofer Door Hinge (Left Hinged Unit) | 254-3011 |
| 43* | Proofer Door Hinge (Right Hinged Unit) | 254-3012 |
| 44 | Latch / Catch Assembly (Proofer) | 254-2025 |
| 44 | Latch / Catch Assembly (Oven) | 254-2026 |
| 46 | Oven Door Gasket (included with Oven Door Assemly) | 254-1001 |
| 46 | Proofer Door Gasket (included with Prooder Door Assembly) | 70-0358-A |
| 50 | Oven Wall Assembly (Right) | 112-6067 |
| 51 | Oven Wall Assembly (Leftt) | 112-9066 |
| 52 | Oven Element /Fan Cover | 112-0013-B |
| 53 | Wire Fan Guard | 112-0275 |
| 60 | Proofer Element 1 Fan Cover (Automist) | 112-9027 |
| 61 | Proofer Wall Assembly (Right) | 112-9023 |
| 62 | Proofer Wall Assembly (Left) | 112-9024 |
| 65* | Wire Shelf | 112-0059-B |
| 67 | Quick Change Nozzle Kit | 251-3005 |
| 67a | Quick Change Nozzle (includes strainer) | 31-0454 |
| 67b | Quick Change Nozzle Base | 31-0453 |
| 71 | Outside Top | 112-0075-B |
| 75 | Caster | 50-0058 |
| 76 | Water Inlet Bulkhead | 31-0058 |
| 77 | Drain Pan | 50-0547 |
| 78 | Side Panel | 112-0066-1-A |
| 79 | Water Filter Assembly | 112-9166 |
| 81 | Drip Trough Assembly | 135-9950 |

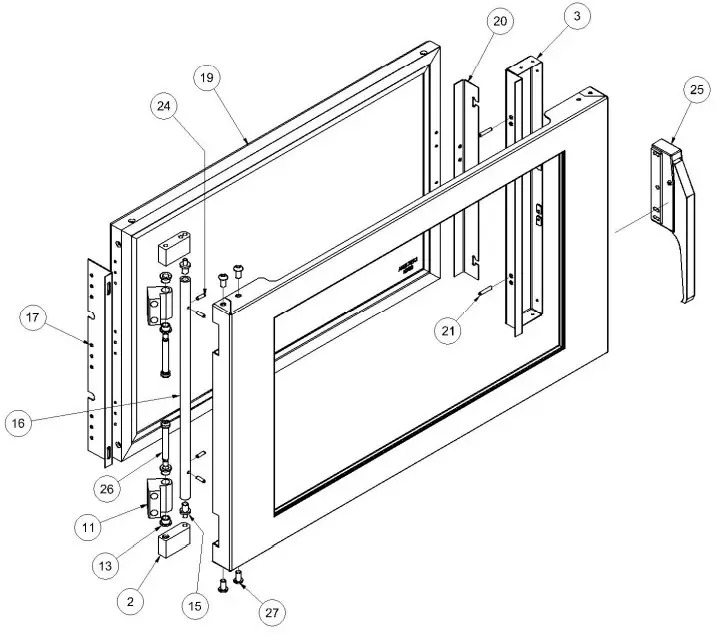

| Parts List | ||||
| ITEM | QTY | PART NUMBER | DESCRIPTION | |
| 2 | 2 | 07-0113 | BLOCK,HINGE,OVEN | |
| 3 | 1 | 112-9167 | WLDMT,COVER,LATCH | |
| 11 | 2 | 07-0084 | HINGE,HIDDEN | |
| 13 | 4 | _50-1358 | BUSHING | |
| 15 | 2 | 07-0114 | HINGE PIN | |
| 16 | 1 | 112-0299 | HINGE | |
| 17 | 1 | 112-0301 | HINGE,DOOR,INNER | |
| 19 | 1 | 112-9158 | ASSY,DOOR,OVEN,INNER | |
| 20 | 1 | 112-0302 | LATCH,DOOR,INNER | |
| 21 | 2 | 2002313 | PIN | |
| 24 | 4 | 112-0305 | PI N,.187X5/8,10-32 | |
| 25 | 1 | 50-1346 | LATCH,HANDLE,OFFSET | |
| 26 | 2 | 53-0313 | Hexagon Socket Shoulder | |
| Screw | ||||
| 27 | 4 | 53-0314 | Hexagon Socket Button Head | |
| Cap Screw | ||||
