Instruction Manual
Bedside lamp with fast wireless charger
Reference : TEA292
Version : 1.4
Language:
WWW.LIVOO.FR
Thank you for buying our LIVOO product. We take great care in design, ergonomics and ease of use of our products. We hope that this product will give you complete satisfaction. This instruction manual is also available on our website www.livoo.fr
GENERAL INSTRUCTIONS
PLEASE, TAKE TIME TO READ WELL THE INSTRUCTIONS FOR USE PARTICULARLY BEFORE THE FIRST USE.
A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed; we refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.
- Before using the unit please read the manual carefully.
- Keep this product away from any water, liquid or wet areas.
- This product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
- Use in dry locations only.
- Keep this product away from naked flames such as candles.
- This product should be only operated from the type of power source indicated on the marking label.
- Do not place the product in direct sunlight or heat. Keep away from temperatures over 40°C.
- Make sure the product has plenty of ventilation.
- Do not press the buttons too hard as it could damage the product.
- Do not use a wet cloth on the product. Always use a dry cloth to clean this product and keep it free from dust.
- Do not use chemicals on this product.
- Never try to repair this product yourself, take it to an approved technician. Trying to remove panels or repairing the unit yourself could lead to electric shock.
- When the unit is not in use, make sure it is correctly turned off and stored in a cold dry place.
- Do not insert foreign objects into the product.
- Avoid dropping or standing on the product, as harsh impacts could damage the product.
- While the LED light on, do not shine on eyes in short distance to prevent eye injury.
- The lamppost can’t be bent, otherwise it would damage the lamppost.
- This product is indoor use only.
- Young children under the age of 7 years should be supervised to ensure they do not play with the product.
- Close supervision is necessary when any appliance is used by or near children under the age of 7.
FEATURES
GENERAL INFORMATIONS
| Input | 5V /2.0A 9V /2.0A |
| Built in battery | 400mAH |
| Power | 5W/10W/15W |
| Size | 178X155X55mm |
| Weight | 332g |
Package contents :
1 x Wireless charger
1 x USB/Type C charging cable
1 x User Manual
Introduction
This product has a wireless charger and is compatible with all mobile phones with QI technology. This means that the mobile phone can be charged inductively without the need for a plug-in connection, whichis more convenient. If your phone is not QI certified, you can still enjoy this product by using the wireless receivers (not included).

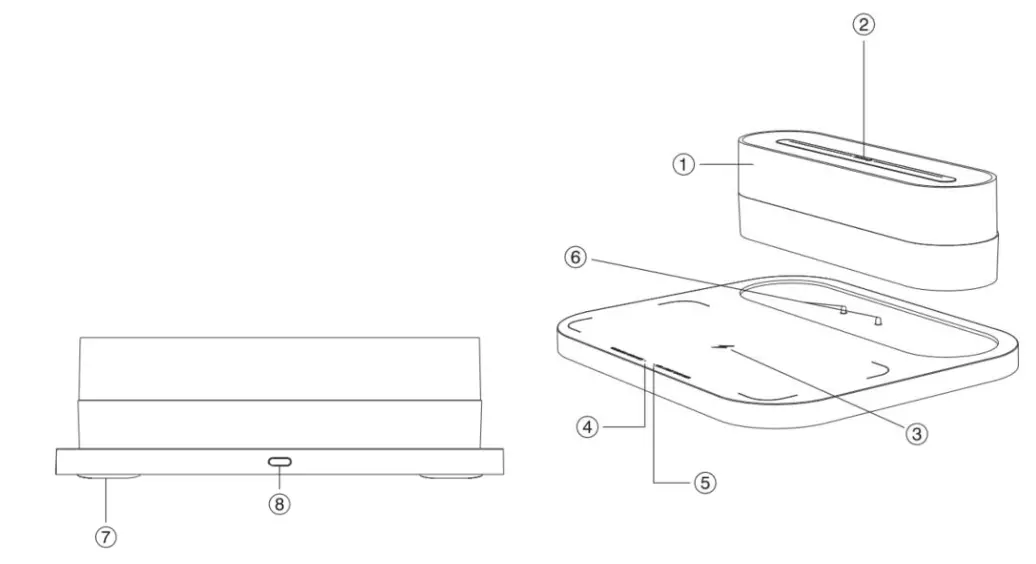

PRODUCT DESCRIPTION
- Lampshade
- Light adjustment touch swith
- Wireless charging area
- Wireless charging indicator
- Night light charging indicator
- Charging contacts
- Silicone anti-slip mat
- Type-C input port
OPERATIONS
OPERATION METHOD

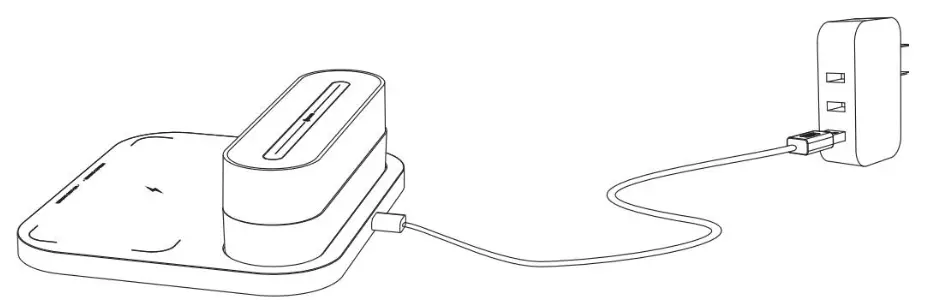

- Connect the USB port of the USB data cable to the power adapter, and the Type C port to the Type C input
- After the product is powered on, the wireless charging indicator will stay on for one second then stop
- Put the required wireless charging equipment in the charging indicator area of this product, and the charging indicator light is always on, and it enters on to enter the charging state.

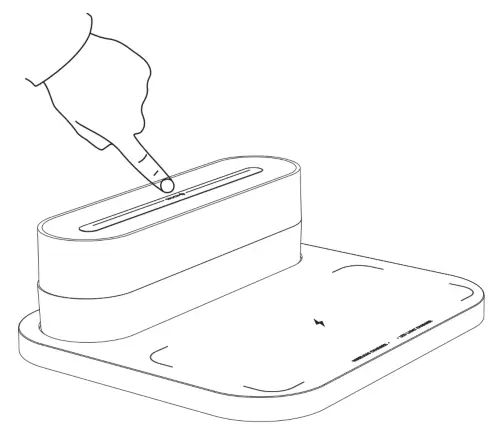

NIGHT LIGHT FUNCTION
- The first touch of the switch is warm white.
- The second touch of the switch is cool white
- The third touch of the switch is white
- Touch the switch to turn off the light for the fourth time
- In any color temperature mode, long touch switch can adjust the brightness
EU DECLARATION OF CONFORMITY
We
DELTA
BP61071
67452 Mundolsheim – France
Herewith declare under our sole responsibility, that the radio equipment
Bedside lamp with faster wireless charger
TEA292 (Frequency range 110 – 205KHz)
Fulfils the essential requirements of the Directive 2014/53/UE
The following standards were applied:
Radio: EN 303 417 V1.1.1 (2017-09)
EMC: ETSI EN 301 489-1 V2.2.3 (2019-11)
Draft ETSI EN 301 489-3 V2.1.2 (2021 03)
EN 55032 :2015 + A1 :2020 + A11 :2020
EN 55035 :2017 + A11 :2020
Health and Safety: EN IEC 62368-1 : 2020 + A11 : 2020 EN IEC 62311 : 2020
Mundolsheim, 16/12/2021
Correct disposal of the unit
(Electrical and Electronic Equipment)
(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries)
The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.
Pour en savoir plus: www.quefairedesdechets.fr
LIVOO
BP 61071
67452 Mundolsheim
Non contractual illustration.
Product information is subject to change without prior notice.
WWW.LIVOO.FR
Livoo, life in feel-good mode
