Invirox 2022 Dog Training Collar Dog Shock Collar User Manual

INVIROX 2022 Dog Training Collar Dog Shock Collar

Specifications

• Package Dimensions 81 x 5.51 x 1.77 inches; 11.11 Ounces
• Batteries 2 Lithium Polymer batteries
• Material Polycarbonate
• Target Species Dog
• Brand INVIROX

INTRODUCTION

With a cutting-edge digital display LED screen that clearly shows you what amount of stimulation you are using, the Remote Training Collar is simple to operate. Especially while your dog is off-leash, the Remote Training Collar helps you control your dog. Your dog’s receiver collar is activated by your remote transmitter when a signal is sent to it. Your dog will experience an unwelcome but safe stimulation. He’ll quickly come to understand the connection between his actions and your reprimand. For small and big dog breeds that are at least 6 months old and weigh more than 8 lbs, the Remote Training Collar has been shown to be secure, pleasant, and efficient. Any basic obedience commands can be taught with the Remote Trainer, and doing so consistently and effectively will assist to correct many undesirable habits which your pet displays.

It is crucial that both you and your dog stay secure while training while on a leash. Your dog has to be on a sturdy leash that is long enough for him to try and chase an object but short enough to prevent him from running into a road or another dangerous place. Additionally, you need to be physically fit enough to control your dog when he attempts to chase.\

What’s In the Box?

• Remote
• Strap
• Protective Rubber
• Metal Prone
• Test Bulb
• Receiver
• Wrist Strap
• Micro USB Cable

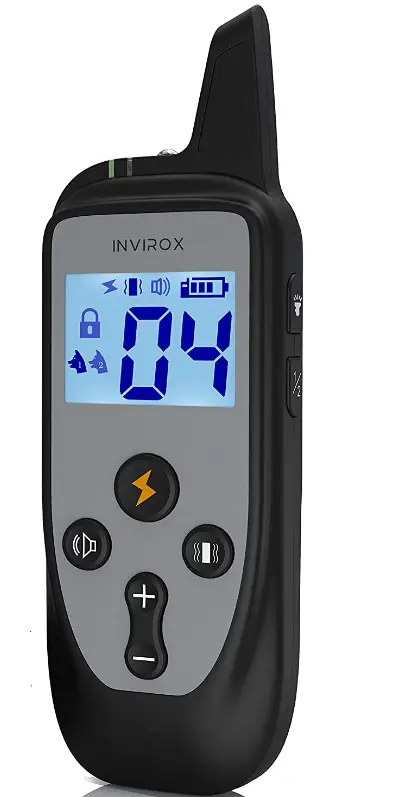

INVIROX Operating Guide

How to switch on/off the remote

1. To turn on the remote transmitter, press and hold the channel button (it has a 1/2 print) for 2 seconds. Backlight will be turned on.
2. Backlight will be off at 15 seconds if there is no operation.
3. If there is no activity for two minutes, the LCD display will be turned off. Any press on the button of the Remote Transmitter will activate the Remote Transmitter.

To turn the remote transmitter off
Press and Hold the channel button (1/2 print) for 2 seconds to power off the Remote Transmitter.

How to activate/deactivate the receiver collar

• The Receiver Collar will vibrate and the indicator will begin to blink in green after you press and hold the power button for two seconds.
• Press and hold the power button for 2 seconds to switch off the receiver collar. A beep will sound, and the GREEN LED indication will turn off.

Note
When not in use, turn off the receiver collar and remote to prolong the life of the product’s batteries.

The INVIROX training collar fitting procedure

Effective dog training sessions depend on the collar’s fit and positioning on your dog’s neck. The contact point must make direct contact with the skin of your dog’s neck underside. Please adhere to these instructions to guarantee a good fit.

1. Put your dog’s neck where the receiver collar will be. Center the contact points so that they touch the skin just below your dog’s neck.
2. The receiver collar should be snug but not too loose that one finger cannot fit between the strap and the neck of your pet.
3. In order to ensure consistent contact with skin, you may need to clip your dog’s fur in the contact region if it has long fur. Longer metal contact points are provided to you in the INVIROX training package. The risk of skin irritation may increase if the dog’s neck is shaved(!).

Note
 Generally speaking, shock mode should only be used in emergency scenarios. Beep and vibration are recommended for regular routine.

Recharging the gadget

• Lithium-Polymer batteries are used with the remote training collar.
• Charge the gadget away from anything flammable. Before use, the remote transmitter and receiver collar must be fully charged.

If: You must charge the remote or training collar.

• The indicator light is rapidly blinking.
• On the remote’s LCD screen, there is only one battery level.
• When in use, the remote’s indicator light won’t turn on.

Charging procedures

1. Connect the adaptor to a typical wall outlet.
2. Remove the rubber cover from the charging jack on the receiver collar.
3. The charging jacks on the receiver collar and the remote transmitter should be connected with the USB connectors.
4. Connect the PC, power bank, or power charger to the USB port.

How to Connect the Receiver Collar and Remote Transmitter

Follow these procedures to pair if your Receiver Collars are not beeping when you push the Remote Transmitter’s Warning Tone Button or if you believe they are not responding.

1. To turn on the collar receiver, press and hold the power button for two seconds.
2. To activate pairing mode, press the power button three times. A buzzer will sound, and the indicator will solidify. You now have 10 seconds to finish pairing the two devices.
3. To finish the pairing, press the dog training collar on the remote transmitter. The Receiver Collar will then react to your Remote operation.
