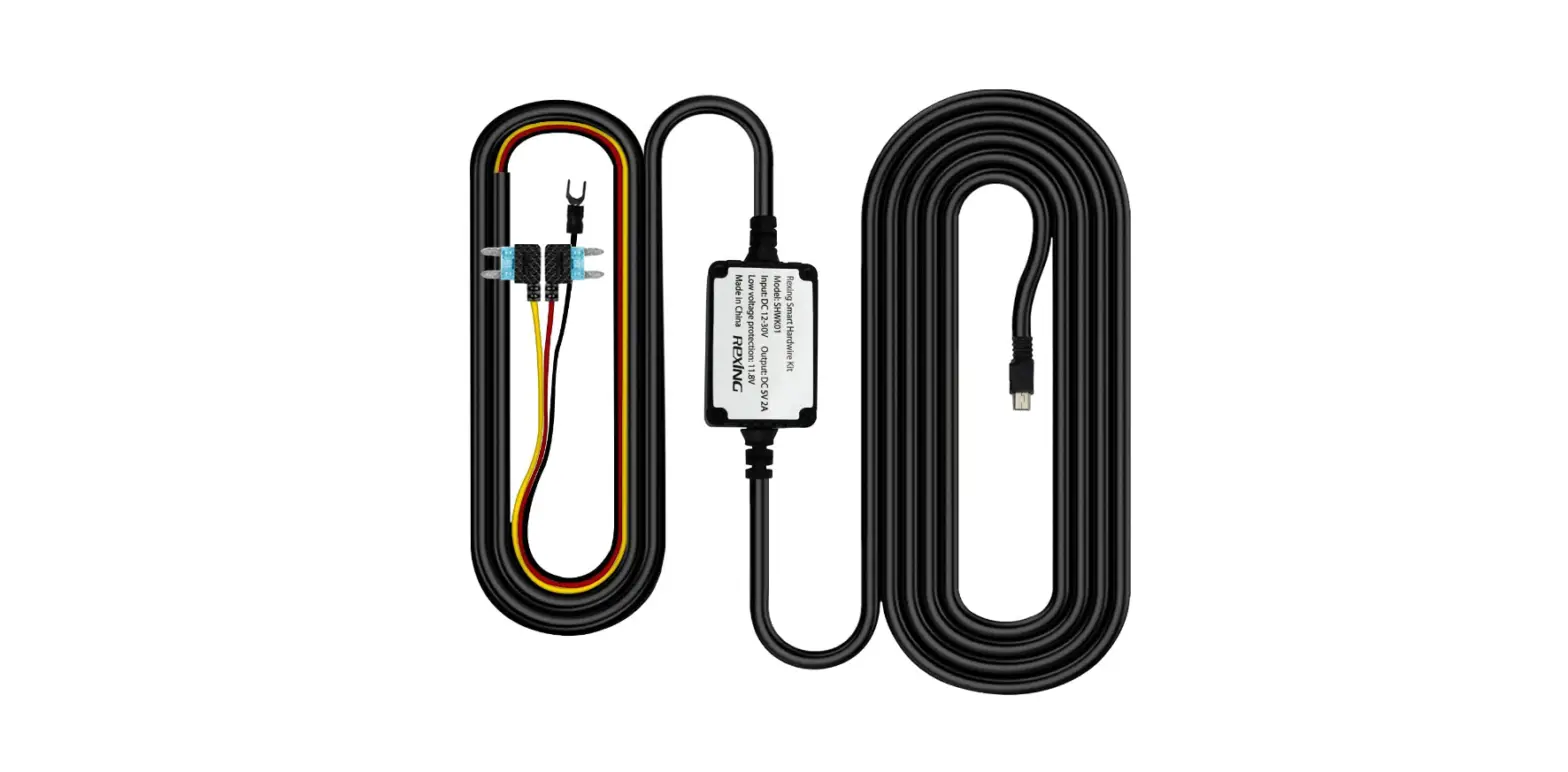

REXING Intelligent Hardwire Kit
Overview
Thank you for choosing REXING!
We hope you love your new products as much as we do. If you need assistance, or have any suggestions to improve it, please contact us.
(877) 740-8004
Our support team will respond you as soon as possible.
Always a surprise in Rexing.
Check us out here.
- https://www.facebook.com/rexingusa/
- https://www.instagram.com/rexingdashcam/
- https://www.rexingusa.com/support/registration/

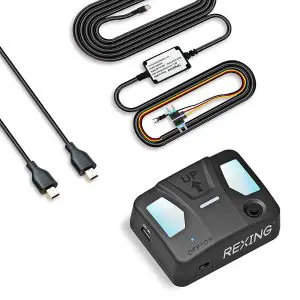

What’s in the Box?

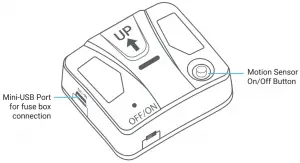

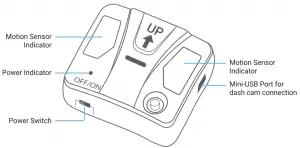

- Motion Sensor

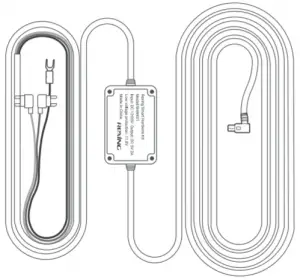

- . Smart Hardwire Kit

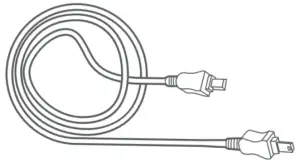

- Mini-USB to Mini-USB Cable
- User manual
 Please DO NOT enable the parking monitor function in the settings of the dash cam once connected. This intelligent hardwire kit will override the dash cam’s parking monitor feature. |
Overview
Step One

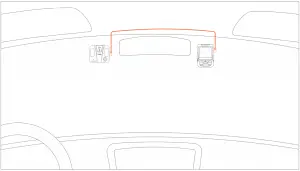

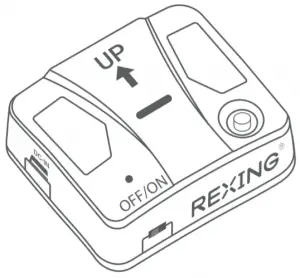

Once the dash cam is attached on the windshield with the included adhesive mount, place the motion sensor on the top of the windshield about a few inches away from the dash cam.
| Please make sure that the motion sensor is not blocked by any object, especially the rear view mirror. |
Step Two

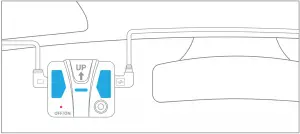

Connect the motion sensor with the included USB cable.
Step Three

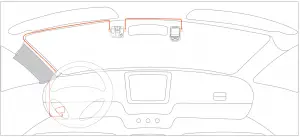

Run the wiring towards the fuse box with the included smart hardwire kit.

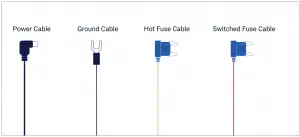

Smart Hardwire Kit Connection
 If you have different fuse type, please visit our support page at https://www.rexingusa.com/support/ for details. |
Step One

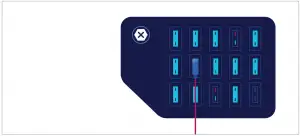

Find the switched fuse and connect the RED cable to it. This fuse has power only when the car is on.
Step Two

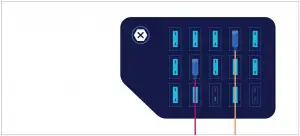

Find the hot fuse the connect the YELLOW cable to that. This fuse has power at all time.
Step Three

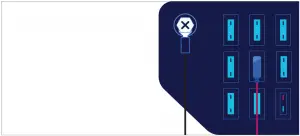

Attach the black fuse cable. Make sure to attached the GROUND cable to the bolt near the fuse box.
Step Four
Finally, connect the power cable to the dash cam. Please DO NOT enable the parking monitor function in the settings of the dash cam. The motion sensing will automatically on once the vehicle is powered off.
Once the blue indicator is on, which means that the sensor has detected motions.
The intelligent hardwire kit will power up the dash cam automatically and start recording until the motion is cleared.
Warranty & Support
Warranty
The Rexing Intelligent Hardwire Kit comes with a full 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months.
Support
If you have any questions regarding your product, please do not hesitate to contact us at [email protected], or call us at (877) 740-8004. Queries are typically answered within 12-24 hours.
Your opinion matters
Rexing is firmly committed to always improving our products, services, and user experience. If you have any thoughts on how we can do even better, we welcome your constructive feedback and suggestions.
Connect with us today at [email protected]
Thank you for choosing Rexing!
