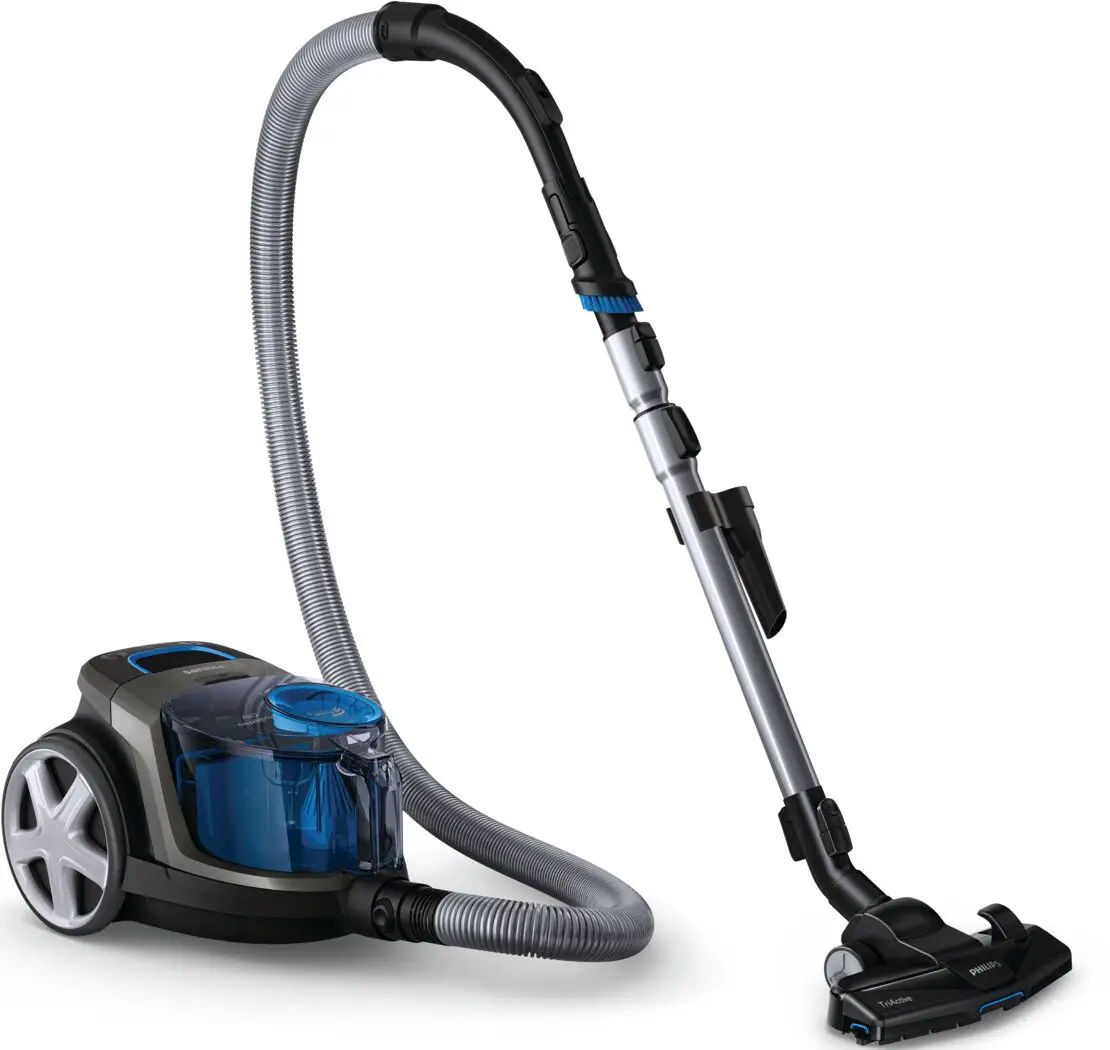

Philips FC9332/07 99.9% of Dust Vacuum Cleaner

Philips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-featured

Description

Picks up 99.9%* of fine dust

Hygienic emptying with one hand with the Philips Bagless Vacuum 4000 Series, compact design meets king-size performance. Enjoy thorough cleaning throughout your home thanks to PowerCyclone 5 technology and our TriActive nozzle feature 3 cleaning actions in one.

Superior performance

  • 900W motor for high suction power
  • 99.9% dust pick-up* to deliver high-cleaning performance
  • PowerCyclone 5 keeps strong suction power for longer
  • TriActive nozzle for 3-way thorough cleaning action
  • Allergy H13 filter system captures >99.9% of fine dust
  • Turbo Brush, perfect for (pet) hair and fluff cleaning
  • Parquet nozzle with soft brush hairs for scratch-protection

Effortless cleaning

  • Dust container designed for hygienic emptying with one hand
  • Compact and lightweight for easy carrying
  • Soft brush integrated into the handle, always ready to use
  • ActiveLock couplings easily adjust to every task

Highlights

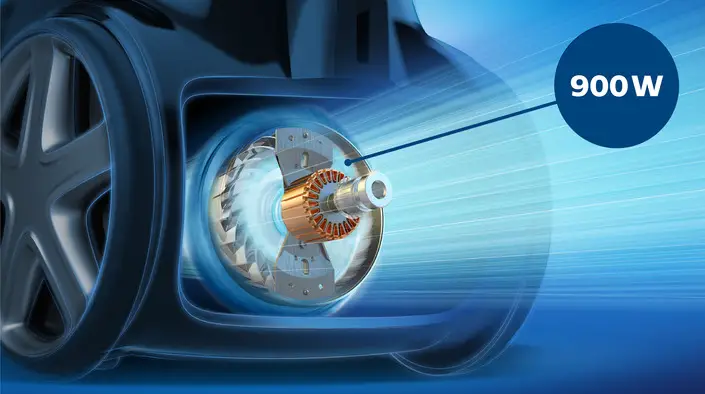

High-efficiency 900W motorPhilips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-1

High-efficiency 900W motor delivers high suction power for thorough cleaning results.

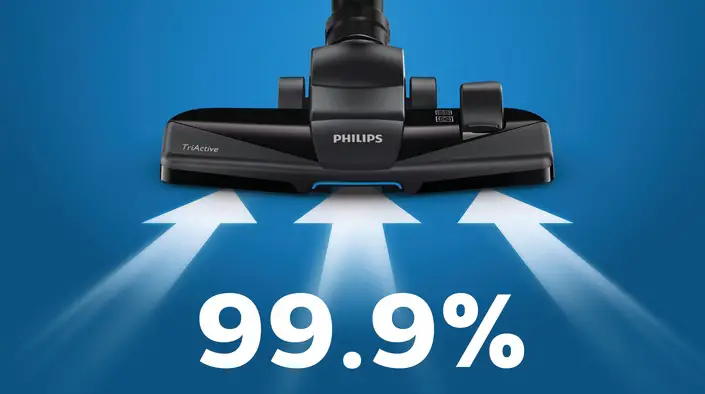

99.9% dust pick-upPhilips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-2

TriActive nozzle and high suction power ensure you can vacuum 99.9% of fine dust.

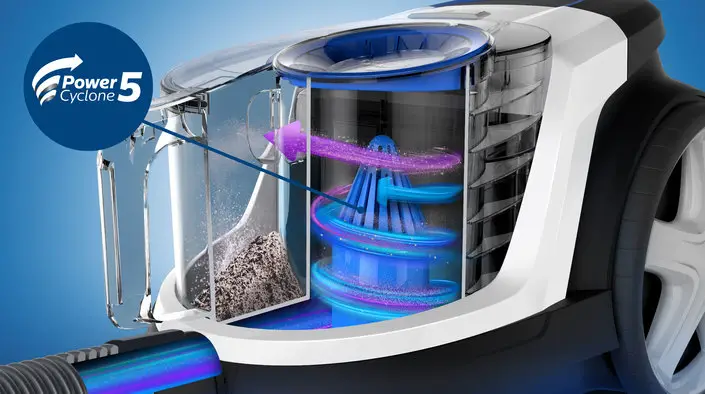

PowerCyclone 5 technologyPhilips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-3

PowerCyclone 5 technology accelerates the airflow in the cylindrical chamber to separate dust from the air and maintain high performance and strong suction power for longer.

TriActive nozzlePhilips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-4

TriActive nozzle utilizes 3 cleaning actions in one go. The specially designed soleplate removes dust from deep within carpets, while the large front opening sucks up big bits. Air channels and brushes on both sides of the nozzle pick up any dust and dirt alongside walls or furniture.

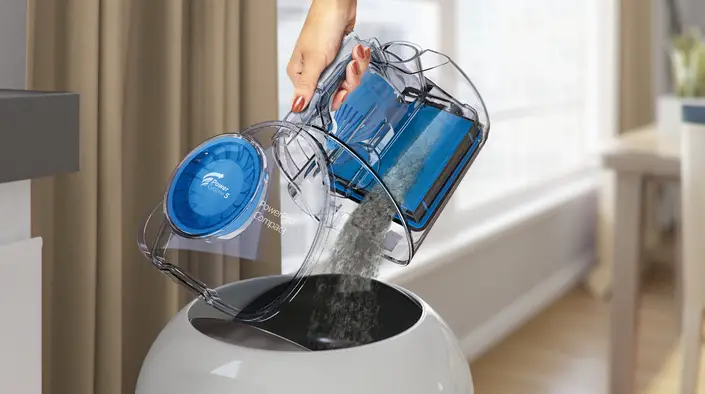

Hygienic dust disposalPhilips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-5

The easy-to-empty dust container is designed for hygienic disposal with one hand, to help minimize dust clouds.

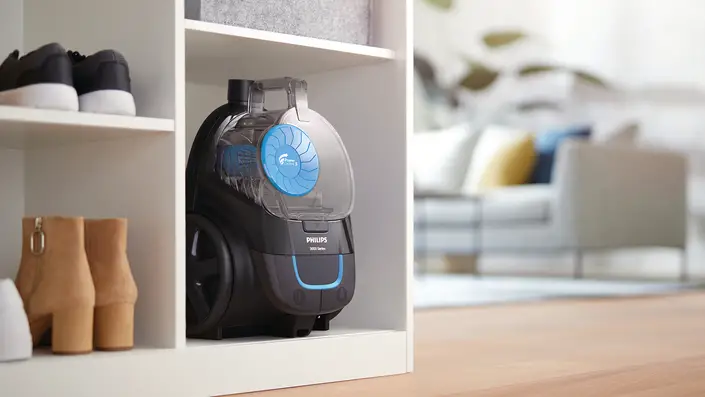

Compact and lightweightPhilips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-6

The compact and lightweight design ensures both storing and carrying the vacuum is easy.

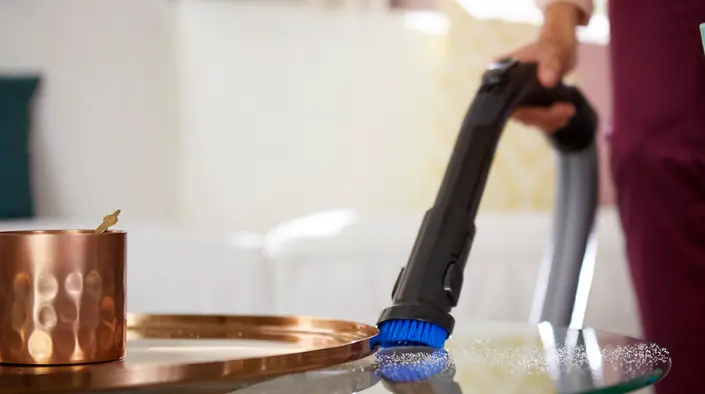

Integrated brush

Philips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-7

The dusting brush tool is built into the handle so it’s always ready to use on furniture, flat surfaces, and upholstery.

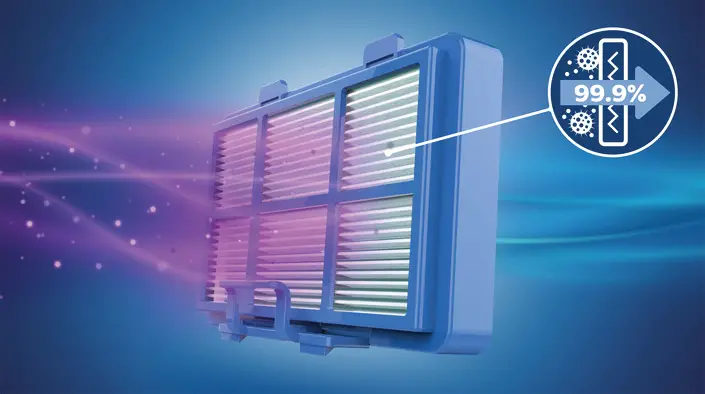

Allergy H13 filter

Philips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-8

The fully-sealed filtration system captures >99.9% of fine dust particles – including pollen, pet hair, and dust mites – for allergy sufferers and anyone demanding a higher level of hygiene. The filtration level is equivalent to HEPA 13

IF GOLD DESIGN AWARD 2018

Philips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-9

IF award-winning products and projects, concepts, and more, are selected by the top names in design.For 65 years, the iF DESIGN AWARD has been recognized as an arbiter of quality for exceptional design. The iF label is renowned worldwide for outstanding design services, and the iF DESIGN AWARD is one of the most important design prizes in the world.

Philips Green Logo

Philips-FC9332(07)-Picks-up-99.9%-of-Dust-Vacuum-Cleaner-fig-10

Philips Green Products can reduce costs, energy consumption, and CO2 emissions. How? They offer a significant environmental improvement in one or more of the Philips Green Focal Areas – Energy efficiency, Packaging, Hazardous substances, Weight, Recycling and disposal, and Lifetime reliability.

Specifications

Performance

  • Airflow (max): 27.8 l/s
  • Annual energy consumption: 24.3 kW·h
  • Input power (IEC): 750 W
  • Input power (max): 900 W
  • Sound power level: 76 dB
  • Vacuum (max): 16.8 kPa

Usability

  • Action radius: 9 m
  • Carrying handle: Front
  • Cord length: 6 m
  • Tube type: Metal 2-piece telescopic tube
  • Wheel type: Rubber

Design

  • Color: Titanium

Filtration

  • Dust capacity: 1.5 L
  • Exhaust filter: Allergy H13 filter
  • Motor filter: Washable filter
  • Filtration level: HEPA13 level

Nozzles and accessories

  • Accessories included: Crevice tool, Integrated brush
  • Accessory storage: On tube clip
  • Additional nozzle: Hard floor nozzle, Turbo brush
  • Standard nozzle: TriActive nozzle

Sustainability

  • Packaging: > 90% recycled materials
  • User manual: 100% recycled paper

Weight and dimensions

  • Dimensions of the product (LxWxH): 410 x 281 x 247 mm
  • Weight of product: 4,5 kg
  • Dimensions of packaging (LxWxH): 525 x 320 x 315 mm

Accessories

  • Filter replacement kit: FC8010/02

FAQ’s

Is Philips bagless vacuum cleaner wet or dry?

PHILIPS FC9332/07 (883935201280) Bagless Dry Vacuum Cleaner with Powerful Suction, Turbo Brush (Blue).

What is the suction power of the Philips vacuum cleaners?

Enjoy thorough cleaning throughout your home thanks to Power Cyclone 5 technology and our Multi Clean nozzle. The durable 1900W motor generates up to 370W of high suction power for thorough cleaning results. * This Philips FC9332/07 Vaccum Cleaner image is for illustration purposes only. The actual image may vary.

How do you open a Philips vacuum cleaner?

Press the button on the nozzle to release the dust bucket. Open the lid by pulling up the side tab. After emptying the dust bucket, close it by clicking on the lid.

When should I empty my bagless vacuum?

Before you pat yourself on the back for emptying the canister every time it looks full, let us leave you with this little tidbit: It actually should be emptied when it’s only half full to maintain maximum suction.

Why use a bagless vacuum?

Bagless vacuums can save you money because you don’t have to buy replacement bags. But like bagged vacuums, they have filters that need periodic cleaning or—for HEPA filters—replacing, probably more often than with a bagged vacuum.

What is the pressure of a vacuum cleaner?

Vacuum can refer to any pressure between 0 PSIA and 14.7 PSIA and consequently, must be further defined.

What is the strength of a vacuum cleaner?

The power is measured in Watt (W). The typical consumption of Watt for industrial vacuum cleaners will be between 1000-4000 W depending on the application. For a machine with one motor, it is typically 1000-1500 W.

How often do you change the filter on a Philips vacuum?

We advise you to replace the motor protection filter of your Philips Vacuum every 2 years. The motor protection filter is placed behind the disposable dust bag or reusable dust bag.

How do I charge my Philips vacuum 4000?

When the light of your Philips 4000 vacuum cleaner blinks red, it indicates that the battery is empty. Charge the battery by placing the appliance on the charging station or wall mount.

Why my Philips vacuum cleaner suddenly stopped working?

Sometimes your vacuum’s hose, tube, or nozzle may become clogged or blocked. Also, the brush could be blocked by tangled hair. The suction power will be affected by this and your vacuum might not be able to pick up dirt as expected since air cannot go through as easily as it should.

How do you clean a bagless vacuum cleaner?

Clean the Canister: Empty the canister, then wipe the interior down with a microfiber cloth. The best-case scenario is washing the entire canister in warm soapy water. It will remove all remaining dirt, dust, grime, and hair most efficiently.

Can you wash the Philips vacuum filter?

The exhaust filter is located on the back (or at the bottom in some cases) of your Philips vacuum, behind a removable grille. This filter needs to be replaced once a year. It cannot be washed.

Can I leave the vacuum on charge?

The battery is designed to be left on charge permanently, and this will ensure that the vacuum is fully charged when it’s next used. Once the battery is fully charged, your machine won’t use any more electricity.

How do I know when my vacuum is fully charged?

The LED light on the end of the handle will pulse with a blue LED light when charging, and the light will go out when fully charged. It can take up to four hours to fully charge your battery.

Can I charge my vacuum overnight?

If it is a lithium-ion battery then yes it can stay plugged in all the time. But if it is a nickel metal hydride then it should be run down, charged fully, and then unplugged. Lithium batteries do not get a memory so they can be charged no matter what the state of charge is.
