Form No. 3456-237 Rev A
Flex-Force Power System™ 60V
MAX 21in Recycler®
Lawn Mower with SmartStow®
Model No. 21326—Serial No. 400000000 and Up
Installation Guide
21326 60V Recycler Lawn Mower
Parts Catalog
Register at www.Toro.com.
Original Instructions (EN)
Ordering Replacement Parts
To order replacement parts, please supply the part number, the quantity, and the description of each part desired.
Understanding Reference Numbers
Each identified part in an illustration has a reference number. The reference number for a part also appears in the parts list, along with other information about the part.
This catalog uses two special reference number formats, one to indicate parts in a service assembly and another to indicate the quantity of a given part in an illustration.
Service Assembly Reference Numbers
Parts in service assemblies have reference numbers in the form a:b. The a represents the reference number of the entire service assembly and the b represents a sequential number unique to each part within the service assembly.
For example, a wheel assembly might be identified by reference number 6, the tire by 6:1, the valve by 6:2, and the wheel by 6:3. When you order the assembly identified by reference number 6, you receive all parts identified by reference numbers 6:1,6:2, and 6:3. However, you may also order any part individually. Reference numbers of this type appear in illustration and in parts lists.
Reference Numbers Indicating Quantity
In an illustration, if a reference number indicates more than one part, the reference number has the form nX y. Then represents the quantity of the part, the X is the multiplication symbol, and the y represents the reference number.
For example, in an illustration, the reference number 2X 37 means that two of the parts identified by reference number 37 are indicated.

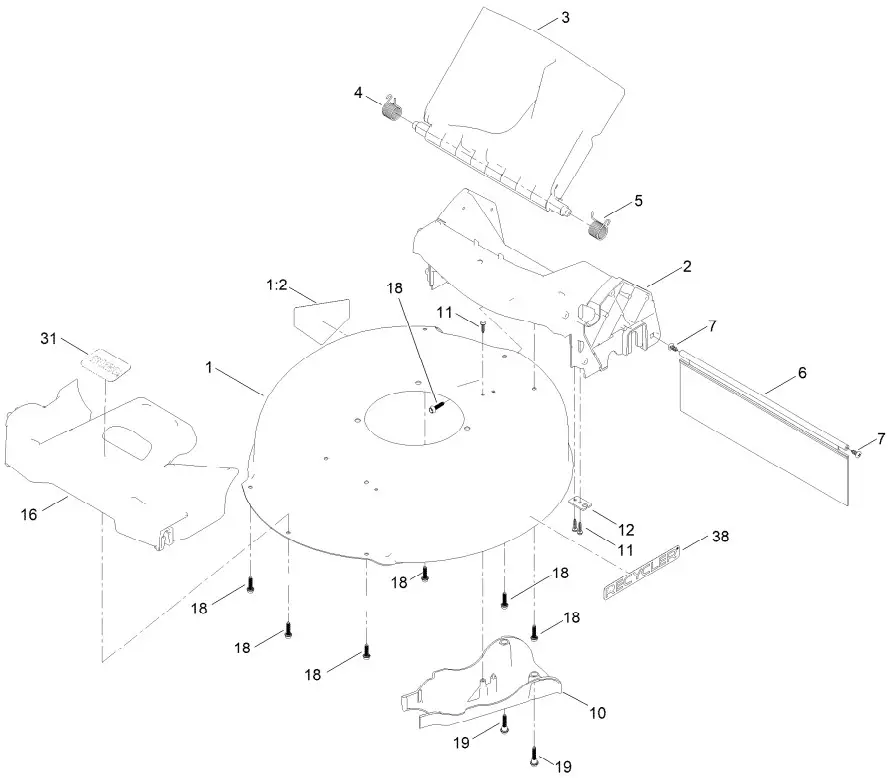

Housing Assembly
| Ref. | Part Number | Qty. | Description | Ref. | Part Number | Qty. | Description |
| 1 | 147-8621 | 1 | Housing ASM | 10 | 127-0723 | 1 | Cover-Belt |
| 1:02 | 94-8072 | 1 | Decal-Danger | 11 | 127-6831 | 3 | Screw-HWH |
| 2 | 145-5506 | 1 | Chute-Sp/Awd, 21 In | 12 | 127-0730 | 1 | Bracket-Cable |
| 3 | 145-5517 | 1 | Deflector-Rear ASM | 16 | 145-5518 | 1 | Bumper |
| 4 | 147-0465 | 1 | Spring-Torsion | 18 | 130-6658 | 7 | Screw-Flange, Plastic |
| 5 | 147-0466 | 1 | Spring-Torsion | 19 | 131-0837 | 2 | Screw-Shoulder, HHF |
| 6 | 147-0443 | 1 | Shield-Trailing | 31 | 145-0854 | 1 | Decal-Toro, Silver |
| 7 | 117-1092 | 2 | Screw-PTH | 38 | 140-4184 | 2 | Decal |

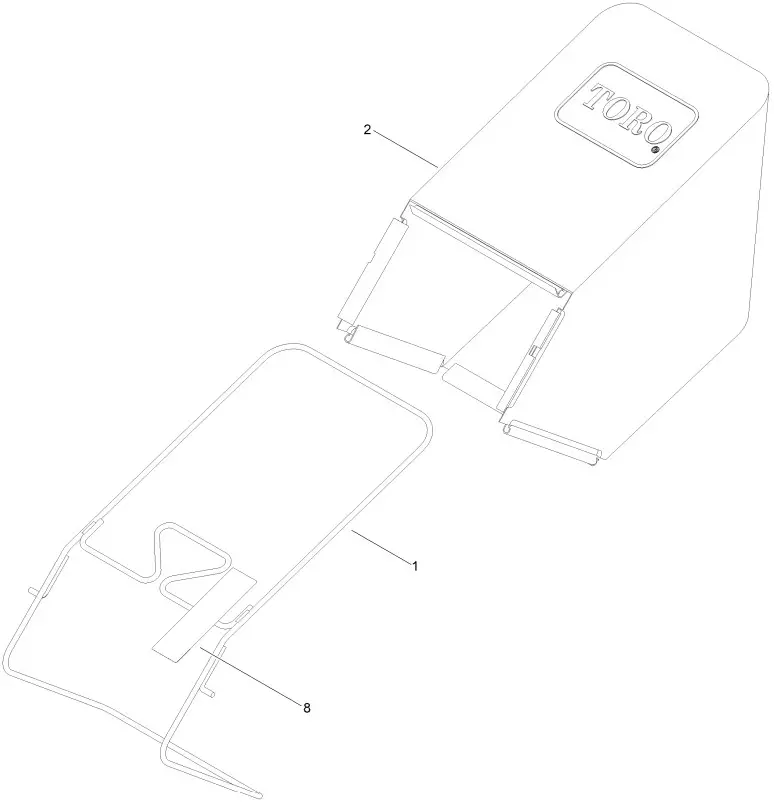

Grass Bag and Frame Assembly
| Ref. | Part Number | Qty. | Description |
| 1 | 145-5512-03 | 1 | Frame-Bag |
| 2 | 147-0418 | 1 | Bag ASM |
| 8 | 139-8986 | 1 | Decal-Warning (Bag) |

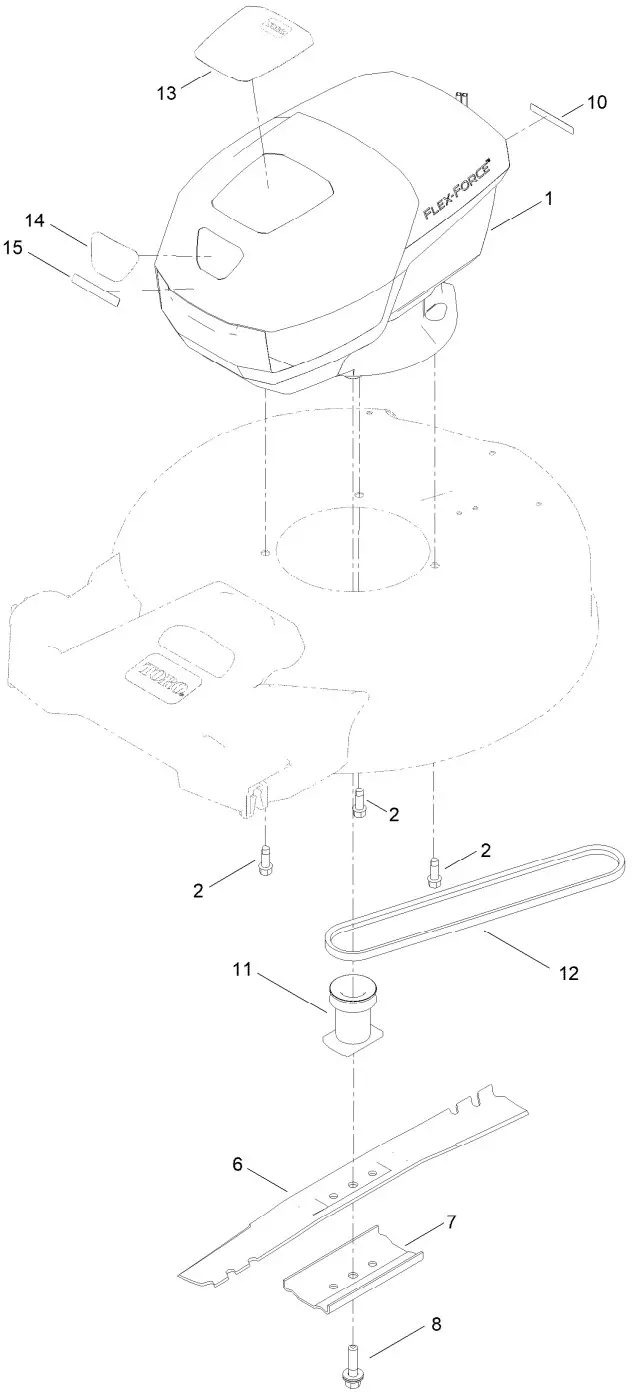

Motor Module and Blade Assembly
| Ref. | Part Number | Qty | Description |
| 1 | 138-6660 | 1 | Module-Motor |
| 2 | 95-1726 | 3 | Screw-Taptite |
| 6 | 140-1274-03 | 1 | Blade-21In (Mulch, Hs) |
| 7 | 108-3766-03 | 1 | Support-Blade |
| 8 | 125-2466 | 1 | Bolt-Blade |
| 10 | 133-8061 | 1 | Decal-Warning |
| 11 | 139-1816 | 1 | Driver-Blade |
| 12 | 115-4669 | 1 | Belt-V |
| 13 | 147-0586 | 1 | Decal-Flexforce Brushless |
| 14 | 147-0587 | 1 | Decal |
| 15 | 147-0588 | 1 | Decal-Lithium |

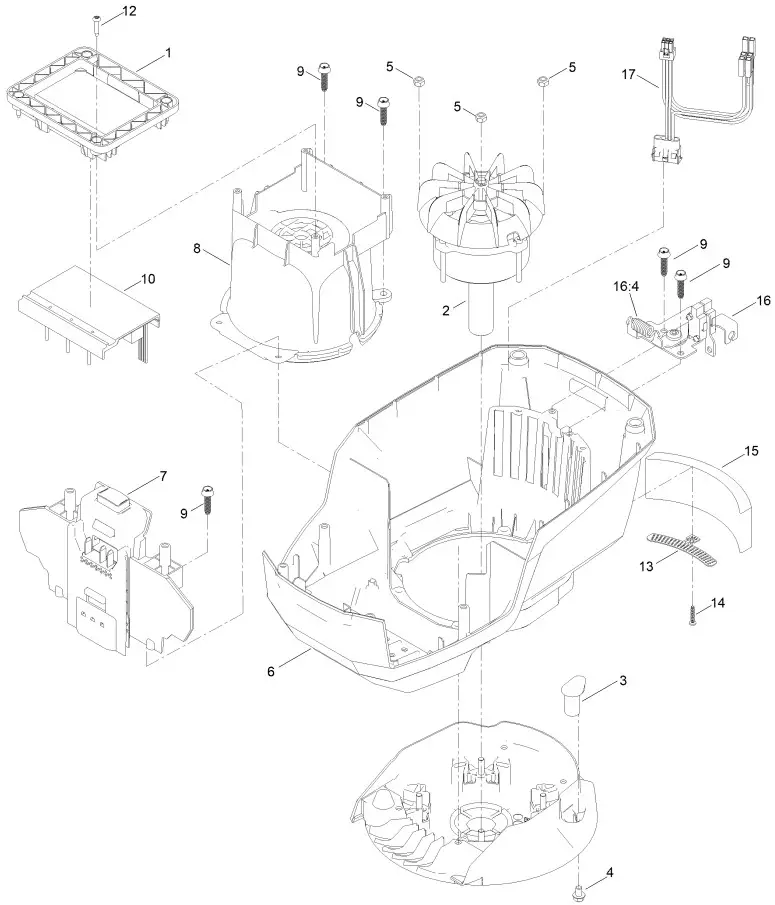

Motor Module Assembly No. 138-6660
Lower Shroud Assembly
| Ref. | Part Number | Qty. | Description |
| 1 | 139-6628 | 1 | Base-Mount, Motor |
| 2 | 138-6661 | 1 | Motor, 60 Volt |
| 3 | 131-9732 | 3 | Insert-Mount, Motor |
| 4 | 137-4795 | 3 | Screw |
| 5 | 115-7373 | 4 | Nut-Lock |
| 6 | 139-6631 | 1 | Shroud-Lower |
| 7 | 139-6632 | 1 | Battery Reciever ASM |
| 8 | 139-6633 | 1 | Shroud-Motor |
| 9 | 130-6658 | 6 | Screw-Flange, Plastic |
| 10 | 138-6662 | 1 | Controller-Motor, 60 Volt |
| 12 | 139-6642 | 4 | Screw |
| 13 | 139-6635 | 1 | Bracket-Foam |
| 14 | 138-3273 | 1 | Screw-Plastic, PPH |
| 15 | 139-6636 | 1 | Foam |
| 16 | 133-1918 | 1 | Bail Switch ASM |
| 16:04 | 145-5800 | 1 | Spring-Extension |
| 17 | 139-6637 | 1 | Harness-Wire |
Motor Module Assembly No. 138-6660

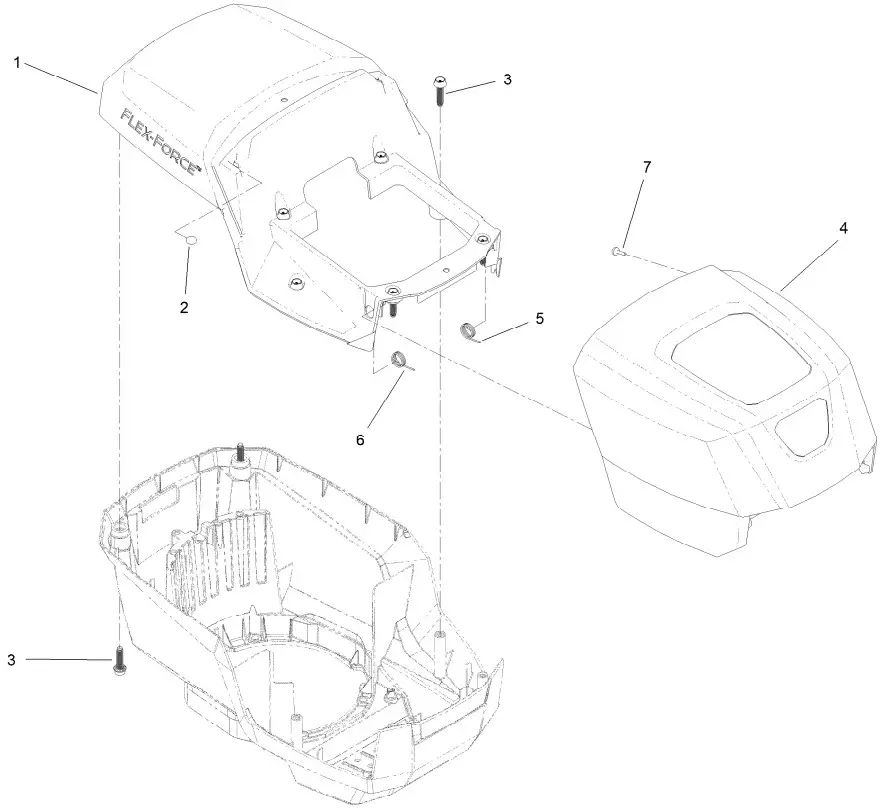

Hood and Upper Shroud Assembly
| Ref. | Part Number | Qty. | Description |
| 1 | 139-6638 | 1 | Shroud-Upper |
| 2 | 114-5896 | 2 | Magnet |
| 3 | 130-6658 | 8 | Screw-Flange, Plastic |
| 4 | 139-6639 | 1 | Hood |
| 5 | 139-6640 | 1 | Spring-LH |
| 6 | 139-6641 | 1 | Spring-RH |
| 7 | 95-4234 | 2 | Screw-PPH |

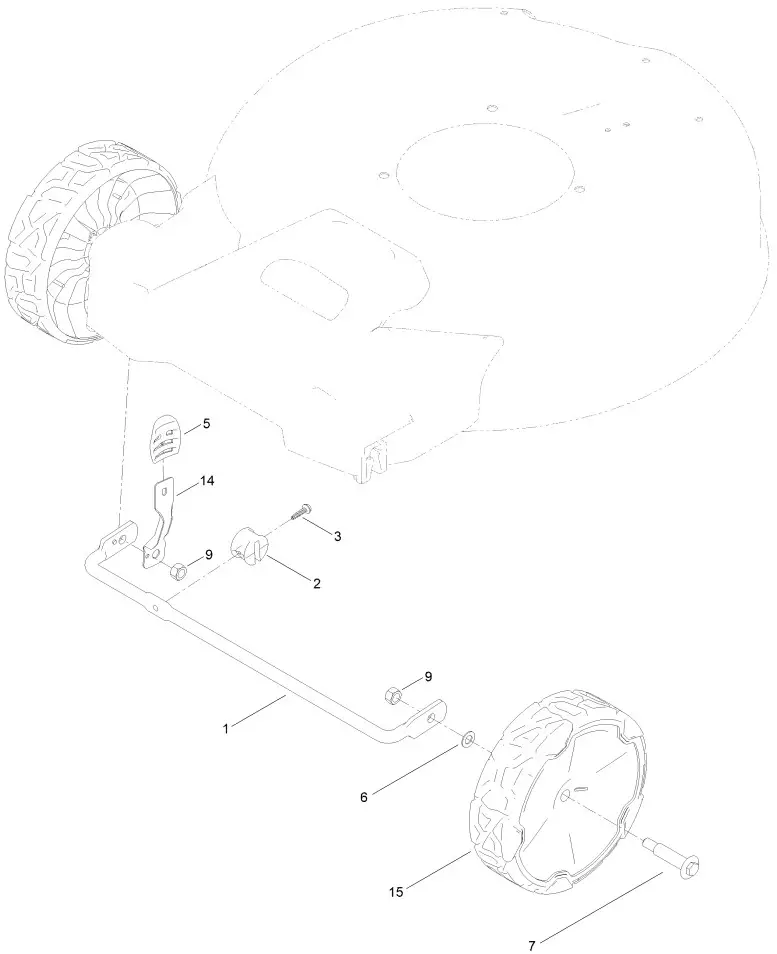

Front Wheel and Height-of-Cut Assembly
| Ref. | Part Number | Qty. | Description |
| 1 | 127-0668-03 | 1 | Axle-Front |
| 2 | 127-6800 | 1 | Stop-Axle |
| 3 | 127-6831 | 1 | Screw-HWH |
| 5 | 105-3042 | 1 | Knob-Lever, HOC |
| 6 | 40-1940 | 2 | Washer |
| 7 | 92-1057 | 2 | Bolt-Shoulder |
| 9 | 603773 | 2 | Nut-Hex Lock |
| 14 | 147-0435 | 1 | Arm-Spring |
| 15 | 140-2355 | 2 | ASM-8″ Wheel, Idler |
Rear Wheel and Height-of-Cut Assembly
| Ref. | Part Number | Qty. | Description |
| 1 | 145-5501-03 | 1 | Axle-Rear, Wa |
| 2 | 138-3234 | 2 | Retainer-Bearing |
| 3 | 104-8699 | 2 | Bearing-Ball |
| 4 | 127-6831 | 4 | Screw-HWH |
| 5 | 127-6896 | 2 | Bushing-Sleeve |
| 6 | 145-5515 | 1 | Transmission (7:1 Ratio) |
| 7 | 145-5513-03 | 1 | Bracket-Transmission |
| 8 | 108-7476 | 3 | Screw-Plastite |
| 9 | 131-5399 | 2 | Gear-Pinion, 15T |
| 10 | 32151-61 | 2 | Ring-Retaining |
| 11 | 140-2362 | 2 | ASM-Cover, Gear (Dk Gray) |
| 11:02 | 614426 | 1 | Washer-Stepped |
| 12 | 92-1057 | 2 | Bolt-Shoulder |
| 13 | 140-2350 | 2 | ASM-9.65″ Wheel, Geared |
| 14 | 147-0437 | 1 | Arm-Spring |
| 15 | 105-3042 | 1 | Knob-Lever, HOC |
| 16 | 603773 | 2 | Nut-Hex Lock |

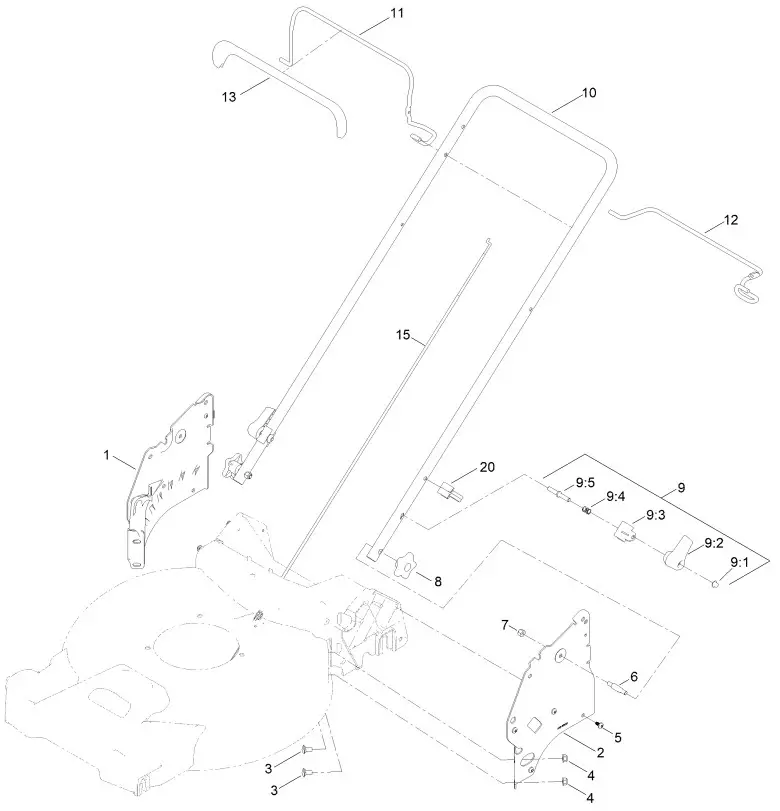

Handle Assembly
| Ref. | Part Number | Qty. | Description |
| 1 | 145-5507-05 | 1 | Plate-Handle, RH |
| 2 | 145-5508-05 | 1 | Plate-Handle, LH |
| 3 | 3230-18 | 4 | Screw-CARR |
| 4 | 130-6655 | 4 | Nut-Flange, NI |
| 5 | 139-1679 | 8 | Screw-Plastic,PH |
| 6 | 139-6588 | 2 | Bolt-Shoulder, Handle |
| 7 | 3296-29 | 2 | Nut-Lock, NI |
| 8 | 117-5976 | 2 | Knob-Handle |
| 9 | 138-3249 | 2 | Quick Release ASM |
| 9:01 | 140-4157 | 1 | Nut-Push |
| 9:02 | 138-3248 | 1 | Lever-Release |
| 9:03 | 138-3253 | 1 | Anchor-Spring |
| 9:04 | 115-2858 | 1 | Spring-Compression |
| 9:05 | 140-4158 | 1 | Rod-Release |
| 10 | 145-5509-05 | 1 | Handle-Upper |
| 11 | 138-3270-03 | 1 | Bail-Brake |
| 12 | 137-4799-03 | 1 | Bail-Traction |
| 13 | 137-4797 | 1 | Cover-Bail |
| 15 | 127-0733 | 1 | Cable-Traction |
| 20 | 114-7988 | 1 | Guide-Cable |

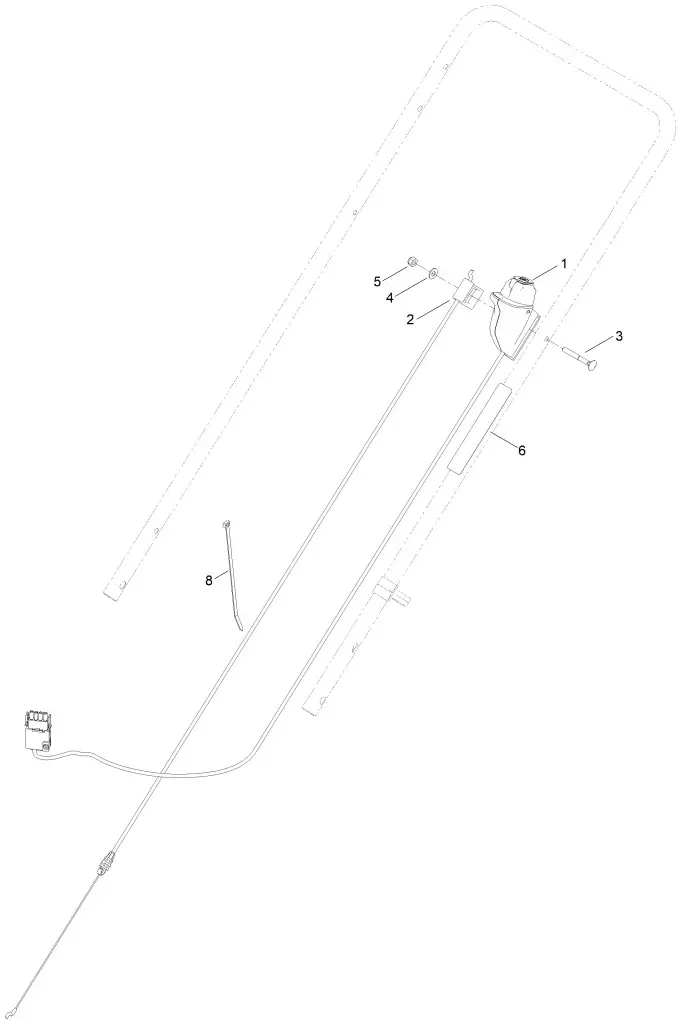

Starter Assembly
| Ref. | Part Number | Qty. | Description |
| 1 | 133-8140 | 1 | Starter Switch ASM |
| 2 | 147-0444 | 1 | Cable – Brake |
| 3 | 92-2269 | 1 | Screw-Handle |
| 4 | 3256-1 | 1 | Washer-Flat |
| 5 | 3296-73 | 1 | Nut-Lock, NI |
| 6 | 144-3175 | 1 | Decal-Controls (60V Start) |
| 8 | 614249 | 1 | Tie-Cable |
Attachments and Accessories
For 21326 Flex-Force Power System 60V MAX 21in Recycler Lawn Mower with SmartStow
Product Name ……………………………. Model/Part
SD Chute Kit ……………………………. 147-0520
Smart Stow Walk Power Mower Cover ……………………………. 490-2012
Lawn Striping Kit with 22in Roller ……………………………. 20601
Bag-Walk Behind (Toro) ……………………………. 490-7318
60V LI-ION, Battery 4.0 AH ……………………………. 88640
60V LI-ION Battery 5.0 AH ……………………………. 88650
60V LI-ION Battery 6.0 AH ……………………………. 88660
60V LI-ION Battery 7.5 AH ……………………………. 88675
60V Battery Charger 2 AMP ……………………………. 88602
60V Rapid Battery Charger 5.4 AMP ……………………………. 88605
60V Cordless Blower (Bare Tool) ……………………………. 51820T
60V Cordless Trimmer (Bare Tool) ……………………………. 51830T
60v 24in Max Hedge Trimmer (Bare Tool) ……………………………. 51840T
16in 60V Max Chainsaw (Bare Tool) ……………………………. 51850T
Power Clear 21in 60V Cordless (Bare Tool) ……………………………. 39901T
