LED Light Strip User Guide
LED Light Strip User Guide
THANK YOU for choosing Novostella. To optimize user experience, please install and use the light according to the following instruction.
Warning
(1) Winding lighting is prohibited, as it affects heat dissipation and might cause dangers.
(2) Please unroll the light strip from the plate before lighting it up.
(3) This light strip can only work with ONE power adapter in a series connection of FIVE meters maximally.
(4) Please check if the light strip and the parts are intact before using them.
(5) Please make sure that the power supply is turned off before installation.
(6) To ensure that the light works properly, please use the voltage indicated on the packing.
(7) Please do not use this light in the open air or in a humid environment.
Specification
| SKU | UT33301-WW | UT33301-DW | UT33313-WW | UT33313-DW |
| Wattage | 24W | 24W | 36W | 36W |
| LED Quantity | 300 LEDs | 300 LEDs | 600 LEDs | 600 LEDs |
| Color Temperature | 3000K | 6000K | 3000K | 6000K |
| Color | Warm White | Cool White | Warm White | Cool White |
| Luminous Flux | 300 Im/m | 300 Im/m | 600 Im/m | 600 Im/m |
| Working Voltage | 12V DC | |||
| Input Voltage | 100-240V AC | |||
| Protection Rating | IP20 | |||
| Frequency | 50/60Hz | |||
| Length | 5m/16.4ft | |||
| Beam Angle | 120° | |||
| Working Temperature | -25’40° | |||
| Package Includes | Light Strip x 1, Dimmer x 1, Power Adapter x 1, Fastener x 6 | |||
| SKU | UT33302-WW | UT33302-DW |
| Wattage | 24W | 24W |
| LED Quantity | 300 LEDs | 300 LEDs |
| Color Temperature | 3000K | 6000K |
| Color | Warm White | Cool White |
| Luminous Flux | 300 Im/m | 300 Im/m |
| Working Voltage | 12V DC | |
| Input Voltage | 100-240V AC | |
| Protection Rating | IP65 | |
| Frequency | 50/60Hz | |
| Length | 5m/16.4ft | |
| Beam Angle | 120° | |
| Working Temperature | -25’40° | |
| Package Includes | Light Strip x 1, Dimmer x 1, Power Adapter x 1, Fastener x 6 | |

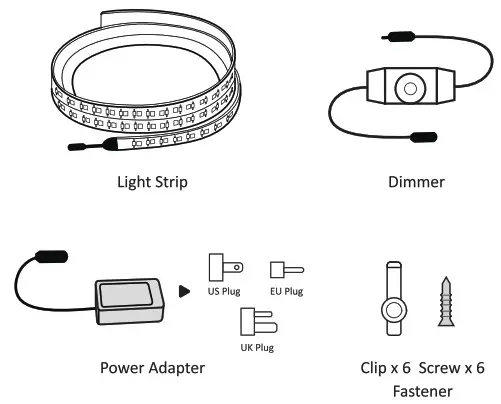

Components
Installation
According to your lighting project, if you need to cut the strip, please refer to step A. If you do not need to cut the strip, please skip step A and go to step B directly.

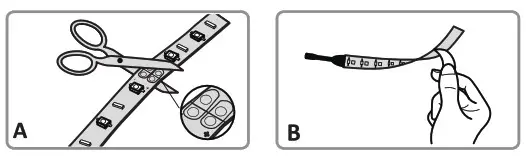

A. How to cut the LED Strip?
There is a ‘scissor’mark between every 3 LEDs on the strip. Please find those marks and cut the strip along the marks.
B. Peel off the covering of the light strip.

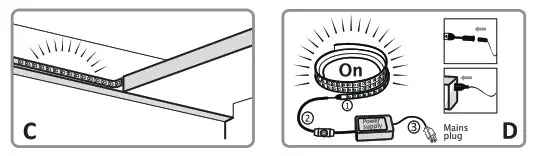

C. Choose somewhere that is level and smooth for the adhesive strip. To avoid falling out, please sweep the dust off the surface before sticking the strip.
D. Connect the light strip C)to dimmer cable ®, and then connect the dimmer cable to power adapter® (DC 12V). Plug the adapter into the socket and switch on the dimmer to light up the strip.
Note:
(1) If the strip can’t light up after the installation, please check whether the joints are connected correctly.
(2) Please make sure to turn off the power supply during routine maintenance.
(3) To avoid any damage to the strip, please do not use chemical solvent during routine maintenance.
