LeaperKim Sherman-S 100V Electric Unicycle User Manual

Overview of the User Manual

Thanks for purchasing LeaperKim electric unicycle. We will wholeheartedly provide you with satisfactory products and services.
This vehicle is strictly prohibited to drive on the motorway. It must be confirmed that it meets the requirements of local
laws and regulations. Do not use this product in the areas prohibited by laws and regulations. Do not use this product at the
speed specified by local laws and regulations.
In order that you can ride the LeaperKim electric unicycle more safely, please carefully read and understand all the
product information and precautions listed in this manual before riding, and refer to the instruction to operate LeaperKim electric unicycle.
Please maintain the vehicle regularly, which will help to keep the performance and resale value of the vehicle product.
Please keep this manual for future after-sales use.
Your satisfaction with the Leaper Kim electric unicycle is our driving force!

Description of Product

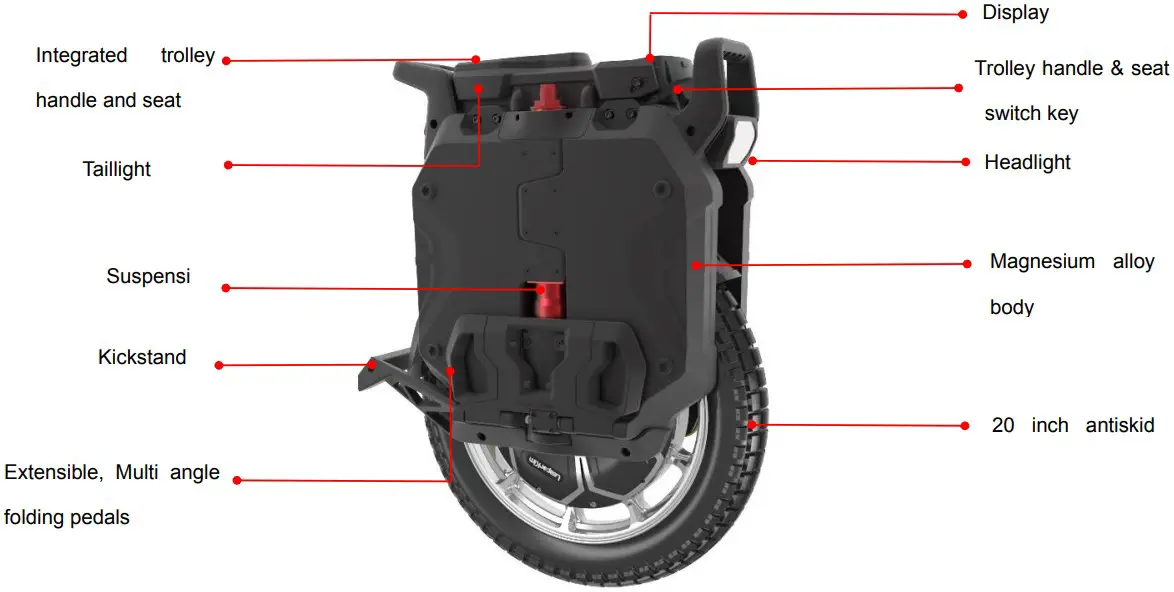

Function Schematic

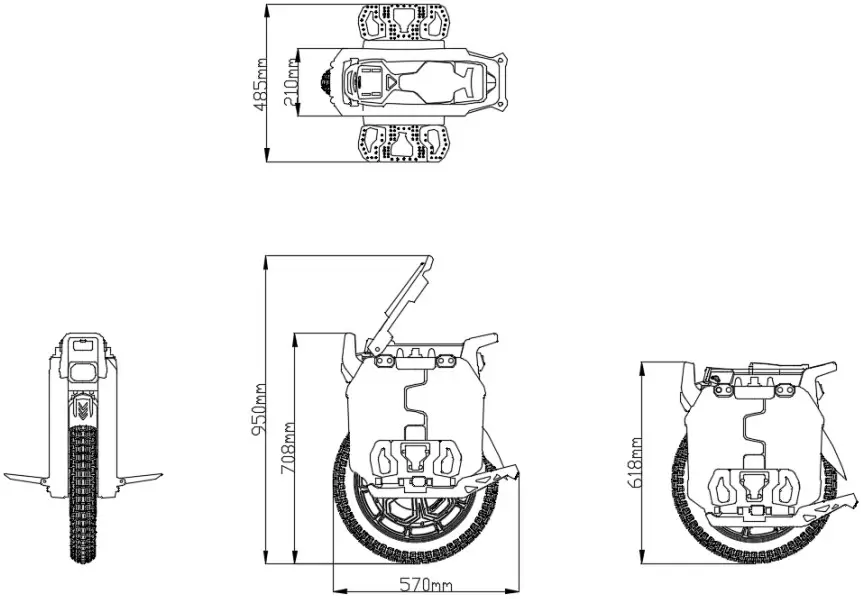

Product Size Drawing

Specification

Packing List

Function Introduction

Mid-mounted normal suspension

Function Introduction：

• Compression 12 clicks;
• Rebound 18 clicks;
• 12mm preload adjustable.

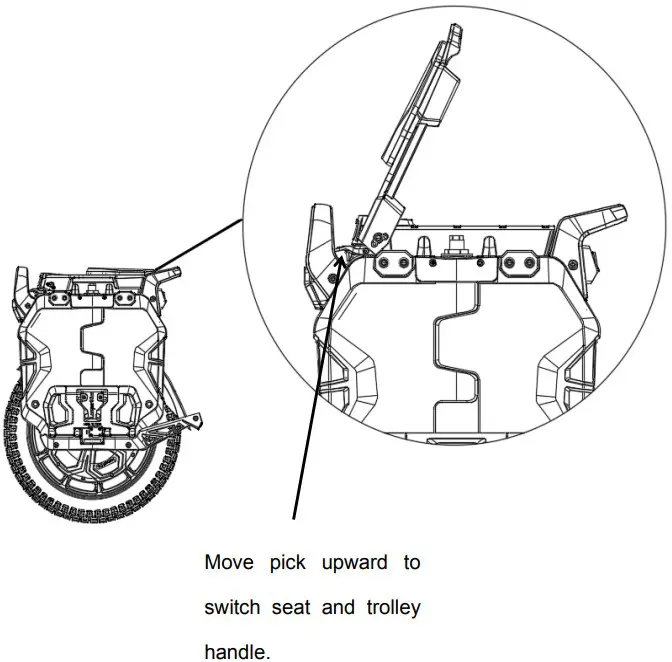

Trolley handle and seat

Function introduction:

• Seat and trolley handle switching.

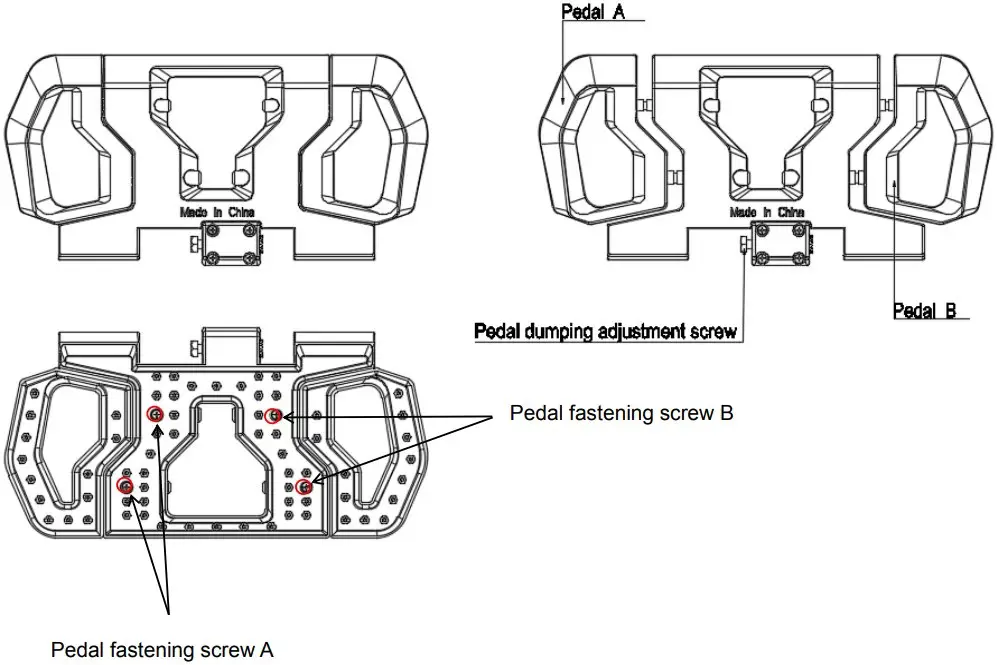

Pedals

Function introduction

• Loosing pedal fastening screw A to extend pedal outward;
• Loosing pedal fastening screw A to extend pedal outward;
• Moderate pedal opening / closing angle can be adjusted by right turning the pedal damping screw.

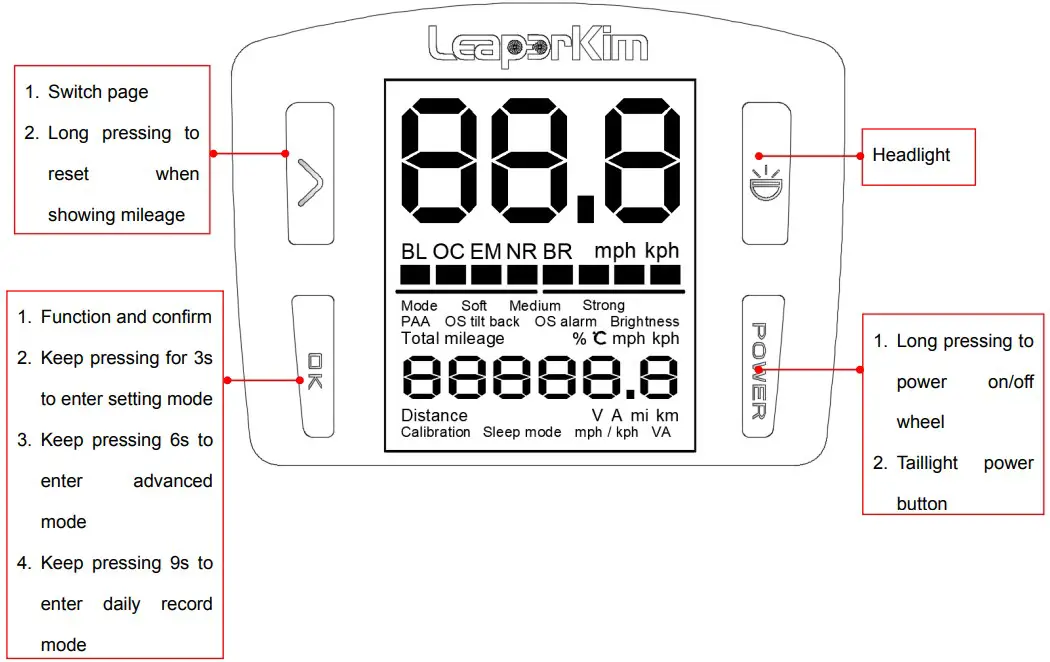

Display introduction

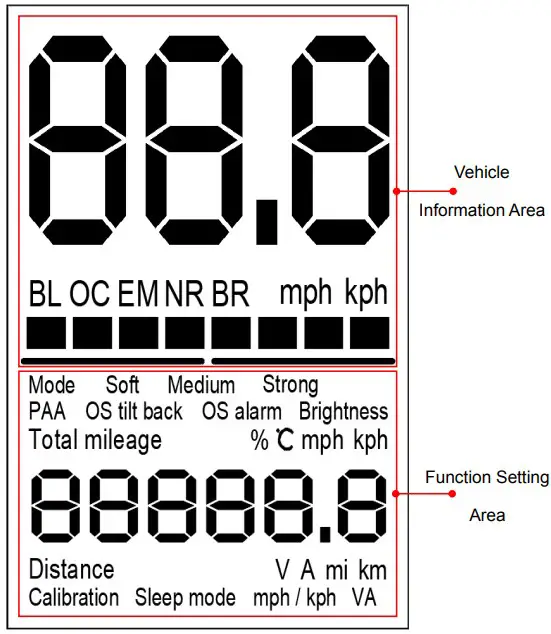

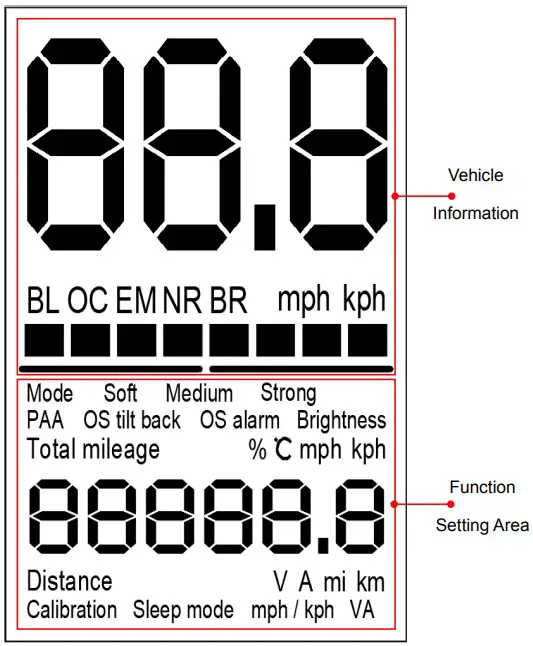

Display Function Overview

Vehicle Information Area

Function Setting Area

Usage Notice

• The following persons are prohibited from riding this product:
  1. Persons who are under the influence of drugs or alcohol and have limited mobility and reaction ability. Or people with hypertension, cardiovascular and cerebrovascular diseases or other high-risk diseases.
  2. Minors under 14 years old, pregnant women, mentally ill and the elderly over 60 years old.
• Do not use this product in the dark or in the places where the sight is blocked, or on the slippery, ponding, pothole and other roads.
• Do not ride it at high speed or accelerate or decelerate sharply when the battery capacity is low.
• Do not perform any dangerous actions (jumping, one foot riding, reversing, carrying people, over-speed riding, etc.
• Please wear helmet, knee protection, elbow protection, gloves and other protective equipment before riding this product.
• Where there are people or obstacles, please control the speed reasonably and prohibit speeding.
• This product is not allowed to be disassembled or repaired by un professional personnel. If the machine is disassembled by oneself, the product warranty service will no longer be enjoyed.
• If the vehicle makes alarms, please stop riding it immediately and sent to the professional maintenance point for maintenance in time.
• Please carefully read and understand all the product information and precautions listed in this manual and follow the use behavior suggested in this manual to avoid unnecessary loss and injury, otherwise you need to bear all the consequences arising therefrom.
• During the production or sales of this product, design changes and further improvement will be carried out continuously. In case of any discrepancy with this manual, please refer to the actual product.

Maintenance

• Use this product frequently, and check whether the screws are loose on time.
• Check the tire pressure on time. The suggested pressure is 2.5-3.0bar.
• Better to put the vehicle in the dry area.
• Charge the battery to full charge at least once every two months.
• Avoid recharging when the battery is completely exhausted.
• Avoid placing the battery in the environment which is above 50 ℃ or below – 20 ℃.
• It is prohibited to use chargers other than the standard charger for charging.
• It is forbidden to immerse this product in water and wash it with high pressure water gun.

Warranty

• The following conditions are not covered by the warranty and need to pay for maintenance.
• The validity period of three guarantees has expired.
• Damage caused by human factors.
• Damage caused by force majeure.
• All kinds of damage caused by failure to use, maintain and transform according to the requirements of the user manual.
• Failure or damage caused by forced use of this product beyond normal conditions.
• The product has been disassembled or maintained by personnel not authorized by our company.
• Malicious damage to warranty content and vehicle body information.
• Other faults or damages not caused by the design, technology, quality, manufacturing and other problems of the product itself.
• Natural wear and tear that does not affect the function.

Manufacturer：Guangzhou Coyote Intelligent Equipment Co., Ltd.
ADD：Part 1 of 3rd floor, No. 45-2, Northern Industrial Road, Xinlou village, Baiyun District, Guangzhou, China
Tel: +86 13751045466
Email: [email protected]
