Guangzhou Veteran Intelligent Technology 2022 Veteran Sherman Max Electric Unicycle
Instructions for Use
- Please read the manual carefully to understand the performance parameters of this product in detail, and observe the use behaviors indicated in this manual to avoid unnecessary losses and injuries, otherwise, you need to bear all the consequences arising therefrom.
- This product is strictly forbidden to ride on the motor vehicle lane. Be sure to comply with local laws and regulations. Do not use this product in areas prohibited by laws
and regulations. Do not use this product beyond the speed set by local laws and regulations. - The following persons are prohibited from riding this product. People who are under the influence of drugs or alcohol and have limited mobility and reaction ability. Or suffer from high blood pressure, cardiovascular and cerebrovascular diseases or other high-risk diseases.
- Minors under 14 and seniors over 60.
- Do not use this product in dark or obstructed sight, or on slippery, stagnant water, or pothole light.
- Do not ride at high speed or violently accelerate or decelerate when the battery power is low.
- Do not perform all dangerous actions like jumping. one-legged, backward, manned, speeding, etc.
- Before using this product, please wear a helmet, knee pads, elbow pads, gloves and light protectors.
- In places where there are people or obstacles, please reasonably control the speed and prohibit speeding.
- This product is forbidden to be disassembled or repaired by non-professionals.
- Disassembling the machine by yourself will no longer enjoy the product warranty service.
- Activation with charger for first use.
This product will be constantly improved and changed during the production or sales process. If there is any discrepancy with this manual, please refer to the actual product.

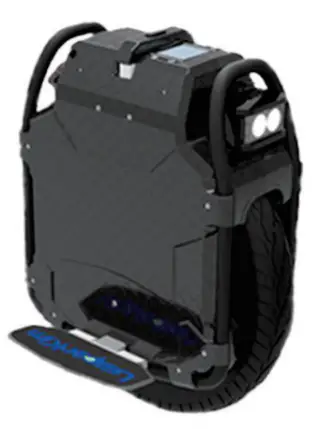

Product Description
Functional Diagram

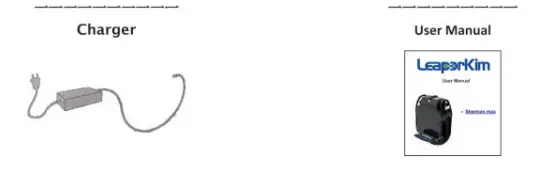

Standard Accessory

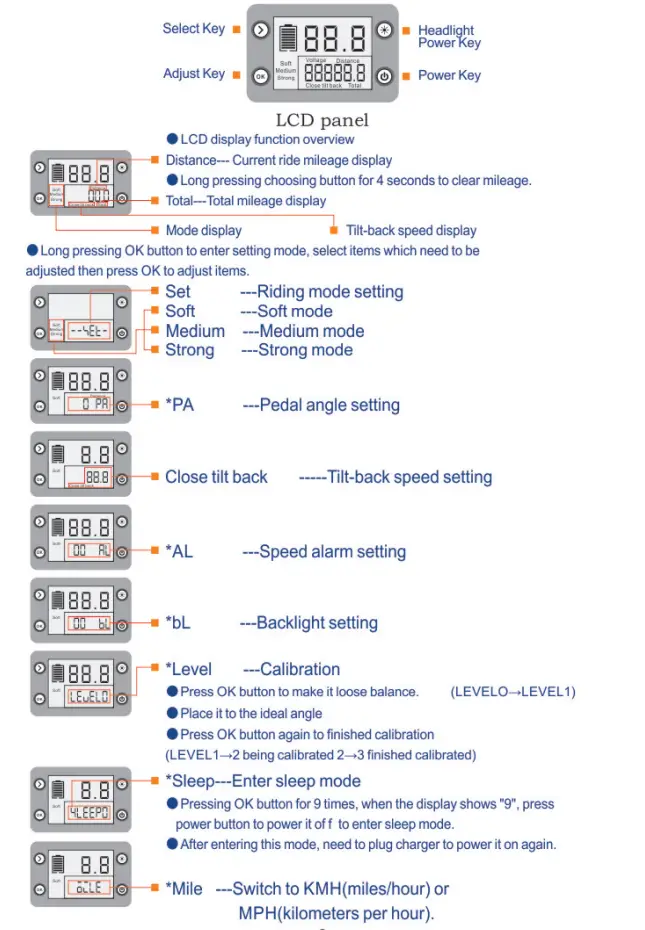

LCD Screen
Product Specification
| Product Performance | |
| Model name | Sherman max |
| Top free spin speed | 98km/h |
| Safe riding speed | 25km/h |
| Motor power | 2800W |
| Battery | Samsung 50E 100.8V 3600WH |
| Max gradit>ility | 30° |
| Operating temperature | -10-so·c |
| Max load | 120kg |
| Charger | 100.8V 5A |
| Charging time | 8.5h |
| Color | Black |
| Dimension and weight | |
| Dimension | 500mm x 195mm x 605mm |
| Net weight | 39kg |
| Pedal dimension | 250mmx130mm |
| Pedal altitude(from ground) | 170mm |
| Hardware | |
| Maint>oard | Customized connectors to fix wires firmly;12pcs Mosfets make it more durat>le. |
| Cooling fan | Dual cooling fans.set up at 45°C. |
| Tire size | 20inch off road tire. |
| Trolley handle | Central mounted t>uild in. |
| LCD panel | Display speed, t>attery voltage, mileage, mode switching, calit>ration, t>attery status etc. |
| Metal oars | Anti scratch of shells. |
| Charge port | Dual charge ports,support 1OA max. |
| Headlight | 1500Im modularization light. |
| Taillight | Turning, braking warning lights. |
| Software | |
| Incline protection | Stop rolling once wheel body inclining 45° |
| Speed limit | Can be set through LCD panel. |
| Low battery protection | Alarm at 78V, tilt back at 75.6V |
| Battery protection | Overcharged, over-discharged, Charging port out put short circuit protection |
| Mainboard over heat protection | ss·c. |
| Calibration | Set through LCD panel. |
| Package | |
| Gross weight | 44.5kg |
| Size | 720mm x 590mm x 360mm |
Maintenance
- Always use this product, pay attention to check whether the screws are loose on time.
- Check the tire pressure on time, the recommended pressure is 2.5-3.0pa.
- The vehicle should be parked in a dry area as much as possible.
- Try to avoid completely exhausting the battery before recharging.
- Avoid placing the battery in an environment that exceeds 50°C or -20°C.
- It is forbidden to use chargers other than the standard charger.
Warranty
| Item | Warranty content | Start time |
| Main parts | Mainboard, motor | 1 year |
| Battery and charger | Charger and battery | 6 months |
During the warranty period, the following conditions are not covered by the warranty and need to be repaired.
- Exceed warranty period.
- Man-made damage.
- Damage caused by force majeure.
- Failure to use, maintain, and adjust according to the requirements of the User Manual.
- Failure or damage caused by forced use of this product beyond normal use conditions.
- The product has been disassembled or maintained by non-authorized personnel of our company.
- Malicious damage to warranty content, car body information.
- Failure or damage caused by other non-product design, technology, quality. manufacturing and other problems.
- Natural wear without affecting function.
Warranty Card
Please keep the warranty card and use it as a credential during maintenance.
Warranty Record
| Date | |||
| Content | |||
| Replacement
spare parts | |||
| Maintenance
staff signature | |||
| User signature |
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modl fications to this device not explicitly approved by the manufacturer could void your authority to operate this equipment.
RF Exposure Information
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
