PORTABLE CAR JUMP STARTER
NEWELL CARMATE 12000mAh
SAFETY INSTRUCTIONS
Before using the product, please read the following instruction manual carefully and keep it for future reference. When transferring the product to a third party, it is advisable to include the instructions.
- Do not expose the device to water or other sources of moisture
- Do not throw, hit or shake the device – otherwise it may damage the parts inside and eventually damage the entire device
- Keep the Jump Starter away from fire and other sources of high temperature
- Place in a cool and dry place.
- For use by adults
- Do not use non-standard charger to charge the product.
- Beware of short circuit.
It may lead to products function failure - Please make sure that the power is above 709% when you use it to start your car.
- Please ensure that the end of the smart jump clamps is fully inserted into the product 12V car start port when you use it to start your car, otherwise the device could melt.
- Please use the jump clamps which comes with the device only. When the battery clip or wire is damaged, please stop using it to avoid personal injury such as fire and electric shock
- Before starting, make sure there is no rust and foreign matter a the interface, and tightly connect the device with the jump clamps. Non-tight connection will affect the starting performance of the device.
- Do not use the device to continuously start the car more than 3 times.It may cause the product to overheat and damage the product. Each starting should be separated by two minutes
- After successfully starting, please remove the product from the car battery within 30s, otherwise it may cause damage.

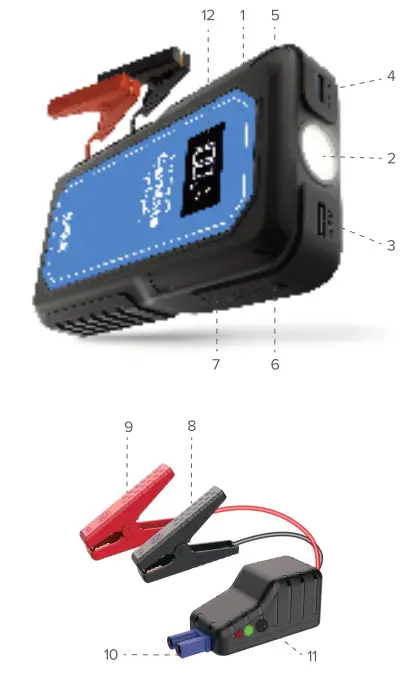

PRODUCT DESCRIPTION
| FUNCTION | OPERATION | |
| 1 | Jump Starting Port | Insert the plug Into the Jump Starting port |
| 2 | LED Flashlight | Flashlight modes: Solid, SOS, Alert |
| 3 | USB Output 1 | 5V/2.4A |
| 4 | USB Output 2 | 5V/3A 9V/2A 12V/1.5A |
| 5 | Type C Input | 5V/3A |
| 6 | Power Button | Power ON/OFF |
| 7 | Power Switch | Press the button to charge your devices. Long press the button to turn ON/OFF the flashlight |
| 8 | Black Clamp | Connect the black clamp to the negative terminal of the car battery |
| 9 | Red Clamp | Connect the red clamp to the positive terminal of the car battery |
| 10 | Plug | Insert the plug into the Jump Starting port |
| 11 | Force Start Button | Force start function |
| 12 | LCD Screen | Show the percent power. Show charge and discharge status 7 |
USAGE
How to Charging the Jump Starter;
- Connect the Jump Starter and the power source via the USB-C cable
- Short press the ON/OFF button to turn on the product. While charging the Jump Starter, the LED Display Screen will show the percent power increased. Once it is fully charged, the LCD Display Screen will show 100%
- Unplug the cable when no charge is required.
NOTE:
- When using product for the first time, please make sure that the Jump Starter is fully charged
- Wall adapter is not included in the package.
- Before using the Jump Starter, please fully charge the the jump starter to 100% then fully used until the battery is 0% and the power is turned off.
Then recharge to 100% (don’t charge or output the power bank In the process, regardless of the number of times of use) After repeating the above steps 5-8 times, the digital display will be more accurate - In cold winter, we suggest to store the Jump Starter indoor instead of the car.
How To Jump Start 12v Vehicles
NOTE: This product is for 12V car only Check to make sure that battery level is above 70% before you use it to Jump Start your car.

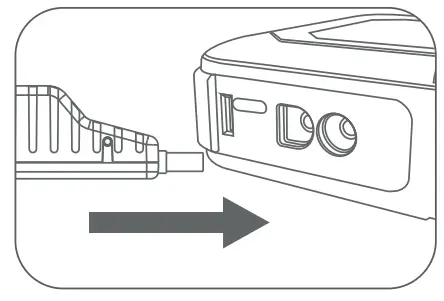

Step 1: Insert the plug of the smart battery clamp completely into the Jump Starter. f the green and red light indicators on the battery clamp are flashing alternately you are safe to move on to to the next step

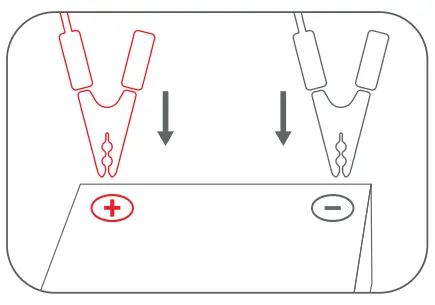

Step 2: Connect the red clamp to the positive terminal(+) of the car battery and connect the black clamp to the negative terminal~) of the car battery.
If the green light on the clamp is on with click sound, you are safe to move on to the next step.

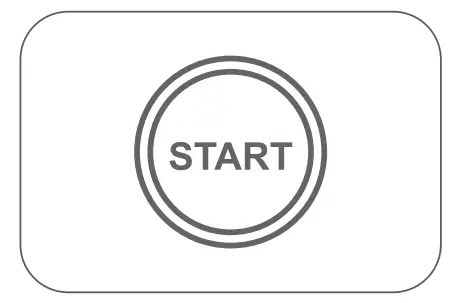

Step 3: Start your car When the indicator light of the smart clamp is green, you need to start the vehicle within 3Os.
If over 30s, the clamp will stop working, you need to connect again from Step 1.
If you failed to start your car, you need to disconnect the battery clamp from the vehicle and the Jump Starter Wait for at least 1mins, then try again.
Force Start Function
If you are sure you followed every step and the red light is always on, please try the force start function.
Force Start Function
If you are sure you followed every step and the red light is always on, please try the force start function.
a. Insert the plug of the smart battery clamp completely Into the Jump Starter.
b. Connect the red clamp to the positive terminal(+) of the car battery and connect the black clamp to the negative terminal() of the car battery. Wrong connection will cause short-circuited

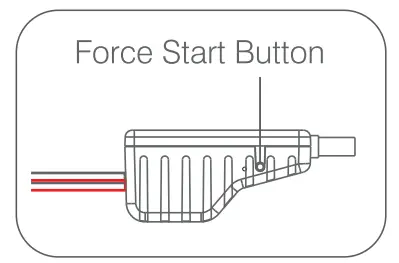

c. Hold presing press Force Button tor 3 seconds, then the green light will be on.
d. Get back to your car in 30s then start the engine

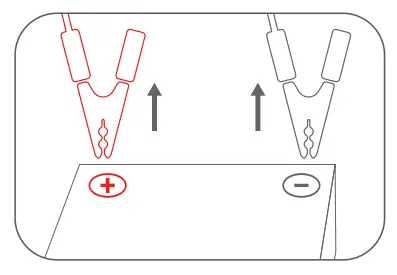

Step 4: Once your car is started, please remove the battery clamp from the car-battery and the Jump Starter within 30 seconds
TROUBLE SHOOTING
| INDICATOR | SITUATION |
| Red and green lights flash alternately | The clamp only connected to the jump starter |
| Green light is always on, and the buzzer beeps once | Correct Connection and ready to work |
| Red Light is ON | 1. If the connection is totaly correct, the voltage of the car battery is too low, Continuous short buzzer – please try force start function 2 The voltage of the starter is too low- try to replace the start up power supply or charge it in time 3. Reverse connection -the buzzer keeps 0n, connect the to damp the RED jumper cable to the POSITIVE (+) post And BLACK Jumper cable to NEGATIVE ( post or car intenior 4 The damp is short-circuited- the buzzer keeps check whether two damps together connect or connect both cable damps to the same piece of metal 5. Overtime – After the green light is on, you need to go back to the car in 30s, f over 30s, the clamp will stop output. You need to disconnect al connection and repeat the steps again |
SPECIFICATION
| Battery Capacity | 12000 mAh |
| Starting Current value | 1000A |
| Peak current value | 2000A |
| Type C Input & Output | 5V/3A |
| Us81 Output | 5V/2.4A |
| US82 Output (Ouick Charge) | 5V/34 9V/2A 12V/1.5A |
| Temperature Rang | -20C-60C |
| Dimensions (w-H | 16388.528mm |
| Weight | 445g |
PACKAGE CONTENTS
- 1Car jump starter
- 1Smart Battery Clamp
- 1DC- Cigarette Lighter Adapter
- 1us8-C Charging Cable
- 1user Manual
- TEVA Bag
WASTE MANAGEMENT
The crossed-out trashcan symbol means that waste electrical and electronic equipment, batteries and packagings must not be placed with other household waste, They must be handed over to a separate waste collection system.
WARRANTY
Newell products are covered by a40-month manufacturer’s warranty.
Made in China, In China
