kogan CTSMARTIFLA Smart Cordless Micro Air Compressor Inflator User Manual

SAFETY & WARNINGS

Read these instructions carefully before using this product for the first time. Retain this user guide for future reference.

• This product is suitable for the inflation of small cars tires, motorcycle tire, bicycle tire, balls, swimming rings and other inflatables
• The product and hose can get hot during extended usage.
• To avoid over-inflation and potential injuries, always confirm the required air pressure of the item before inflating.
• The product has a built-in non-removable lithium battery. Do not place this product into fire or discard it with household waste. The battery may cause spontaneous combustion or explosion due to overheating, impact and water ingress.
• Avoid storing this product in high temperature environments.
• Do not bend or step on the hose during inflation.
• Do not leave the product unattended during operation. Always pay attention to avoid over-inflating.
• Do not expose the product to moisture, heavy falls, water immersion and mud or sand ingress.
• This product contains a DC motor which may generate electric sparks during operation. Do not place it near flammable liquids or gases during operation.
• Ensure the product is stored between -10°C ~ 45°C.
• Excessive heat or cold will shorten the life of the product and damage the battery.
• It is recommended to charge the battery it at least once every 3 months.
• This product is not a toy. Do not allow children to play with it.
• Ensure children and pets are supervised and kept at a safe distance during operation.
• Before setting the air pressure value, ensure that you have selected the correct unit of measurement, otherwise it may lead to over-inflation and potential injury.

OVERVIEW

1. Valve
2. Hose
3. Touch screen
4. Hose storage port
5. Light
6. Charging port
7. Battery indicator
8. Mode button
9. Light button
10. Increase button
11. Power button
12. Decrease button

GETTING STARTED

Turning On
Remove the air hose from the hose storage port. The inflator will automatically turn on. If there is no input for 180 seconds the inflator will automatically turn itself off to converse power. Press and hold the power button to turn the inflator back on.

Turning Off
When you have finished using the inflator, replace the hose back into the hose storage jack. The hose will ‘click’ back into position and after 10 seconds will turn off.
Alternatively pressing and holding the power button will turn off the inflator.

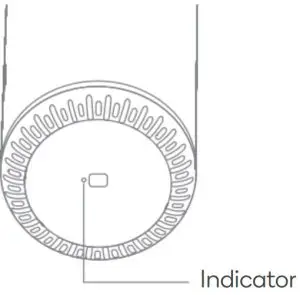

Battery Indicator
The battery indicator light is always on and uses different colours to indicate the current power level:

• Solid blue light: battery power ≥30%
• Solid red light: battery power 20% – 30%
• Flashing red light: battery power <20% needs to be charged

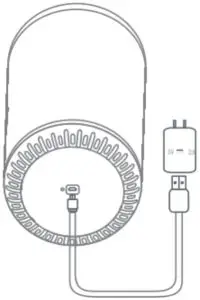

Charging

• The battery will need to be fully charged before first use.
• Plug the supplied charging cable into a 5V 2A adaptor (mobile phone charger).
• Plug the charging cable into the charging port on the bottom of the inflator
• The battery indicator uses different colours to indicate the charging status:
  • Blue light flashing: battery charging
  • Green light: battery fully charged


Air Valves and Needle

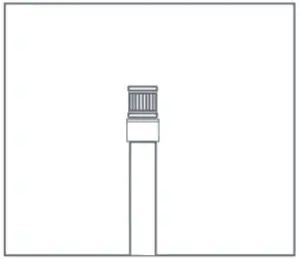

• Schrader valve

  • Standard valve, suitable for mountain bikes, electric bikes, motorcycles and small cars tires.

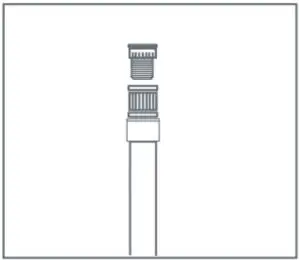

• Presta valve
  • Suitable for road bikes and some mountain bikes.
  • Connect the presta valve to the schrader valve before inflating.

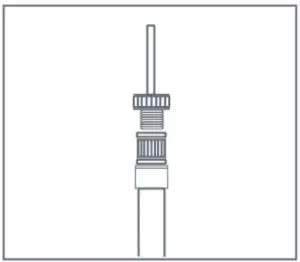

• Air needle
  • Suitable for basketballs, footballs and other kinds of balls.
  • Connect the air needle to the schrader valve before inflating.

• Checking Air Pressure
  • With the inflator turned on, when you connect the valve to the inflatable the current air pressure will be displayed.
• Air Pressure Guide
  In order to maintain user safety and avoid over or under inflating items, always check the recommended air pressure of the product.
  Below is a guide of recommended air pressure values for common products.

Preset Air Pressure Modes

The portable inflator features five different preset modes for inflating common products. Press the mode button to switch between the different presets. Press and hold the mode button to switch the unit of measure between “bar” and “psi”.

• Free Mode
  Default: 35psi.
  Adjustable range: 3-150psi

• Bicycle
  Default: 45psi
  Adjustable range: 30-65psi

• Motorcycle
  Default: 34psi
  Adjustable range: 26-43psi

• Car
  Default: 36psi
  Adjustable range: 26-50psi

• Ball
  Default: 8psi
  Adjustable range: 4-16psi


OPERATION

Fine-tuning Presets

• After selecting the desired preset mode, press “+” or “-” to slowly adjust the air pressure value.
• Press and hold “+” or “-” buttons to quickly adjust the air pressure value.
• When adjusting the preset value the number flashing indicates the preset target and the solid number displays the current air pressure of the product.

Multifunction Light
The portable inflator features a multifunction light. Press the light button to switch between a bright white light, red warning light and a red SOS light.

Inflating
Select the correct preset mode and connect the inflator to the product using the appropriate valve or needle. Press the power button to begin inflating.

• The screen will display the current air pressure value.
• During operation the inflator will generate 75-80 dB of noise.
  Note: It is completely normal for the hose and the body of the inflator to become hot during operation. If the inflator has been used for an extended period of time, avoid contact and allow it to cool before touching it with your hands.

Stopping the Inflator
When the air pressure reaches the preset air pressure value, the pump will automatically stop. During the inflation process, you can also stop at any time by pressing the power button.
Note: When inflating item such as balloon, toy balls, swimming rings and other products with a recommended air pressure lower than range of the preset, the inflator will not automatically turn off. Always inflate these items with caution.

SPECIFICATIONS

Pressure range 0.2~10.3bar/3~150psi
Dimension (without hose) 70x140mm
Working temperature
Charging 0°C~45°C
Operation -10°C~45°C
Storage temperature -10°C~45°C
Battery capacity 2600mAh
Working noise less than 75dB when 1m away
Input current 5V==2A
Charging interface USB-C
Chargingtime Less than 4 hours
Air pressure gauge accuracy 35±1.5psi
Common unit conversion: 1bar = 14.5psi, 1bar = 100kPa

TROUBLESHOOTING

Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com.
