User Manual for Mearth S PRO
E- Scooter 2022-2025
S Pro E Scooter
About the Manual
- Congratulations on your purchase of the E-scooter.
- For your driving Safety, please read this user manual carefully before using it and ensure to be able to ride the scooter under the correct guidance. Learning all the safety warnings and tips listed in this manual will be helpful for you to better control the scooter.
- Please note “warnings” and “tips” in this manual particularly.
Warnings: Improper operation may result in personal injury.
Tips: Helpful advice & clues for the usage of an E-scooter. - Should you have any inquiries, please contact the supplier immediately.
Tips:
A. Children below 14 years old shall be accompanied by an adult.
B. people without experience, poor ability to accept & physical coordination, should learn to ride with accompanies. Please read this manual carefully before you ride the electric scooter, and make sure that you can ride with the correct guide.
C. No parents are Accompanied, children are prohibited from cleaning and maintenance of the product.
WARNING!
IMPROPER USE OF THE scooter AND/OR FAILURE TO READ THIS USER MANUAL MAY LEAD TO SERIOUS BODILY INJURY . SELLER WILL TAKE NO RESPONSIBILITY FOR ANY INJURIES CAUSED BY IMPROPER USE WITHOUT FOLLOWING THE MANUAL.
Safety Notes
1.1 About safety
There’s a risk for any vehicle, including an e-scooter. For your safety, please learn to ride safely and obey the local rules and enjoy riding.
- Please check If the lire is damaged or if the spare parts are tight before riding. Please contact the local distributor for any unexpected situation.
- Please do not do anything that may harm other people or their properties with an e-scooter.
- Any conversion of the e-scooter is prohibited as it will change its performance or damage the structure, which may bring serious injury.
- Please do not put the electric scooter in the water, which will nat only damage the electric scooter, bul also cause a safety accident.
1.2 Safety Precautions
Please note that you may lose balance, crash or fall down when you ride an e-scooter. To avoid injury, you should be familiar with this manual and keep the e-scooter in good condition.
Safety measurements should be taken before riding, eg: wear sportswear, helmet, kneecap, elbow pads, and $0 on.
DO NOT ride when it rains.
DO NOT ride with loading. DO NOT ride with two people or more. only for one rider.
Max Loading: 100 kg
People between 14 and 60 years old may use the product, but pregnancy is not allowed to ride the e-scooter.
DO NOT ride after drinking or taking medicine.
DO NOT call or listen to music when you ride the e-scooter.
DO NOT park in the building foyer, evacuation corridor or safety exit.

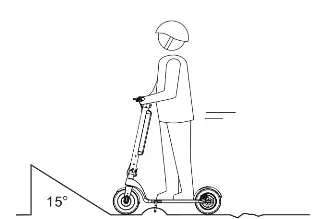

Be careful of the road with roadblocks, sandstone, ponding, mud, wet, ice and snow, slope (angle >15°) stairs. dark area when you are riding.
DO NOT ride on the Vehicle road.
Production Introduction
2.1 Overall View

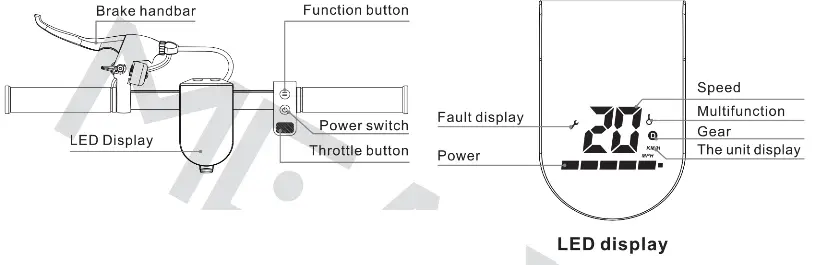

Instructions of Buttons
- Power Switch: Long press the power button to turn on/off.
- Function key:
A: Short press function key: Cycle to switch gears.
Beginner mode: Gear indicator D is not displayed.
Normal mode: Gear indicator D shows white.
Sports mode: Gear indicator D shows red.
B: Shortly press the function key twice to turn on/off the headlights, and the taillights are always on. - Accelerator: Press the acceleration button to start and accelerate.
- Brake: Hold the brake handle to the brake. Lightly step on the rear fender to assist the brakes.
- Cruise mode: Keep the current speed for 6 seconds to enter the cruise mode;
Exit the cruise mode when pressing the accelerator again or a brake.

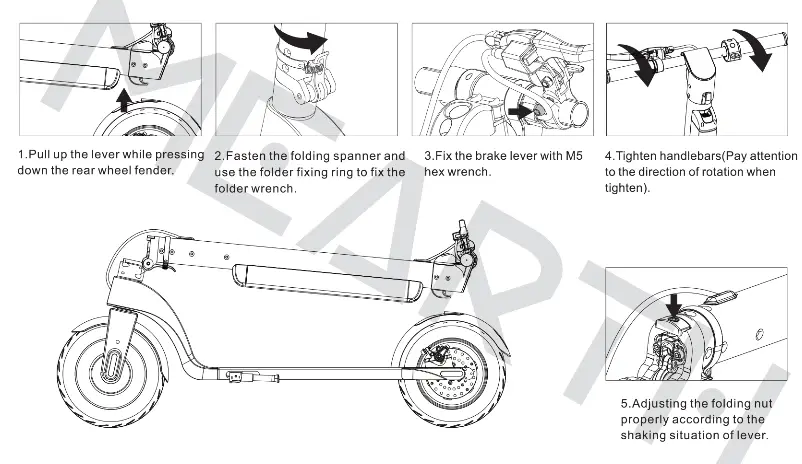

2.2 Pre-assembly instructions

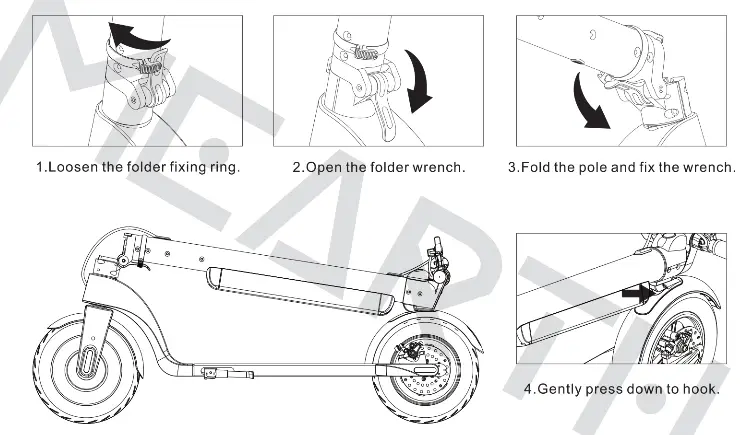

2.3 Folding chart

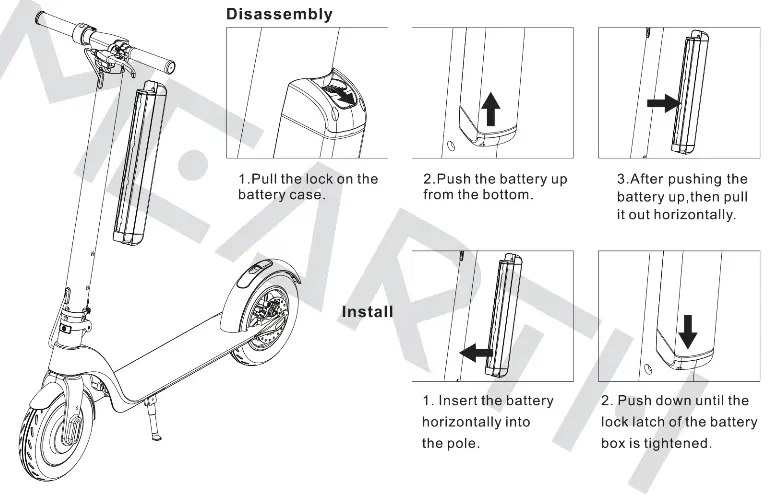

2.4 How to uninstall/install the battery

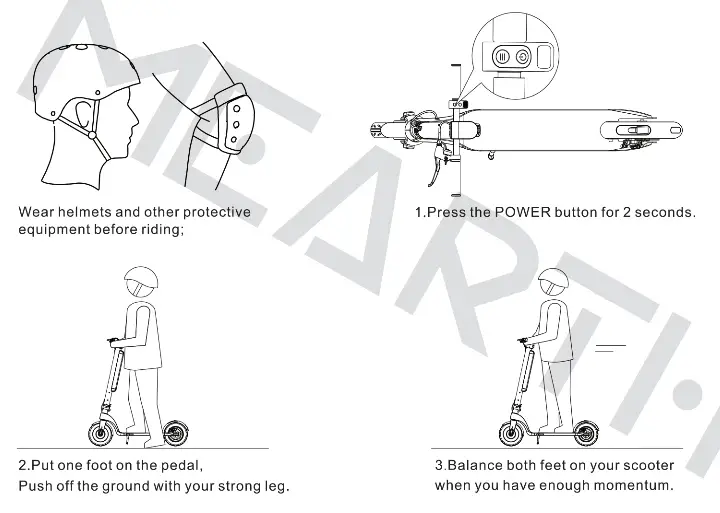

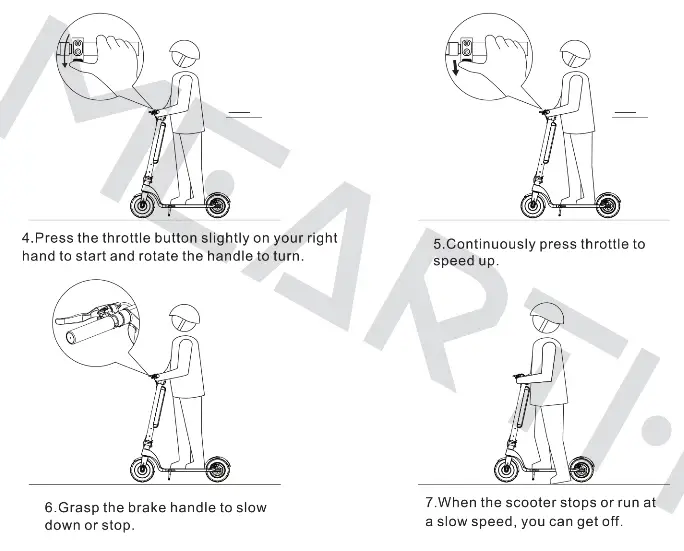

How to ride the scooter
 |  |
Battery Instruction
The instruction shows how to charge and maintain the battery, some safety notices and the specification. Please use the battery properly according to this instruction to prolong the battery life and its performance.
| Name Type | Parameter Li-ion battery | Name Working Temperature | Parameter Ot-35°C | Name Parameter Store Time (-10°C-40°C) 3 months (full charge) |
| Charging Time Voltage | 5-7 hours 36V | Charging Temperature Max Charging Voltage | 0oc_35.c 42V | Initial Volume 7.8A1V10Ah Max Charging Current 2A |
4.2 Battery Safety
Do not continue to use the battery when the following conditions occur:
- The battery of the electric scooter should be used only with local law. Only for professionals to disassemble and maintain the battery.
- Odor or excessive heat; leak any substance; do not touch anything leaking from the battery.
- Do not let children and animals touch the battery. Must unplug the charger before installing the battery or riding. In the case of charging, it is very dangerous to do anything related to electric vehicles.
- If you want the electric scooter to run most efficiently, the battery must be charged and used within the temperature range indicated in the battery specifications.
- Lithium batteries are considered dangerous and require local law to allow transportation.
- The battery contains dangerous substances. Please do not open the battery . Do not insert anything into the battery.
- It is forbidden to charge a lithium battery that has been over-discharged. A battery that has been over-discharged has a safety hazard and can only be scrapped.
Tip: When the internal temperature of the battery exceeds 45 °C, the battery is protected.Do not charge the battery at high temperature (45 ° C) or Charge the battery in a high temperature (40 ° C) environment.Only use the original charging equipment to charge the electric scooter.

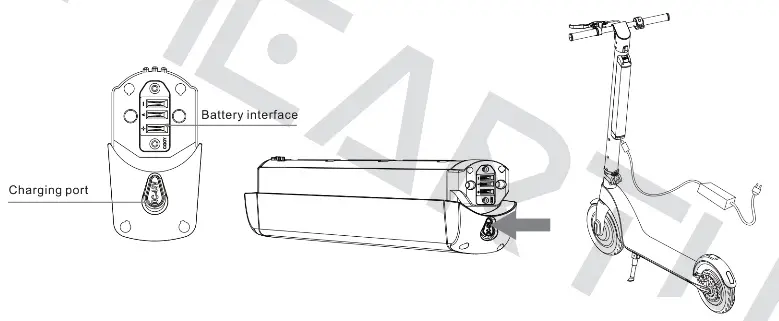

4.3 Charging step
- Open the charging port cover, Make sure the charging port is clean and dry.
- Connect the charger with the battery and the other end with power(100V-240V;50/60Hz), make sure the charging indicator is on.
- When the charger indicator is red, it will charge normally. Otherwise, please check if the plug is connected properly.
- When the charger indicator is green, charging is complete.
Charging method:
Tips: Connect the charger to the AC power first, then connect it to the battery when the green indicator light is normally on.
After charging, cover the dustproof rubber to prevent something from entering the charging port and causing battery failure.
Specification
| Item | 8.5 inch | 10 inch |
| Product |  |  |
| Scooter Specification | ||
| Unfolded size | 1073*401*1176mm | 1083*401*1186mm |
| Folded size | 1073*401*450mm | 1083*401*460mm |
| Height from pedal to ground | 110mm | 115mm |
| Net weight | 14.5kg | 15kg |
| Basic Information | ||
| Capacity | 36V/7.8Ah or 10Ah | 36V/7.8Ah or 10Ah |
| Moto power | 36V/350W | 36V/350W |
| Mileage per charge | 30-45km | 30-45km |
| Max speed Max loading | 20km/h 100kg | 20km/h 100kg |
| Climbing angle | 15° | 15° |
| Charger Specification | ||
| Input voltage | 100-240Vac | 100-240Vac |
| Frequency | 50-60Hz | 50-60Hz |
| Output voltage | 42V | 42V |
| Output current | 2A | 2A |
| Store temperature | -10°C-35°C | -10°C-35°C |
Maintenance
Maintenance considerations:
- Make sure the electric scooter charger and charging line are disconnected and ensure that the electric scooter is off.
- Wipe the shell with a soft cloth to clean the electric scooter. Please don’t put more lubricating oil on the bearing when you do the maintenance for it.
Warning
- It is forbidden to clean electric scooters by using water cannons or soaking in liquid. This will cause permanent damage of the electronic devices in the host.
Storage
- Please charge your electric scooter before storage, for preventing the battery from discharging too long time. Please ensure charge at least once every three months.
- If the storage environment temperature is lower than 0 °C, please don’t charge the electric scooter. Please put it in an inside environment temperature (above 10 °C) and then charge, storage temperature is -10 °C to 35°C.
- Please keep the electric scooter in a suitable place indoors, dry, and appropriate temperature. You can mask the electric scooter to prevent dust.
Warning
- In order to protect the user’s safety, the user can not take apart the electric scooter, otherwise, the user will give up the maintenance warranty rights of the product automatically.
- Rider must do regular maintenance and servicing for the electric scooter at least every three months. Every time before riding, rider must make sure all the screws are tight and secured, no parts are loose, and must make sure the scooter is functioning as it should be before you ride.
Troubleshooting
Please contact the sales office or the dealer with no hesitation for repair when the electric scooter fails to ride normally.
| Description of adverse phenomena | Solution |
| unable starting up | Check to see if the battery Is powered |
| can not charge / | 1. Check whether the plugboard has electricity; 2. Check the charger whether connect AC plug (the light whether is on); 3. Check the plug of the charger and the charging port of the whole scooter have been inserted correctly. |
| No horn, no blue tooth signal | Check the Bluetooth switch whether turn on. |
Packing List
Electric scooter packing list:
E-scooter: 1PC
Charger: 1PC
Manual: 1PC
Screws & Wrench: 1 set Please contact us with no hesitation if there is any breakage or missing when you open the package.
We will replace it for you as soon as possible. Have a nice day!
