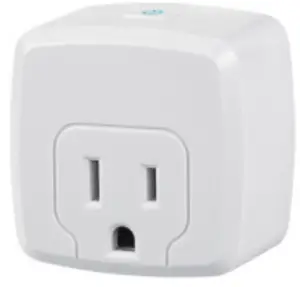

Smart Plug
Is trouble reading this guide?
Use this link for PDF version www.bn-link.com
Need Help?
Email: [email protected]
Web: www.bn-link.com/ticket
NOTE: Hold the ON/OFF button for 5
seconds while it is plugged in to restore the factory setting if you want to erase the plug’s current settings.
Indicator Light Status
Blue light blinks every 0.5 second-Easy
Mode connection
Blue light blinks every 2 seconds- AP
Mode connection
Red light- Power is ON
Blue light- Power is OFF
Parameter
125V 60Hz
154/1875W Resistive
10A/1250W Tungsten
1/2 HP
Working Temp: -10 -60C
Wi-Fi Frequency: 2.4 GHz
Install the “Smart Life” App
1. Search for Smart Life App on App Store/Google Play Store, or just scan the OR code below to download. For iPhone, you can use a built-in camera to scan the OR code. For Android, you may need a barcode scanner to do that.
Please confirm the App icon before downloading.) PS: You can also add this smart plug to mart life app directly if you already have it on your phone, it is compatible and
works the same way.
2. Register an account and memorize the password, enter your email address or your phone number, then obtain a verification code to complete the registry.
https://smartapp.tuya.com/smartlife
Connect with Your Cellphone Requirements: 2.4GHz Wi-Fi network
Please note 1. If you only have a 5GHz Wi-Fi router, you will not be able to complete the connection.

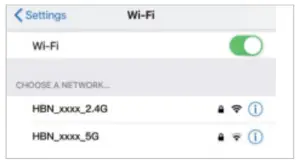

2. If you are using a dual Wi-Fi router and it broadcast 2 Wi-Fi signals, make sure that your phone is connected with the 2.4GHz Wi-Fi signal, it should be the Wi-Fi signal that is next to “_5G”.

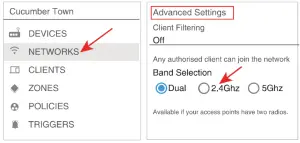

3. If you are using a dual-band Wi-Fi router but it broadcasts only 1 Wi-Fi signal, you will have to manage your Wi-Fi router and change the settings to have 2.4GHz Wi-Fi.
A: For Easy Mode Connection- Blue indicator Light Blink Rapidly ( Twice a second).
—> Confirm the smart plug is plugged into a live outlet
—> Open Smart Life app

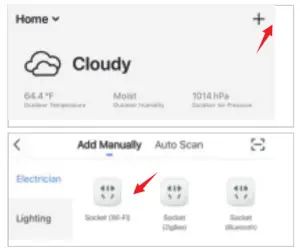

—> Choose the “+” symbol,
—> “Socket(wifi)”

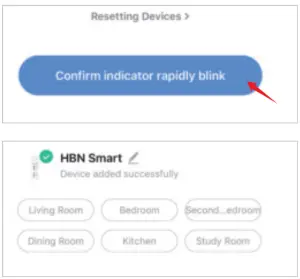

—> Confirm the light status on your plug and follow the App guide. (If you don’t see blue light quickly blinking, press the On/Off button to reset.)
—> Set a unique name for this smart plug, choose the room location.
B: AP Mode(indicator light blinks once every 2 seconds ) If the Easy mode connection failed, please remove and install the smart plug into your power outlet again. When the indicator is blinking quickly, it is in Easy mode. Hold the power button for about 7 seconds to enter into AP mode. Once you see the indicator light slowly blinking(every 2 seconds), you can start to try the AP mode connection.

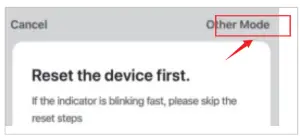

—> First go back to the Add Device “+” interface. “Socket (Wifi). Then choose the “Other Mode’ in the top right comer and choose AP Mode.
–>Make sure the indicator light is flashing slowly and confirm it in App;
–Choose your 2.4G Wi-Fi and enter the password and confirm it in App;

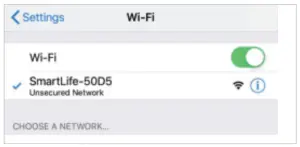

–>Tap “Connect now” and choose a Wi-Fi hotspot named “SmartLife-oo”, then go back to the Smart Life application;
–>Wait till successful configuration and then tap “Completed”.

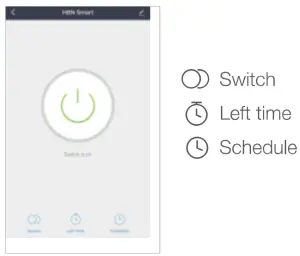

Getting to Know Smart Life App

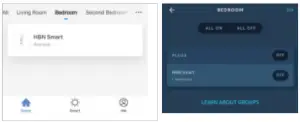

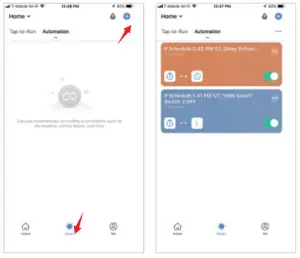

Note: edit the default names in this interface, for better management. »Create Automations/Groups
you can create certain scenes and groups on Smart Life App, it allows you to control different smart devices in different rooms at the same time.
Device Sharing
If you want to give others permission to control your smart plug, you can authorize that by activating the device sharing function Go to the Smart Life app
–>Choose the device you want to share
–>Choose Edit Button —
>Choose shared devices
–>Add sharing
–>Enter his/her Smart Life account
–>Search and complete.
How To Connect with Amazon Alexa
Requirements:
1. Amazon Alexa Device and Alexa App
2. The Smart Plug connected with Smart Life App
3. Smart Life App user ID and password.

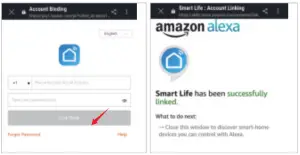

Add Smart Life as a “Skill” for Alexa
Open the Alexa app and choose Skills & Games
–> Search for Smart Life
–> ENABLE TO USE

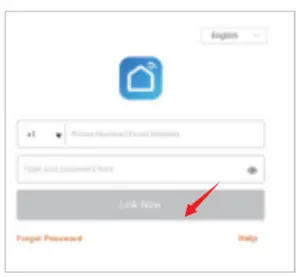

–> Enter the Smart Life account
->Authorize to use
–>Choose Smart Life. And then, the devices you added on will sync to Alexa App. You can also ask Alexa to discover new devices for you at this moment.
How to ask Alexa to turn on/off Smart Plug First, you will need to make sure the names for the plug are the same on the Alexa app and on the Smart Life app. If they are not the same, Alexa will not be able to identify the plug.
Smart Life App Alexa App
Things you can do with Alexa Voice Control the smart plug emote Control the smart plug via Alexa App. Add the smart plug to certain groups on Alexa App. You should make sure all the smart devices’ names at your home are nonrepetitive and recognizable for Alexa. For other questions about Alexaplease find out with the Amazon Alexa support page, or contact us for help directly by email. Tips for using Alexa Voice Control Please make sure the device name you set for the smart plug is unique and recognizable for the Alexa voice assistant. You should make sure all the smart devices names at your home are non repetitive and recognizable for Alexa.
The Voice assistant system needs the exact command to do the work.How To Connect with Google Home?

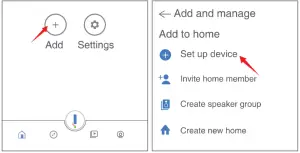

After you’ve connected the smart plugs with the Smart Life app successfully, you can start to link them to the Google Home app: Open the Google Home app and find “Set up device”

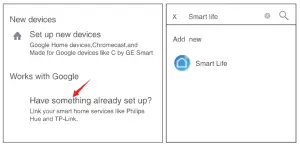

–>Click “Works with Google”
–>Search Smart Life
–>Enter your Smart Life account
–>Authorize to use.

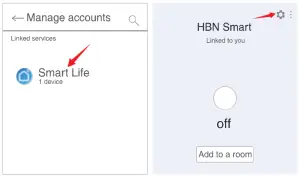

After that, you will see the smart plug at the home page of Google Home as Linked to you”, but you still haven’t set the device name and assigned a home or a room for it.

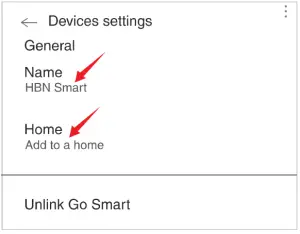

Now click the device that “Linked to you” or open “Works with Google” again to manage your linked devices, follow the steps below and set up the device names, rooms and one for the smart plug, you won’t be able to voice control it before you complete that.
Trouble Shooting
Q: Why did my phone connection fail?
A: * You should try both Easy Mode and AP Mode, read page 5-page 11, make sure to follow the guide, and try again.
* Confirm your home Wi-Fi is 2.4GHz and that you’ve entered the correct password during the connection.
* Remove&lnstall the smart plug to start again.
Contact the customer support team for assistance if you still have problems with the connection after following the steps above.
Q: Why can’t I voice to control the plug with my Alexa/Google
A: * Make sure the smart plug is connected successfully on the Smart Life app. Ensure that they are working well by testing to see if you can turn the plug on and off through the app.
* Make sure the same account is linked on the Smart Life as a skill on Alexa/ Google App.
* Make sure your Alexa/Google device is working fine.
* Check the device names that you set for this smart plug, it should be non repetitive and recognizable for the voice assistant, Also, please make sure your native language is available or Alexa. If you still having trouble controlling our smart plug through voice control after following all instructions, do not hesitate to contact us for help.
Q: Do I need to set up the device again if I changed my router?
A: Yes, you must set up the smart plug again if there are any changes to the current wifi status. (i.e changing the name of the wifi, changing the router/ modem). There is no need to set the device up again if you are just changing the placement of the router in the same house.
Q: Why does it turns on/off or come offline surprisingly?
A: Make sure your connection to the wifi is not interrupted. Check to see if there were any timers/schedules set for the plug. If everything looks fine, reset the plug and install it gains on the app.
Email us at [email protected] if the problem still persists.
Safety Information
This device is for indoor use only. Please keep the device dry and away from hot, humid, and/or other extreme environments. Please ensure that the appliance used with our plug is in compliance with our product’s rating. Do not attempt to disassemble the device. Be aware of the safety risks and product damage done to the plug. This device meets the UL94 V-0 flammability standard.
Warranty
30 days money-back guarantee: If you’re not satisfied with this purchase, you can choose to refund this order within 30 days. 15 months warranty: The device was used in roper
technical working condition.|
* Failures and defects not from human errors
Risk of Damage: Not suitable for appliances that exceed 15A, be careful. Not covered if the device was found to be disassembled from use.Contact Us
Friendly reminder: Using a different app from Smart Life may lead to differences in the interface, but the functionality of the plug should still be the same.
For any questions or concerns about our products, please contact us at [email protected]
CENTURY PRODUCTS INC.
Customer Service Assistance:
1.909.592.1881
Email: [email protected]
Web: www.bn-link.com
Hours: 9 AM – 5 PM PST, Mon – Fri
Designed in California, Made in China
