MITSUBISHI ELECTRIC PAC-SG38KF-E Oil Mist Filter

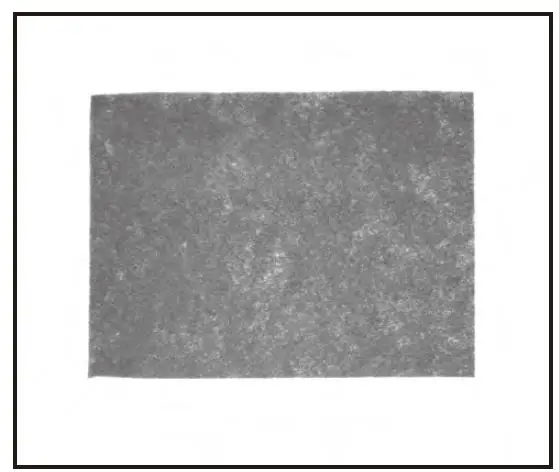

Oil Mist Filter Element

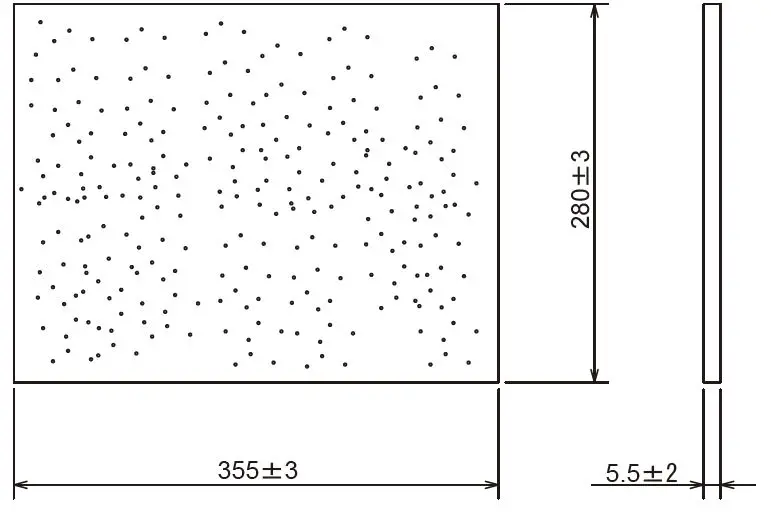

Dimensions
Descriptions
Filter Element (12 Pieces) for ceiling suspended models for professional kitchen use.
Applicable Models
- PCA-M71HA
Specifications
| Material | Modacrylic fiber / Polyester |
| Color | Black |
| Temperature | 60 or less |
| Reproduction | Disposable (Reproduction not possible) |
| Packing | 12 elements per bag |
Note:
Only the filter element must be replaced
(the filter frame provided on the main body must be used)

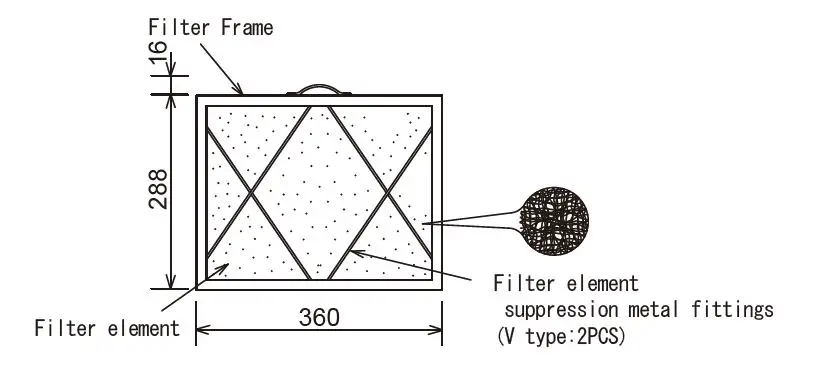

State of installation to filter frame
How to Use / How to Install
Cleaning the oil filter
- Removing the oil filter remove the filter by sliding it in the direction of an arrow

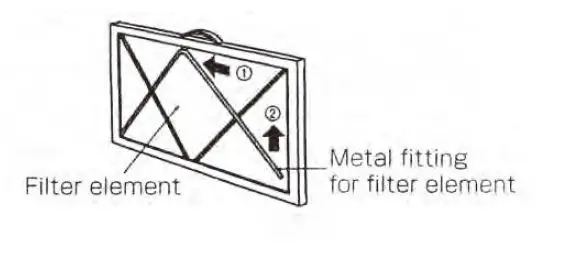

- Replacing the filter element Remove the oil filter by sliding it in the direction of an arrow. Remove the two metal fittings for the filter the element according to the following procedure, Bend the metal fittings towards O side(inside) and then slide them in the direction of 2 to remove. 3Replace the filter element (disposable)
Note
Install the filter element within the frame securely. install the metal fittings for the filter element in their original positions Turn the side of oil filter that the metal fittings are installed downward and
install the filter in the unit.
- Cleaning the frame of the oil filter Tools to be prepared Protective goods such as a rubber glove Scrubbing brush or brush
Note:
Avoid using a metal scrubbing brush or brush since the aluminum materials could be damaged. Household neutral detergent or alkalescent detergent(for washing dishes or clothes)
Note:
If an alkaline detergent is used for cleaning. the part made of aluminum could discolor.
Make sure the filter element is removed
when cleaning the oil filter.
If the filter is not so dirty.(f the filter is cleaned once a week(once per 100 operating hours).) Wash the filter with water and the above-mentioned detergent using a scrubbing brush or brush, etc (It is more effective to wash the filter with lukewarm water.) If the filter is extremely dirty. Put the previously-mentioned detergent (its strength should be about 1/10 of the undiluted solution)into hot water whose temperature is 50C or less. and soak the filter for 1 hour or more before washing
Warning
To prevent your hand from burning, start washing the filter after the hot water gets
