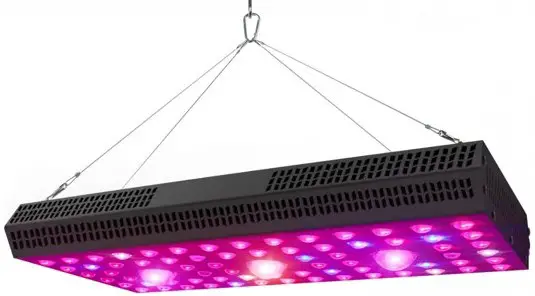

tancat YB-2000 Full Speetrum Grow Light User Manual
Switch instructions
VEG&BLOOM Button: Germination and flowering stage
STRONGER Button: Strengthen lighting to meet the growing needs of plants in the later stages
Application
Suitable for all stages of plant growth. Widely used in greenhouses plants, indoor gardens, water-soluble breeding, pipeline cultivation, planting potted plants, spraying plants, tissue culture and so on.
Specifications
| Product model | YB-2000 | YB-3000 | ||||
| Actual Power | 300W | 400W | ||||
| Input voltage | AC85-265V | AC85-265V | ||||
| working frequency | 50-60Hz | 50-60Hz | ||||
| working environment | -20-40 C 45%-95%RH | -20-40’C’, 45°/0-95WoRH | ||||
| LED quantity | 72LED+3COB | 96LED+4COB | ||||
| LED Power | 10W | 10W | ||||
| COB Power | 50W | 50W | ||||
| Spectral Range | 410nm-850nm | 410nm-850nm | ||||
| LED lifespan | 50,000 | 50,000 | ||||
| Product Size | 21.3*11*2.6inch | 21.7*12.6*2.6inch | ||||
| product weight | 13Ibs | 14Ibs | ||||
| Height (cm) | 12″ | 18″ | 24″ | 12″ | 18″ | 24″ |
| PAR(umol m-2s-1) | 1231 | 724 | 571 | 2510 | 1503 | 1186 |
How to use the light ?
Using Instructions
Germination Stage
Hanging at 30-40 inch 10h ON/ 14h OFF VEG&BLOOM ON/STRONGER OFF VEG&BLOOM ON/STRONGER OFF
Seedling Stage
Hanging at 30-40 inch12h ON/ 12h OFF VEG&BLOOM ON/STRONGER OFF
Veg Stage
Hanging at 24-30 inch 18h ON/ 6h OFF VEG&BLOOM ON/STRONGER ON
Bloom Stage
Hanging at 24-30 inch 12h ON/ 12h OFF VEG&BLOOM ON/STRONGER ON.
NOTE: In germination stage,you should turn on VEG&BLOOM button, in the flowering stage you should turn on both VEG&BLOOM and STRONG button together.
Warnings

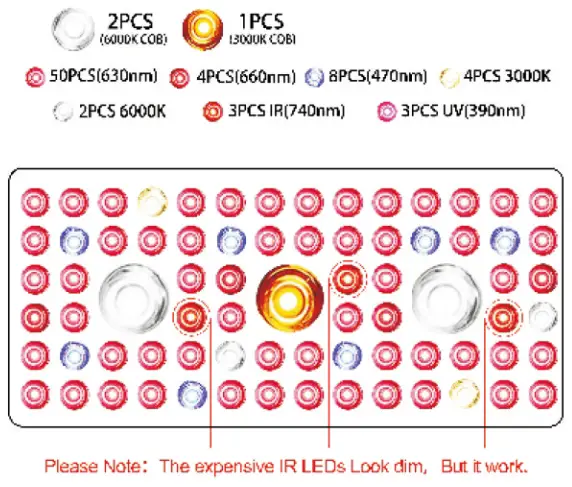

- The IR LEDS LOOK DIM BUT THEY ARE WORKING NORMALLY.
YI3-2000 Full Spectrum Grow Light
- Do not use the lights in dripping water or anywhere where they will get wet, water and electricity Ocan be a dangerous mixture.
- The working environment for the light is -20-40°C, 45%RH-90%RH.
- Please cut off the power when there is a lightning strike.
- In case of affect the lifespan,please avoid to install the light in a save place which contain any heat source, hot steam or corrosive gas.
- Please insure installing the light in a place can load 10 times weight.
Warranty
- The led grow light are guaranteed for a period of 3 years under normal use. The warranty includes parts for the light board and power supply.
- About 3 years. At the first year, we will ship free part for simply replacement (e.g: power supply or light board replacement). If whole fixture needs to be repaired, the customer should pay shipping fee to the repair center or the factory. After repaired we will ship back the light to customer. And we will refund the shipping fee when customer makes a new order. At the second year, we cover first year service except shipping from customer to factory. At third year, customer pays inbound and outboard shipping cost for repair. During the second and third year, we do not provide alternative light when fixture is in repair processing.
