INSTALLATION
- Take out of the whole lamp from package, confine the installation location and wire length.
- Use the card to measure hole position correctly and dnl14 holes of 8mm w,tll depth 60mm on the wall
- Fix expansion screw Into the holes with a spare space,then fix the solar panel & LED lamps.
- 0pen the silicon cover at the bottom of the lamp.connect the wire from tile solar panel to the lamp and screw it tightly.
- 5.Adjust the solar panel and LED lamp to the right position according focal latitude and lighting direclion.
NITICE AND WARNING
- This is a solar powered lamp, please install it in a location where can gel enough sunshine.
- Please note the lighting time depends on sunshine duration & weather.
- Built.in intelhgent IC with overcharge, over,(jischarge and over-voltage proteclioo.
- The lamp Is equipped with an Internal battery pad<, whloh Is replaceable. If any need, please contact seller for correct new battery pack.
- Non-professionals please do not disassembJe the lamp.
- Please do not dispose the ba«ery with household garbage to avOid expl
SPECIFICATION
| SKU | 8674 |
| Power/Lumen | 10W/1100LM |
| LED Type | SMD2835’55PCS |
| Battery | 3.7V/7200mAh Lithium battery.replaceable |
| Solar Panel Detection Nea | 6.5Wp+4.5Wp Mono-Crystalline Silicon <Sm (Radar Sensor) |
| Beam Angle | 90′ |
| Lffespan | 35000hrs |
| IP Class | IP65 |
| Wire length | 3Melers |
| USS Discharge | 5.0V/1.0A |
| DC-Micro Charge | 5.0V/1.0A |
FEATURES
- Solar Powered
- Light on/olf Automadcally
- 4 Working Modes
- Battery Replaceable
- ZERO Electricity Co’st
- ConstaRadar Inntd Luicgthivte M/ ode
- IP65 Waterproof
- PowerBank

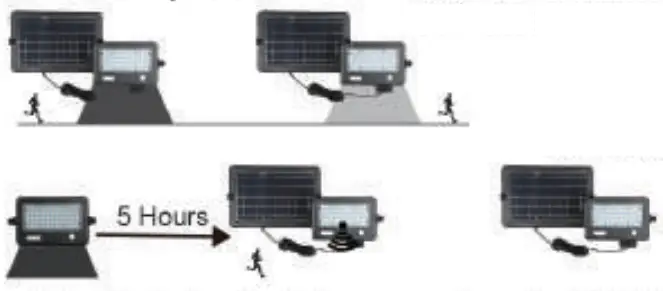

WORKING MODE
Acoordlng to the connect.ion of lhe lamp body with solar panel, the tamp will automatically recognize the Sensor mode &Constant lighting mode & Power bank function Under this work model,the Radar sensor &Photocell induction will not work.
- Mode A 1: Press @ 1st time to 50% Constant Btightness
- Mode A2: Press@ 2nd time to 100% Constant Brightness
- Mode A3; Press 3rdturn off
Under this work mode.the lamp will automatically tum on al night turn off at day time
- Mode B1: Automatically turns on for brightness(11001m) when motlonis detected in range 8m and seconds of no motion.
- Mode B2: Automatically turns on and remain 100% brightness(1100lm) for 5hours. After Shours or when battery capacity < 30% rt turns to
- Mode B3: Press 3rd time.tum off

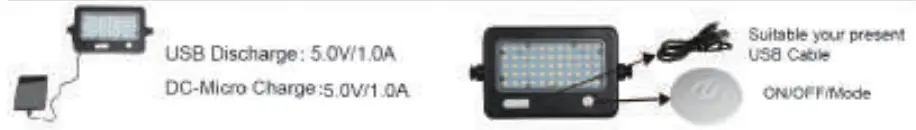

ADITIONAL POWER BANK FUNCTION
